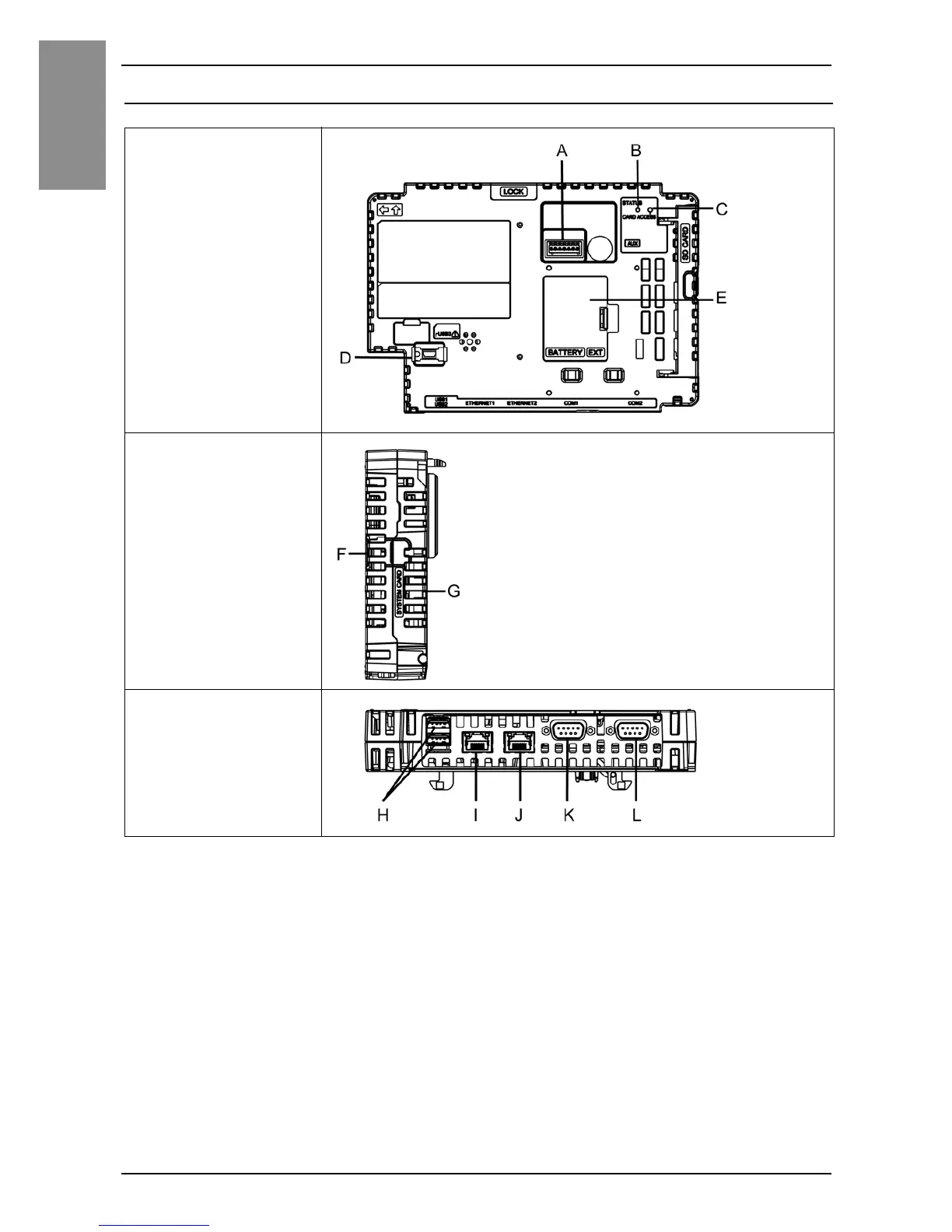

Part Numbers and Functions
SP-5B10
A: Auxiliary Output/Speaker Output Interface (AUX)
B: Status LED (See page 12)
C: Card Access LED (See page 12)
D: USB (mini-B) Interface
E: Expansion Unit Interface Cover (EXT)
F: Storage Card Cover
G: System Card Cover
H: USB (Type A) Interface
I: Ethernet Interface (Ethernet1)
*1
J: Ethernet Interface (Ethernet2)
*1
K: Serial Interface (COM1)
L: Serial Interface (COM2)
*1 For 1000BASE-T communication, use twisted pair Ethernet cables with a rating of
category 5 or higher.
Front
Right
Bottom
