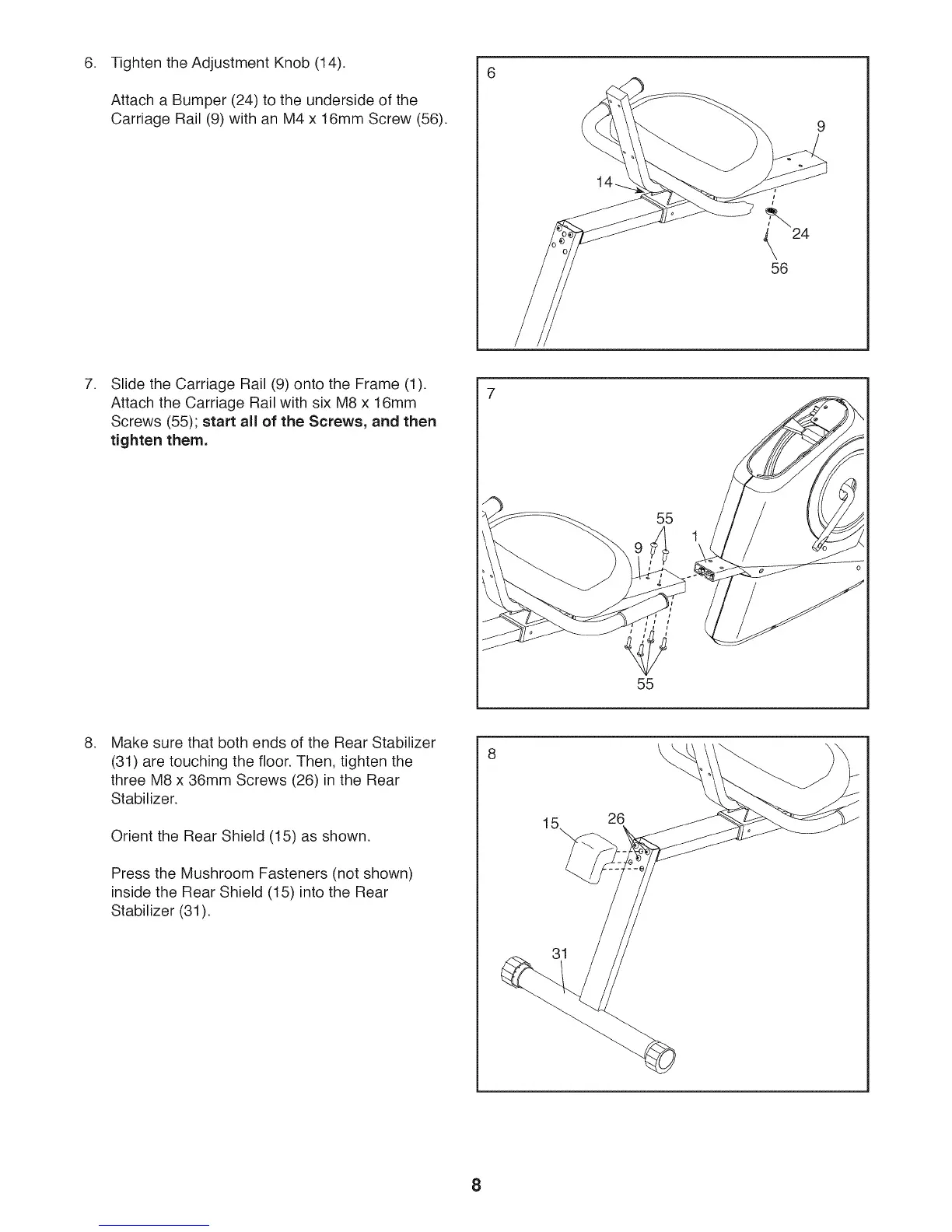

6. 6
Tighten the Adjustment Knob (14).
Attach a Bumper (24) to the underside of the
Carriage Rail (9) with an M4 x 16mm Screw (56).
I
24
56
.
Slide the Carriage Rail (9) onto the Frame (1).
Attach the Carriage Rail with six M8 x 16mm
Screws (55); start all of the Screws, and then
tighten them.
55
. Make sure that both ends of the Rear Stabilizer
(31) are touching the floor. Then, tighten the
three M8 x 36mm Screws (26) in the Rear
Stabilizer.
Orient the Rear Shield (15) as shown.
Press the Mushroom Fasteners (not shown)
inside the Rear Shield (15) into the Rear
Stabilizer (31).
15
26
8
