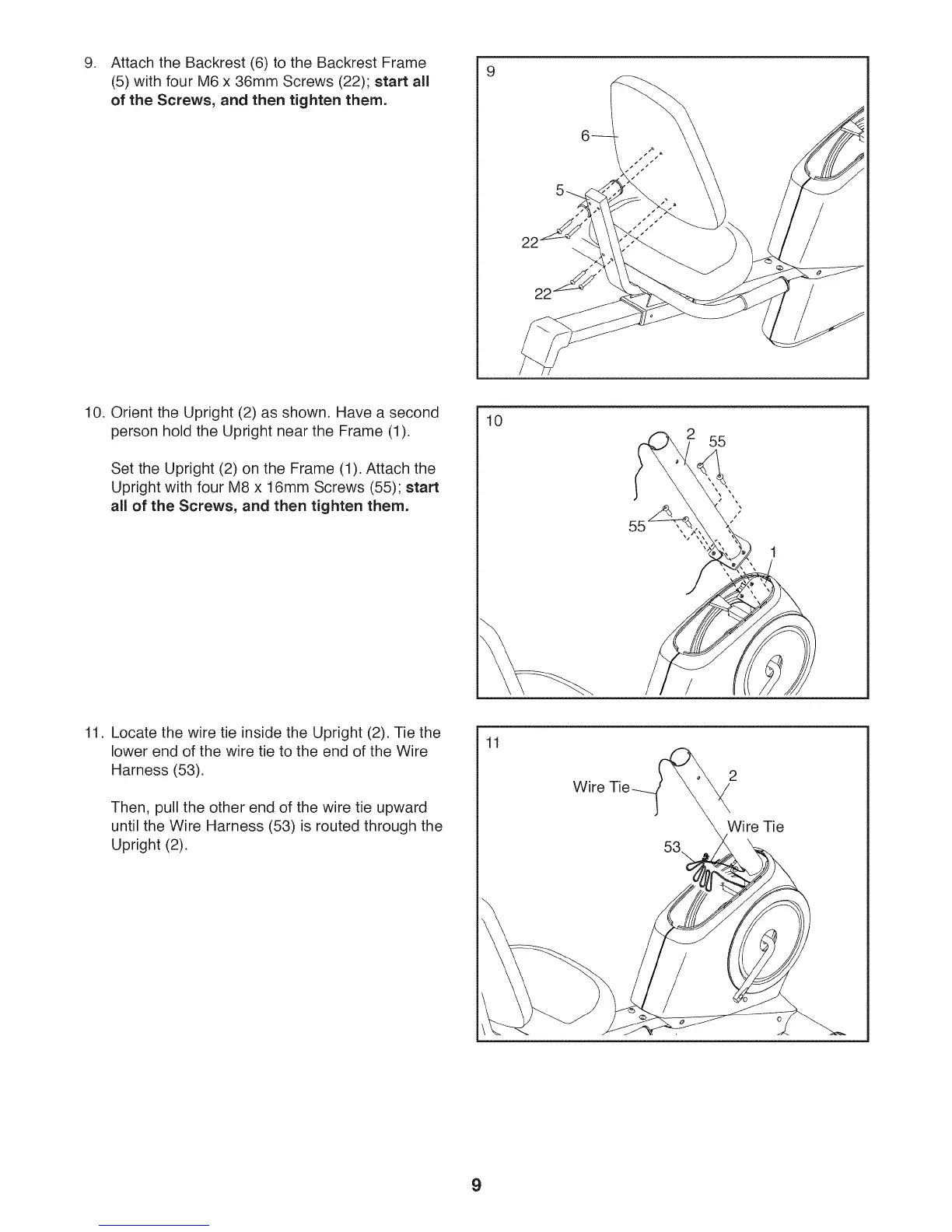

Attach the Backrest (6) to the Backrest Frame
(5) with four M6 x 36mm Screws (22); start all
of the Screws, and then tighten them.
10. Orient the Upright (2) as shown. Have a second
person hold the Upright near the Frame (1).
Set the Upright (2) on the Frame (1). Attach the
Upright with four M8 x 16mm Screws (55); start
all of the Screws, and then tighten them.
10
55
/
11
11. Locate the wire tie inside the Upright (2). Tie the
lower end of the wire tie to the end of the Wire
Harness (53).
Then, pull the other end of the wire tie upward
until the Wire Harness (53) is routed through the
Upright (2).
Wirq
53
Wire Tie
