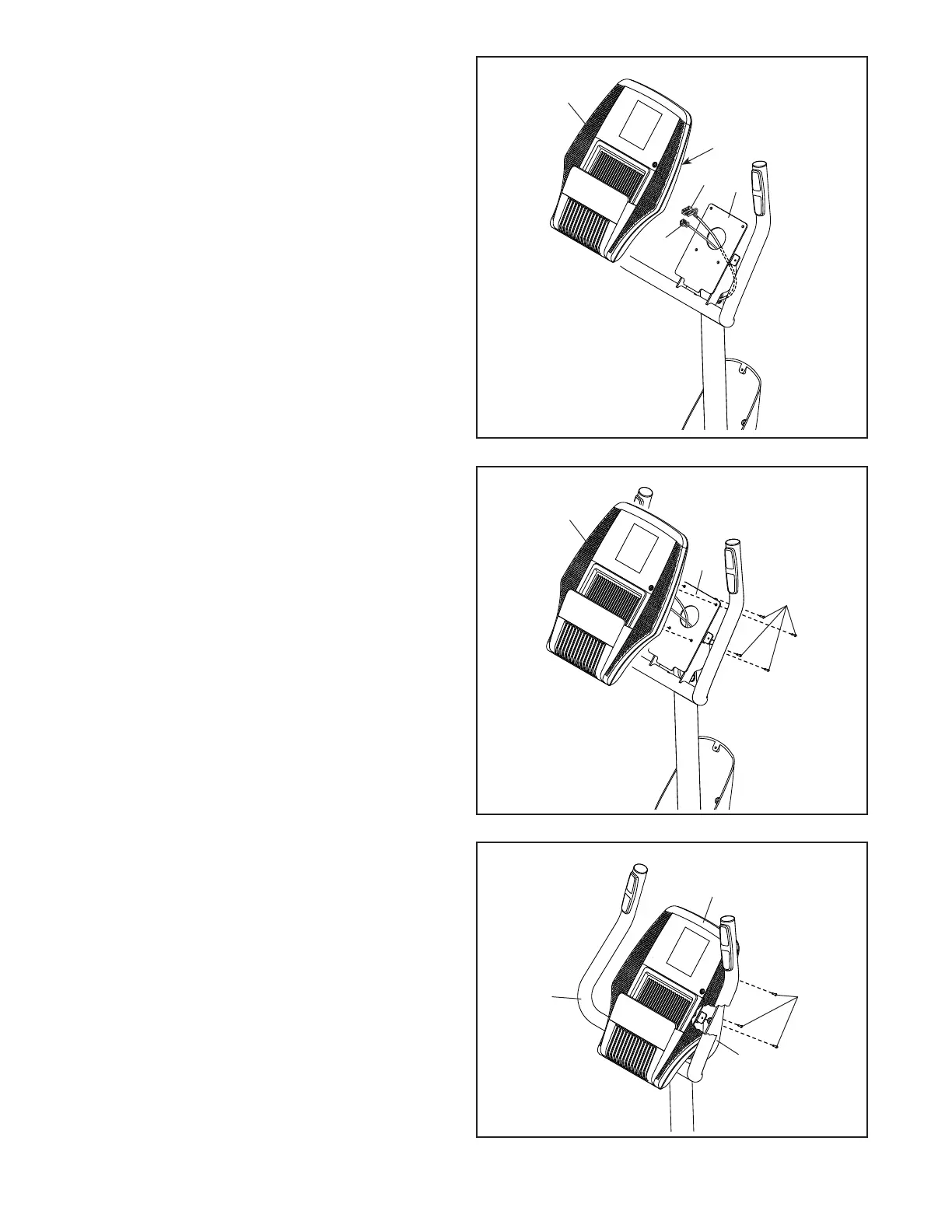

10. Untie and discard the wire tie on the Main Wire
(25). Route the Main Wire upward through the
Handlebar (4) as shown.
While a second person holds the Console (7)
near the Handlebar (4), connect the wires (H) on
the Console to the Main Wire (25) and the Pulse
Wire (23).
Then, insert the excess wire into the
Handlebar (4).
11. Tip: Avoid pinching the wires. Attach the
Console (7) to the Handlebar (4) with four
M4 x 16mm Screws (2); start all the Screws,
and then tighten them.
2
7
4
Avoid pinching
the wires
12. Slide the Console Cover (3) upward to the
Handlebar (4). Attach the Console Cover to the
Handlebar and to the Console (7) with three
M4 x 16mm Screws (2); start all the Screws,
and then tighten them.
