6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.

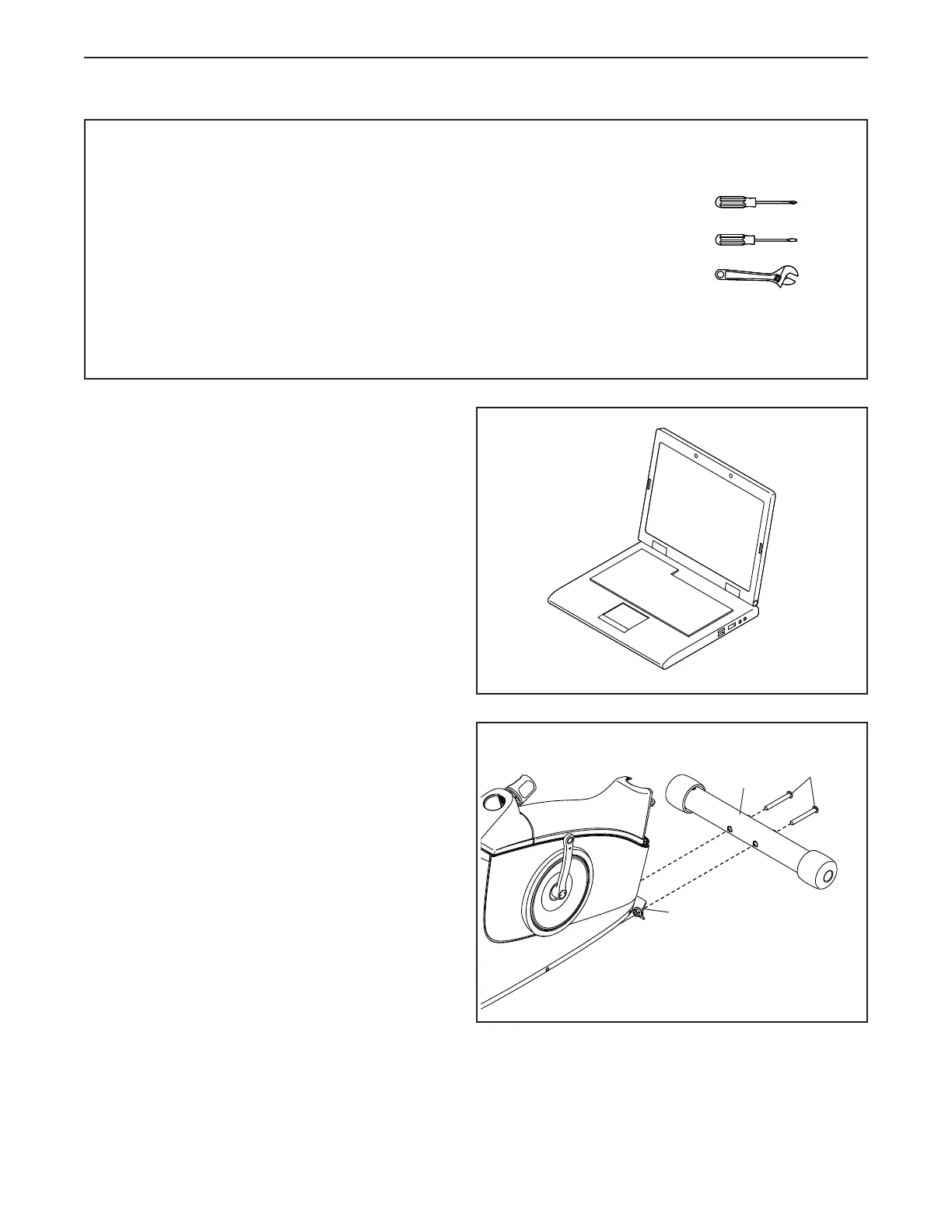

• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one standard screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
2
2. If there are shipping tubes (not shown) attached
to the front of the Frame (50), remove and
discard the shipping screws and the shipping
tubes.
Next, set a sturdy piece of packing mate-
rial under the front of the Frame (50). Have a
second person hold the Frame to prevent it
from tipping while you complete this step.
Attach the Front Stabilizer (36) to the Frame
(50) with two M10 x 80mm Screws (46). Then,
remove the packing material from under the
Frame.
36
46
50
To Next Page
