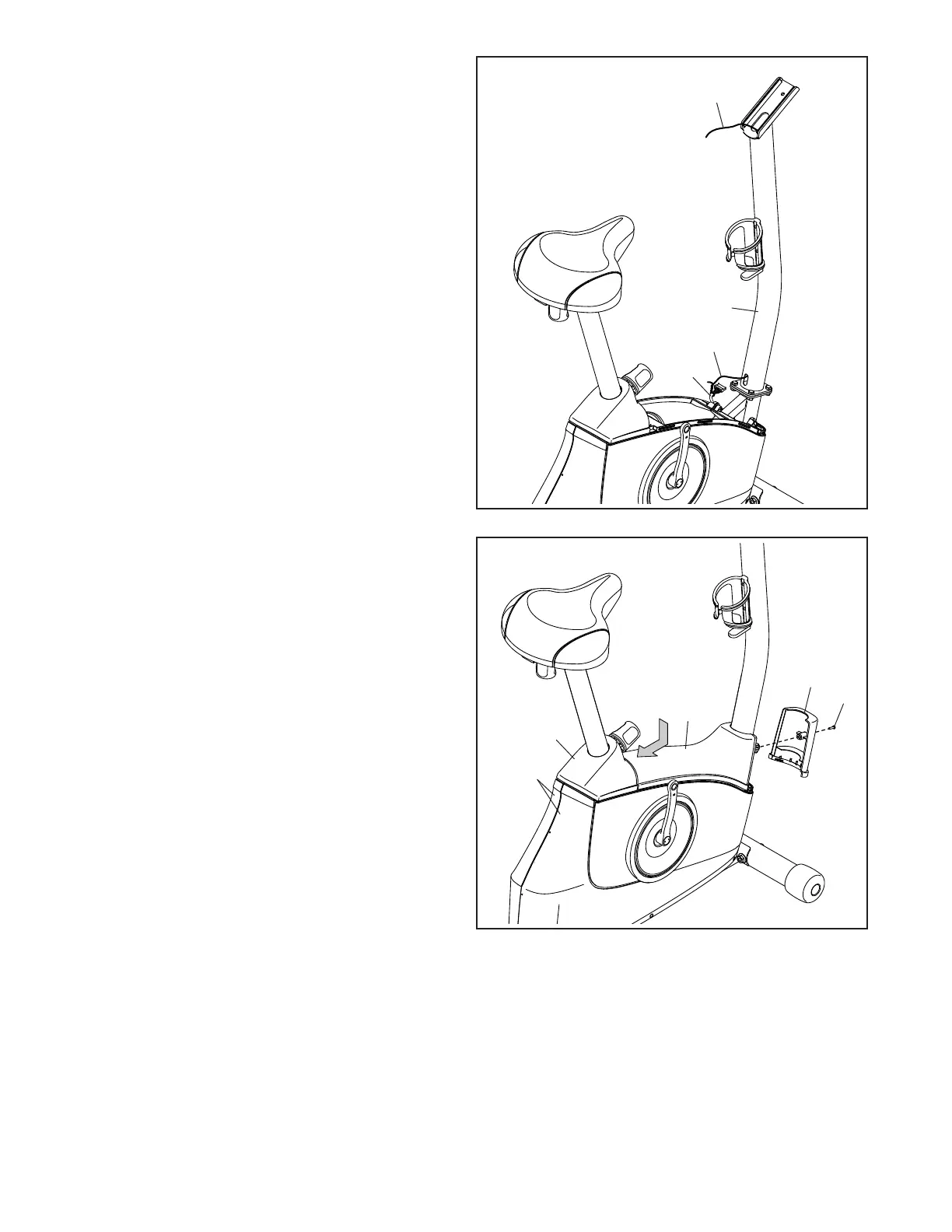

7. Locate the lower end of the wire tie (C) in the
Upright (27). Tie the wire tie to the Main Wire
(25). Then, pull the upper end of the wire tie until
the Main Wire is routed through the Upright.
Tip: To prevent the Main Wire (25) from falling
into the Upright (27), secure the Main Wire
with the wire tie (C).
27
25
C
C
8
8. Set the Shield Cover (26) on the Left and Right
Shields (37, 58), and slide it backward under the
edge of the Seat Post Cover (22). Next, press
the Shield Cover downward until it snaps into
place.
Then, attach the Upright Cover (9) with an
M4 x 20mm Screw (2).
26
9
2
22
37, 58
