7
4

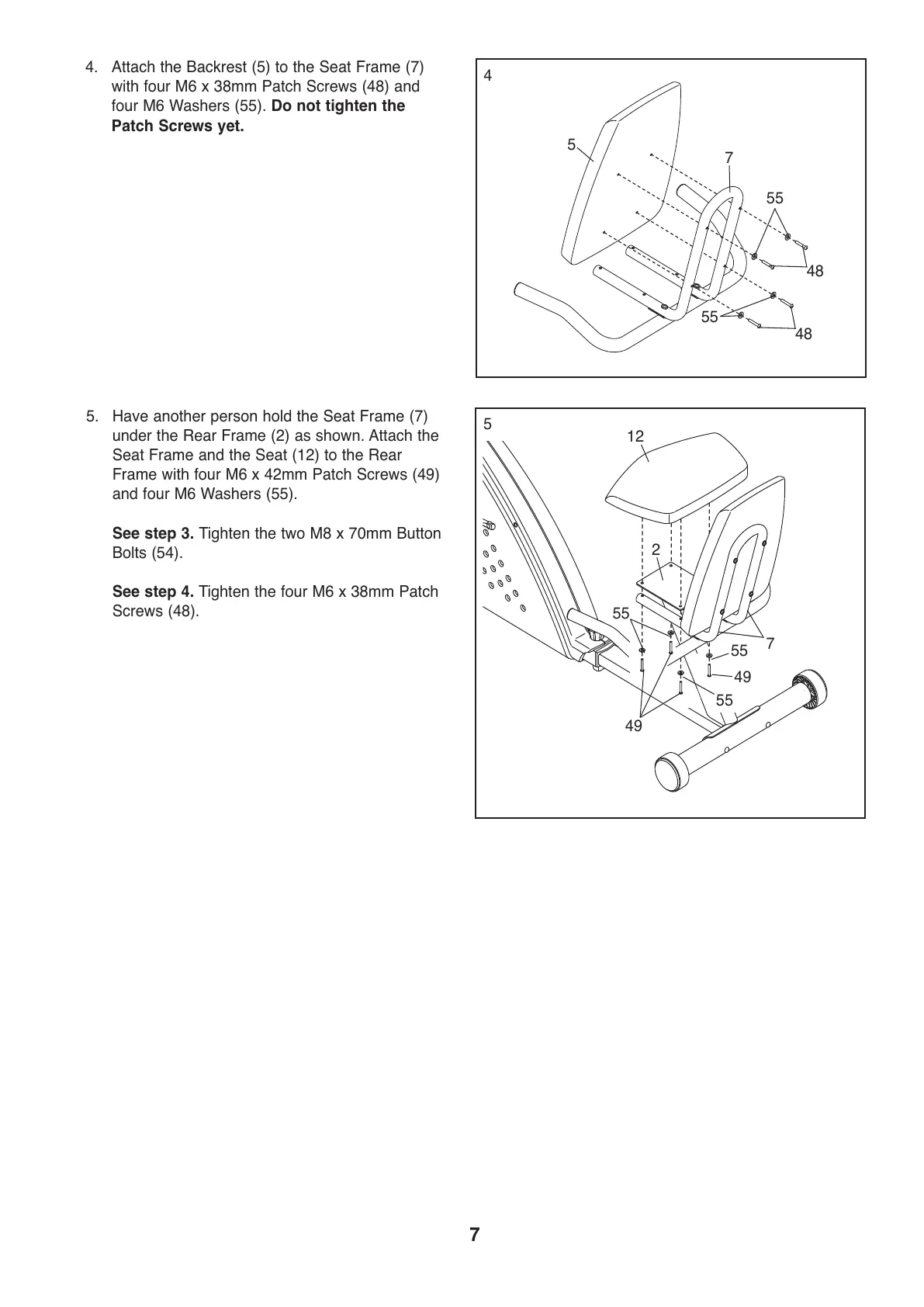

. Attach the Backrest (5) to the Seat Frame (7)
with four M6 x 38mm Patch Screws (48) and
four M6 Washers (55). Do not tighten the
Patch Screws yet.
4
5
7
55
55
48
48
12
55
55
55
7
5
49
2
49
5. Have another person hold the Seat Frame (7)
under the Rear Frame (2) as shown. Attach the
Seat Frame and the Seat (12) to the Rear
Frame with four M6 x 42mm Patch Screws (49)
and four M6 Washers (55).
See step 3. Tighten the two M8 x 70mm Button
Bolts (54).
See step 4. Tighten the four M6 x 38mm Patch
Screws (48).
To Next Page
