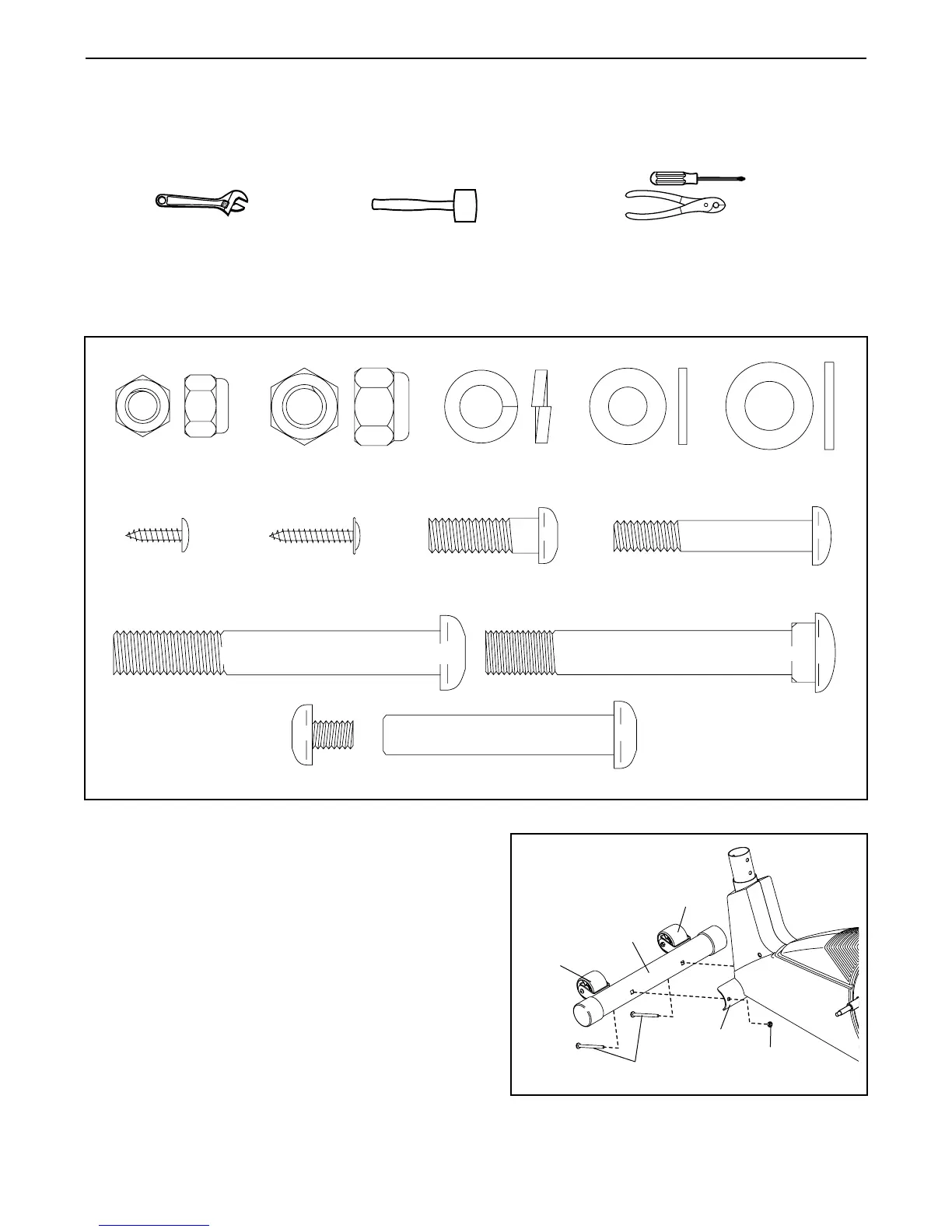

Use the chart below to identify the small parts used in assembly. The number in parenthesis below each part
refers to the key number of the part, from the PART LIST on page 14. The number after the dash indicates the
quantity needed for assembly. Note: Some parts may have been pre-attached for shipping. If a part is not
in the parts bag, check to see if it has been pre-attached.
M10 x 74mm Button Bolt (67)–2
M8 x 45mm Bolt (50)–4
M4 x 12mm
Screw (42)–4
M8 Nylon
Locknut (38)–6
M10 Nylon
Locknut (33)–6
M10 Split
Washer (59)–2
M8.5
Washer (35)–2
M10.5
Washer (55)–2
M8 x 25mm Button
Screw (56)–2
M10 x 75mm Carriage Bolt (34)–4
M4 x 19mm Flange
Screw (36)–6
Pedal Arm Bolt Set (40)–2
ASSEMBLY
Assembly requires two people. Place all parts of the elliptical trainer in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included allen wrench, assembly requires a phillips screwdriver , two adjustable
spanners , a rubber mallet , and a pair of pliers .
1. Identify the Front Stabiliser (10). Whilst another per-
son lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with two M10 x 75mm
Carriage Bolts (34) and two M10 Nylon Locknuts
(33). Make sure that the Front Stabiliser is turned
so the Wheels (22) are not touching the floor.
1
1
10
22
22
33
34
