5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own phillips screwdriver
, adjustable spanner ,
and rubber mallet .

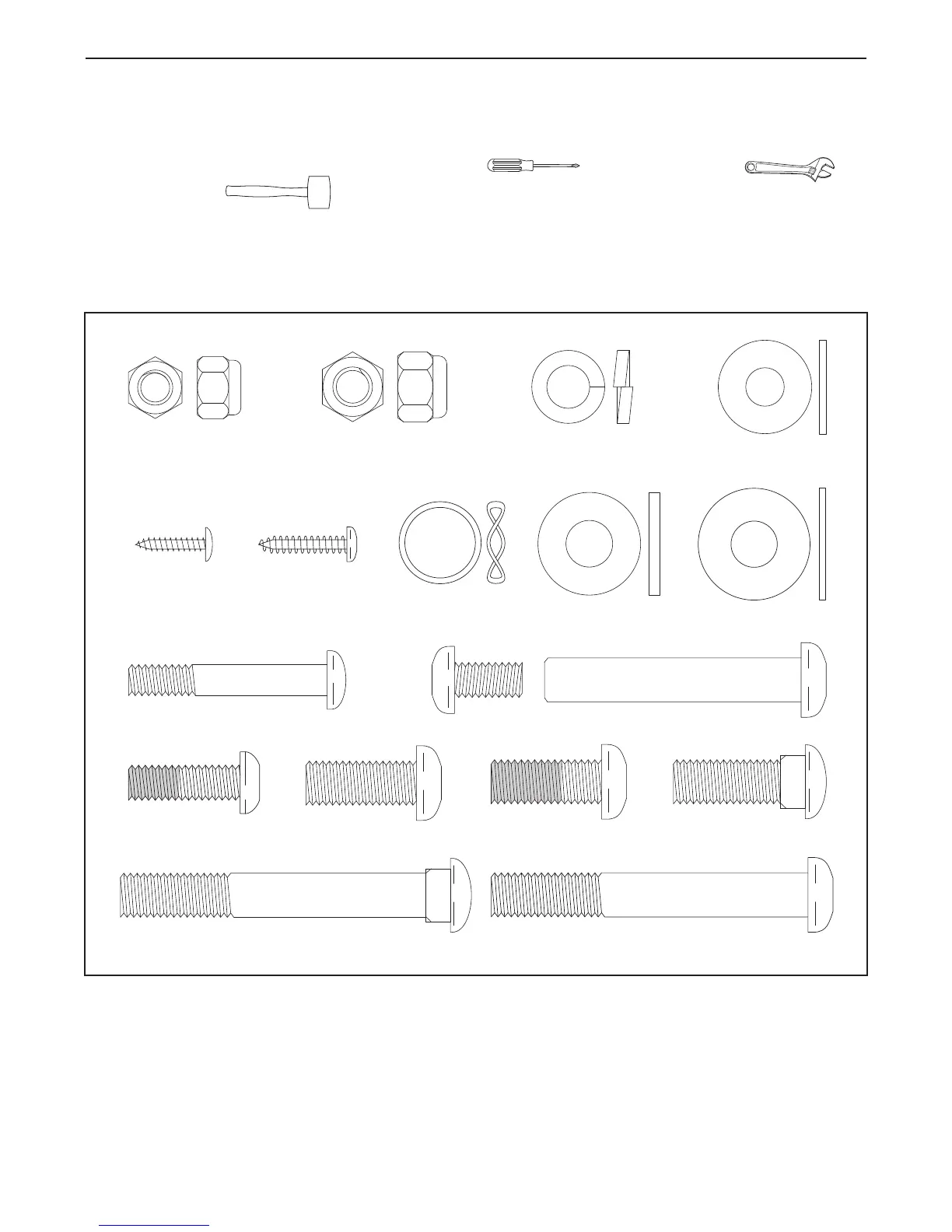

Use the drawings below to identify the small parts used for assembly. The number in parenthesis below each
drawing is the key number of the part, from the PART LIST on page 22. The number following the key number is
the quantity needed for assembly.
Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled.
M4 x 16mm
Screw (52)–4
M10
Washer (78)–2
M10 Split
Washer (59)–7
M10 Nylon
Locknut (33)–6
M10 x 30mm
Carriage Bolt (80)–2
M10 Bolt Set (74)–2
Handlebar
Washer (55)–2
Spring Bracket
Washer (35)–2
M8 Nylon
Locknut (38)–4
M8 x 45mm Button Bolt (50)–4
M10 x 27mm
Patch Screw (40)–2
M10 x 75mm Carriage Bolt (34)–4
Wave Washer
(43)–2
M10 x 72mm Button Bolt (84)–2
M8 x 25mm Patch
Screw (56)–2
M4 x 19mm
Screw (86)–2
M10 x 25mm
Button Screw (67)–3
