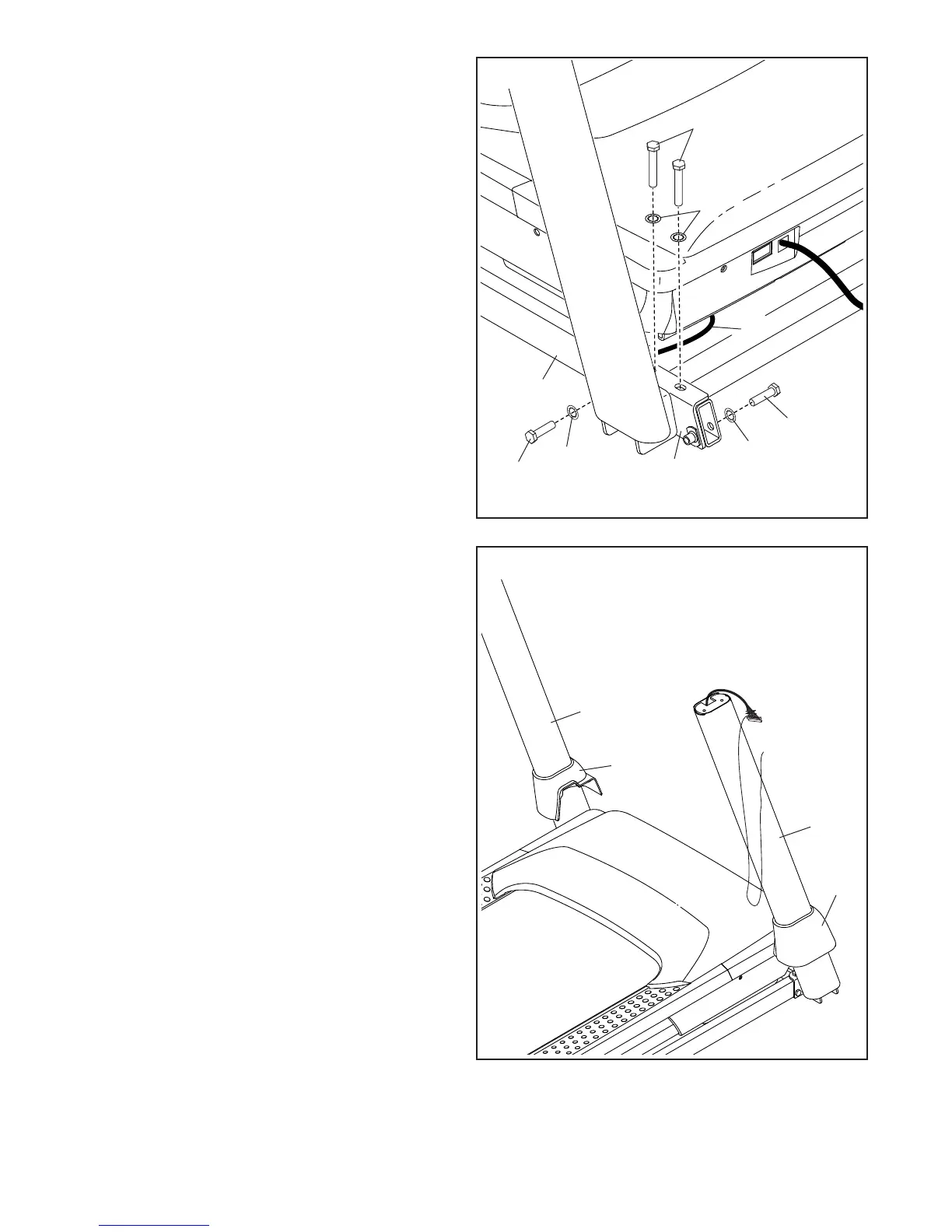

5. Identify the Left and Right Base Covers (82, 83).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (89, 90) as shown.
83
90
82
89
5
4
51
62
13
85
13
90
7
13
81
4. Hold the Right Upright (90) against the Base
(85). Make sure not to pinch the Upright Wire
(81).
Attach the Right Upright (90) with two 3/8" x
2 3/8" Screws (7), a 3/8" x 1 1/4" Screw (51),
a 3/8" x 1 3/4" Screw (62), and four 3/8" Star
Washers (13) as shown; do not fully tighten
the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
To Next Page
