19. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is
used to adjust the walking belt (see pages 26 and 27).

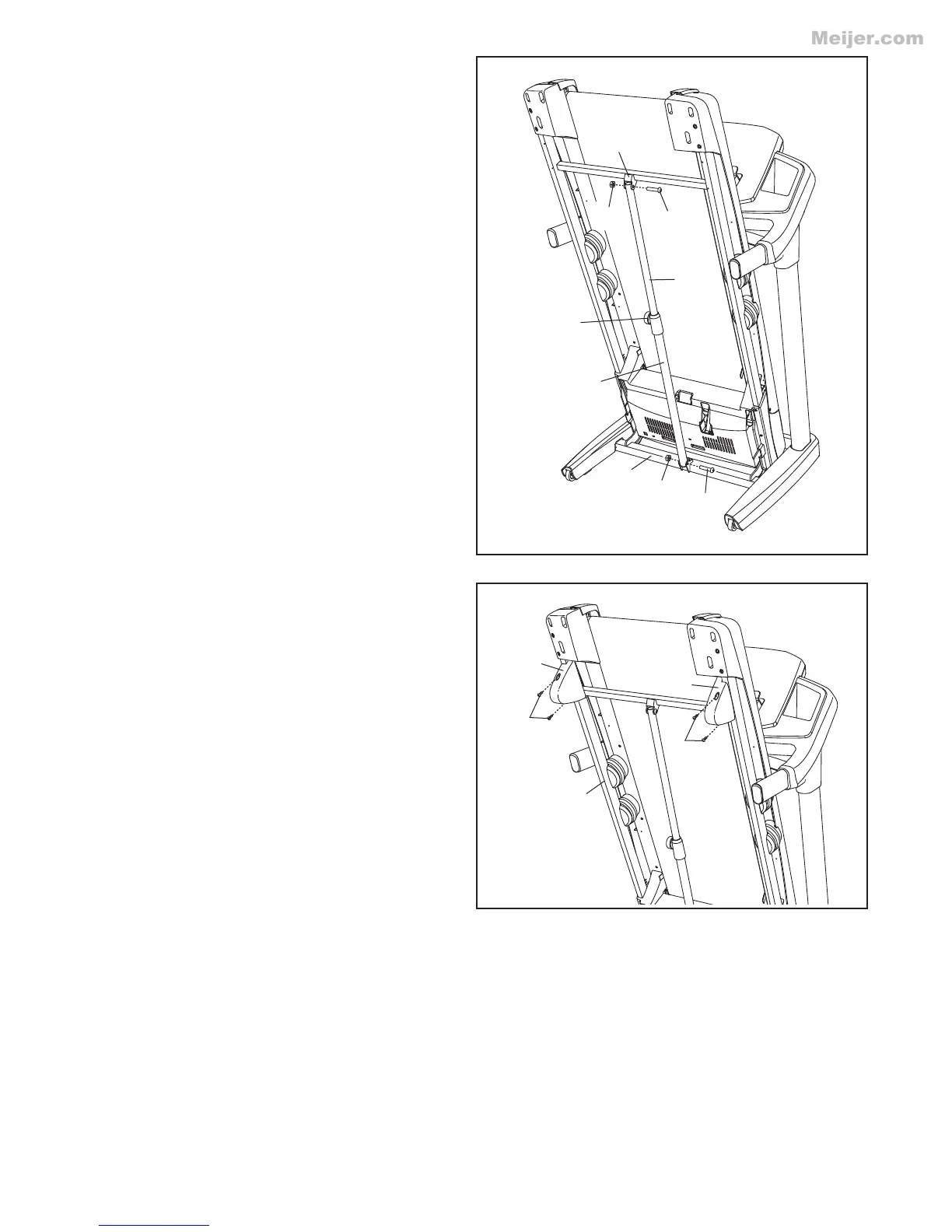

18. Attach the Rear Feet (57) to the Frame (56) as
shown with four #8 x 3/4" Screws (2).
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 24).
18
57
2
2
57
56
17. IMPORTANT: Before you begin this step,
make sure that you have read and followed
all the instructions in step 16.
Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
step 18 is completed.
Orient the Storage Latch (53) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (53) to
the Base (94) with a 3/8" x 2" Bolt (3) and a 3/8"
Nut (12).
Attach the upper end of the Storage Latch (53)
to the bracket on the Frame (56) with a 3/8" x
1 3/4" Bolt (6) and a 3/8" Nut (12).
17
53
Large
Barrel
56
6
Latch
Knob
12
3
94
12
To Next Page
