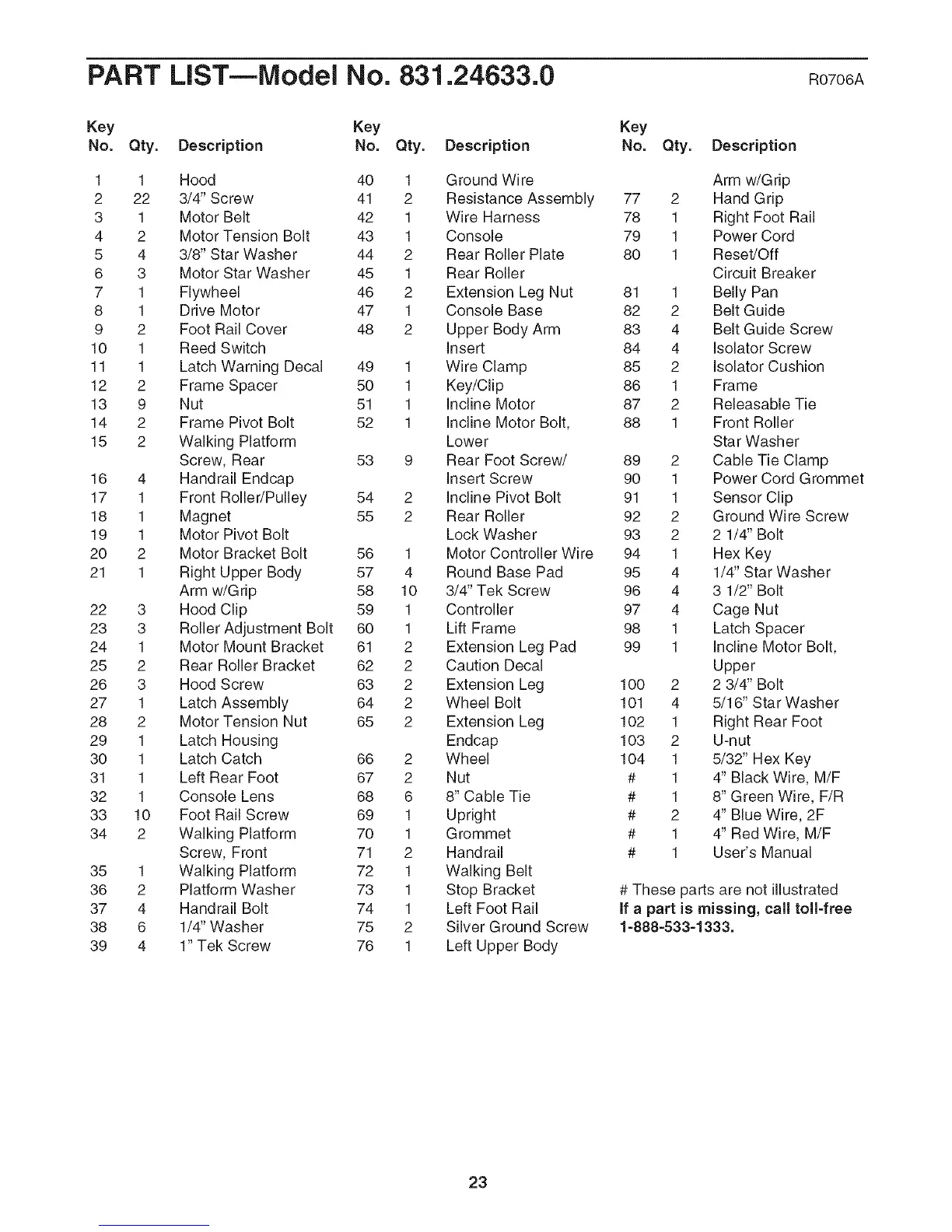

PART LIST--Model No. 831.24633.0 R0706A
Key Key Key
No. Qty. Description No. Qty. Description No. Qty. Description
1 1 Hood 40 1 Ground Wire
2 22 3/4" Screw 41 2 Resistance Assembly
3 1 Motor Belt 42 1 Wire Harness
4 2 Motor Tension Bolt 43 1 Console
5 4 3/8" Star Washer 44 2 Rear Roller Plate
6 3 Motor Star Washer 45 1 Rear Roller
7 1 Flywheel 46 2 Extension Leg Nut
8 1 Drive Motor 47 1 Console Base
9 2 Foot Rail Cover 48 2 Upper Body Arm
10 1 Reed Switch Insert
11 1 Latch Warning Decal 49 1 Wire Clamp
12 2 Frame Spacer 50 1 Key/Clip
13 9 Nut 51 1 Incline Motor
14 2 Frame Pivot Bolt 52 1 Incline Motor Bolt,
15 2 Walking Platform Lower
Screw, Rear 53 9 Rear Foot Screw/
16 4 Handrail Endcap Insert Screw
17 1 Front Roller/Pulley 54 2 Incline Pivot Bolt
18 1 Magnet 55 2 Rear Roller
19 1 Motor Pivot Bolt Lock Washer
20 2 Motor Bracket Bolt 56 1 Motor Controller Wire
21 1 Right Upper Body 57 4 Round Base Pad
Arm w/Grip 58 10 3/4" Tek Screw
22 3 Hood Clip 59 1 Controller
23 3 Roller Adjustment Bolt 60 1 Lift Frame
24 1 Motor Mount Bracket 61 2 Extension Leg Pad
25 2 Rear Roller Bracket 62 2 Caution Decal
26 3 Hood Screw 63 2 Extension Leg
27 1 Latch Assembly 64 2 Wheel Bolt
28 2 Motor Tension Nut 65 2 Extension Leg
29 1 Latch Housing Endcap
30 1 Latch Catch 66 2 Wheel
31 1 Left Rear Foot 67 2 Nut
32 1 Console Lens 68 6 8" Cable Tie
33 10 Foot Rail Screw 69 1 Upright
34 2 Walking Platform 70 1 Grommet
Screw, Front 71 2 Handrail
35 1 Walking Platform 72 1 Walking Belt
36 2 Platform Washer 73 1 Stop Bracket
37 4 Handrail Bolt 74 1 Left Foot Rail
38 6 1/4" Washer 75 2 Silver Ground Screw
39 4 1" Tek Screw 76 1 Left Upper Body
Arm w/Grip
77 2 Hand Grip
78 1 Right Foot Rail
79 1 Power Cord
80 1 Reset/Off
Circuit Breaker
81 1 Belly Pan
82 2 Belt Guide
83 4 Belt Guide Screw
84 4 Isolator Screw
85 2 Isolator Cushion
86 1 Frame
87 2 Releasable Tie
88 1 Front Roller
Star Washer
89 2 Cable Tie Clamp
90 1 Power Cord Grommet
91 1 Sensor Clip
92 2 Ground Wire Screw
93 2 2 1/4" Bolt
94 1 Hex Key
95 4 1/4" Star Washer
96 4 3 1/2" Bolt
97 4 Cage Nut
98 1 Latch Spacer
99 1 Incline Motor Bolt,
Upper
100 2 2 3/4" Bolt
101 4 5/16" Star Washer
102 1 Right Rear Foot
103 2 U-nut
104 1 5/32" Hex Key
# 1 4" Black Wire, M/F
# 1 8" Green Wire, F/R
# 2 4" Blue Wire, 2F
# 1 4" Red Wire, M/F
# 1 User's Manual
# These parts are not illustrated
if a part is missing, call toll-free
1=888=533=1333.
23
