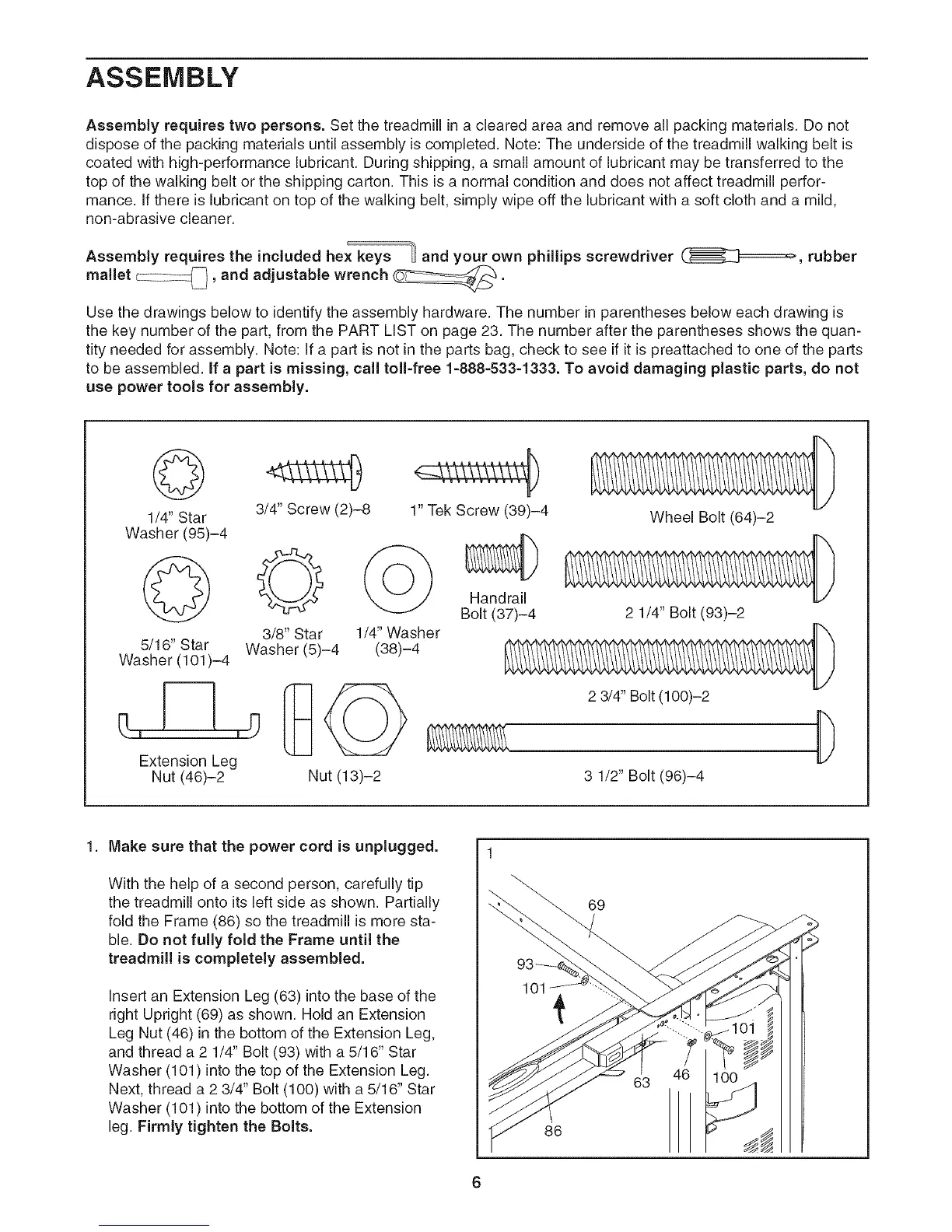

ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys _ and your own phillips screwdriver (_======_, rubber
mallet c::::z::_, and adjustable wrench _.
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST on page 23. The number after the parentheses shows the quan-
tity needed for assembly. Note: If a part is not in the parts bag, check to see ifit is preattached to one of the parts
to be assembled, if a part is missing, call toll-free 1-888-533-1333. To avoid damaging plastic parts, do not
use power tools for assembly.
3/4" Screw (2)-8
1/4" Star
Washer (95)-4
5/16" Star Washer (5)-4
Washer (101 )-4
Extension Leg
Nut (46)-2 Nut (13)-2
1" Tek Screw (39)-4
(_ Handrai_
Bolt (37)-4
3/8" Star 1/4" Washer
(38)-4
Wheel Bolt (64)-2
2 1/4" Bolt (93)-2
2 3/4" Bolt (100)-2
, D
3 1/2" Bolt (96)-4
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side as shown. Partially
fold the Frame (86) so the treadmill is more sta-
ble. Do not fully fold the Frame until the
treadmill is completely assembled.
Insert an Extension Leg (63) into the base of the
right Upright (69) as shown. Hold an Extension
Leg Nut (46) in the bottom of the Extension Leg,
and thread a 2 1/4" Bolt (93) with a 5/16" Star
Washer (101) into the top of the Extension Leg.
Next, thread a 2 3/4" Bolt (100) with a 5/16" Star
Washer (101) into the bottom of the Extension
leg. Firmly tighten the Bolts.
101
69
86
46
63
