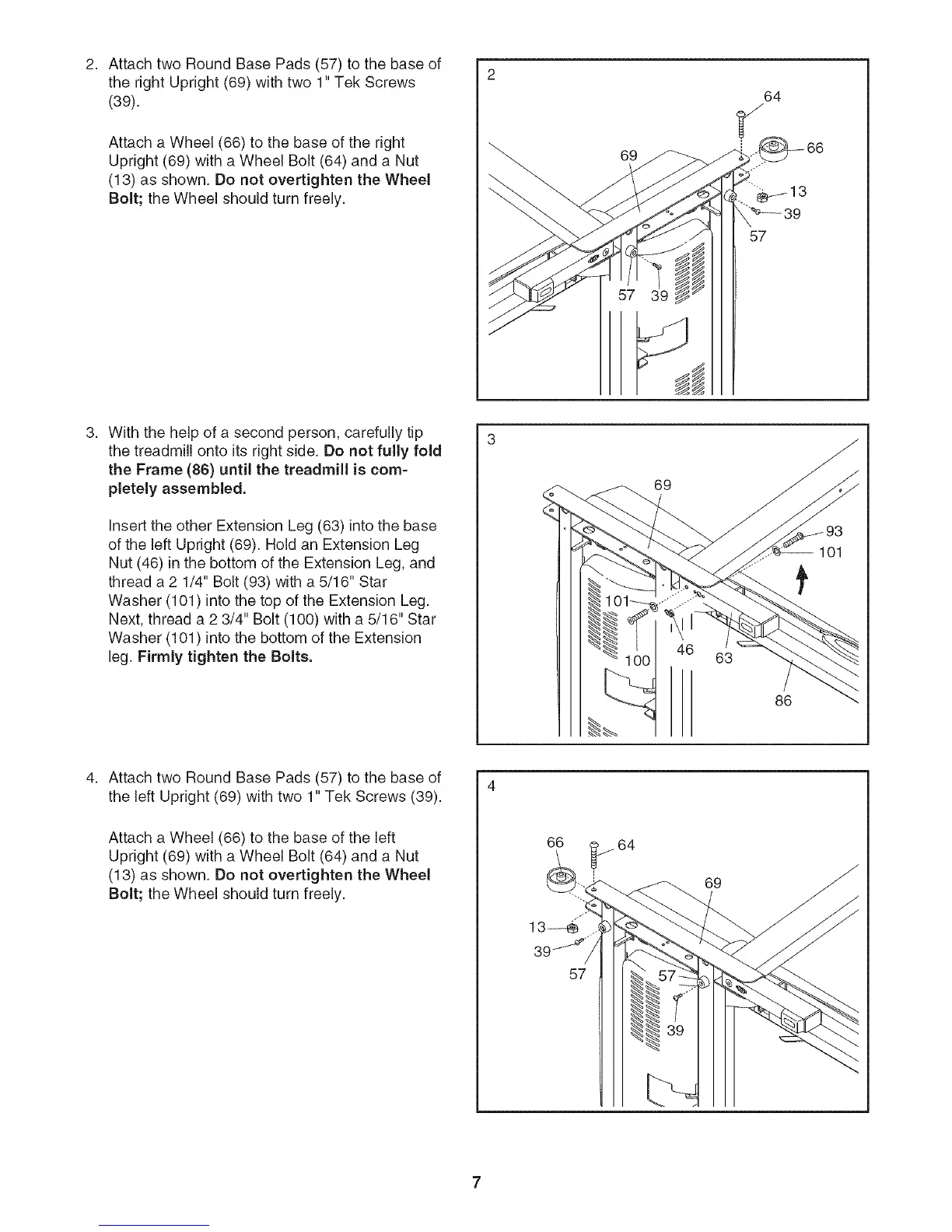

2. 2
AttachtwoRoundBasePads(57)tothebaseof
therightUpright(69)withtwo1"TekScrews
(39).
Attacha Wheel(66)tothebaseoftheright
Upright(69)witha WheelBolt(64)anda Nut
(13)asshown.DonotovertightentheWheel
Bolt;theWheelshouldturnfreely.
69
64
Withthehelpofa secondperson,carefullytip
thetreadmillontoitsrightside.Donotfullyfold
theFrame(86) until the treadmill is com-
pletely assembled.
Insert the other Extension Leg (63) intothe base
of the left Upright (69). Hold an Extension Leg
Nut (46) in the bottom of the Extension Leg, and
thread a 2 1/4" Bolt (93) with a 5/16" Star
Washer (101) intothe top of the Extension Leg.
Next, thread a 2 3/4" Bolt (100) with a 5/16" Star
Washer (101) intothe bottom of the Extension
leg. Firmly tighten the Bolts.
69
46
63
86
101
Attach two Round Base Pads (57) to the base of
the left Upright (69) with two 1" Tek Screws (39).
Attach a Wheel (66) to the base of the left
Upright (69) with a Wheel Bolt (64) and a Nut
(13) as shown. Do not overtighten the Wheel
Bolt; the Wheel should turn freely.
57
69
