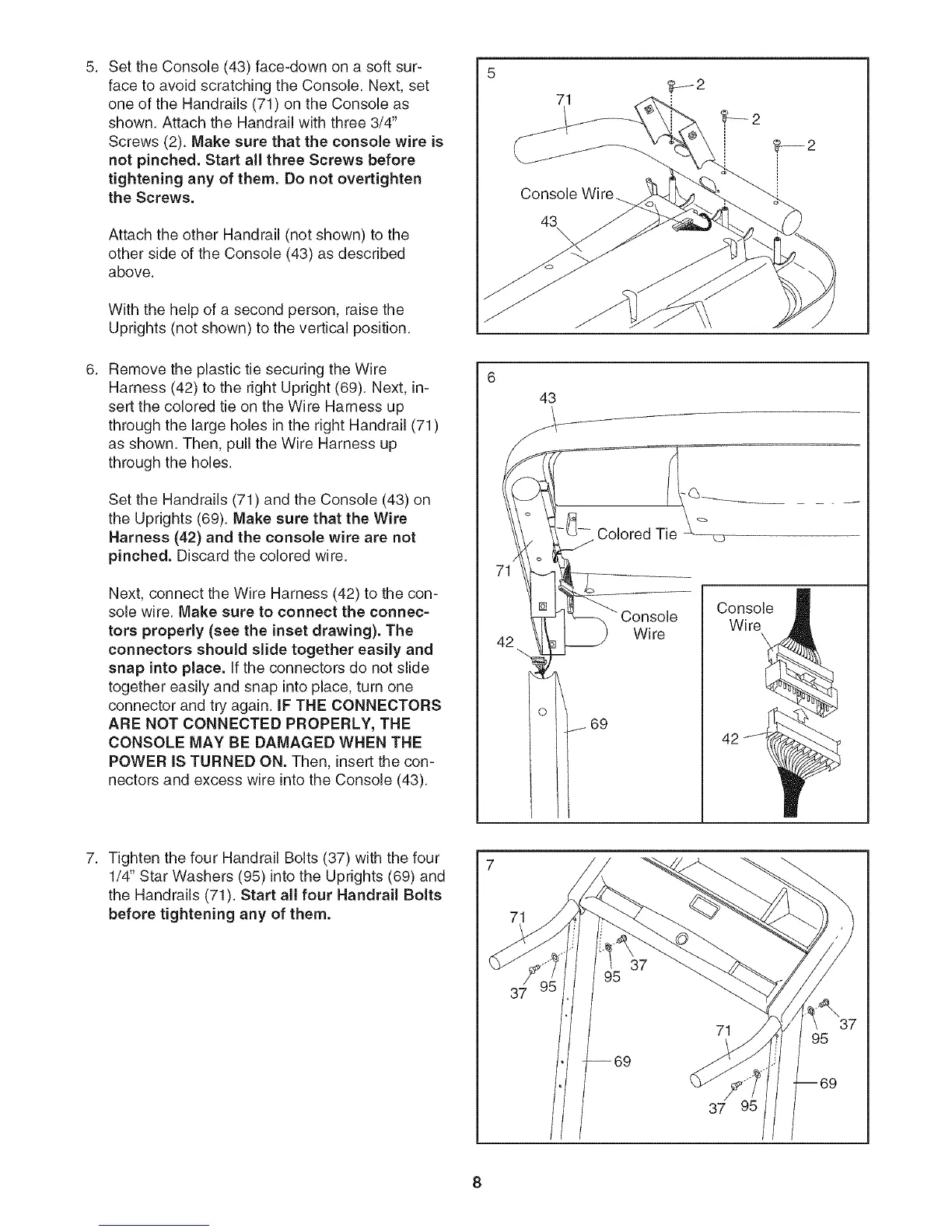

SettheConsole(43)face-downona softsur-
facetoavoidscratchingtheConsole.Next,set
oneoftheHandrails(71)ontheConsoleas
shown.AttachtheHandrailwiththree3/4"
Screws(2).Makesurethattheconsole wire is
not pinched. Start all three Screws before
tightening any of them. Do not overtighten
the Screws.
Attach the other Handrail (not shown) to the
other side of the Console (43) as described
above.
With the help of a second person, raise the
Uprights (not shown) to the vertical position.
Remove the plastic tie securing the Wire
Harness (42) to the right Upright (69). Next, in-
sert the colored tie on the Wire Harness up
through the large holes in the right Handrail (71)
as shown. Then, pull the Wire Harness up
through the holes.
Set the Handrails (71) and the Console (43) on
the Uprights (69). Make sure that the Wire
Harness (42) and the console wire are not
pinched. Discard the colored wire.
Next, connect the Wire Harness (42) to the con-
sole wire. Make sure to connect the connec-
tors properly (see the inset drawing). The
connectors should slide together easily and
snap into place. If the connectors do not slide
together easily and snap into place, turn one
connector and try again. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON. Then, insert the con-
nectors and excess wire intothe Console (43).
6
43
i
Colored Tie
Wire
=
Console
Wire
42
Tighten the four Handrail Bolts (37) with the four
1/4" Star Washers (95) into the Uprights (69) and
the Handrails (71). Start all four Handrail Bolts
before tightening any of them. 71
37
37
95
8
