PART iDENTiFiCATiON CHART

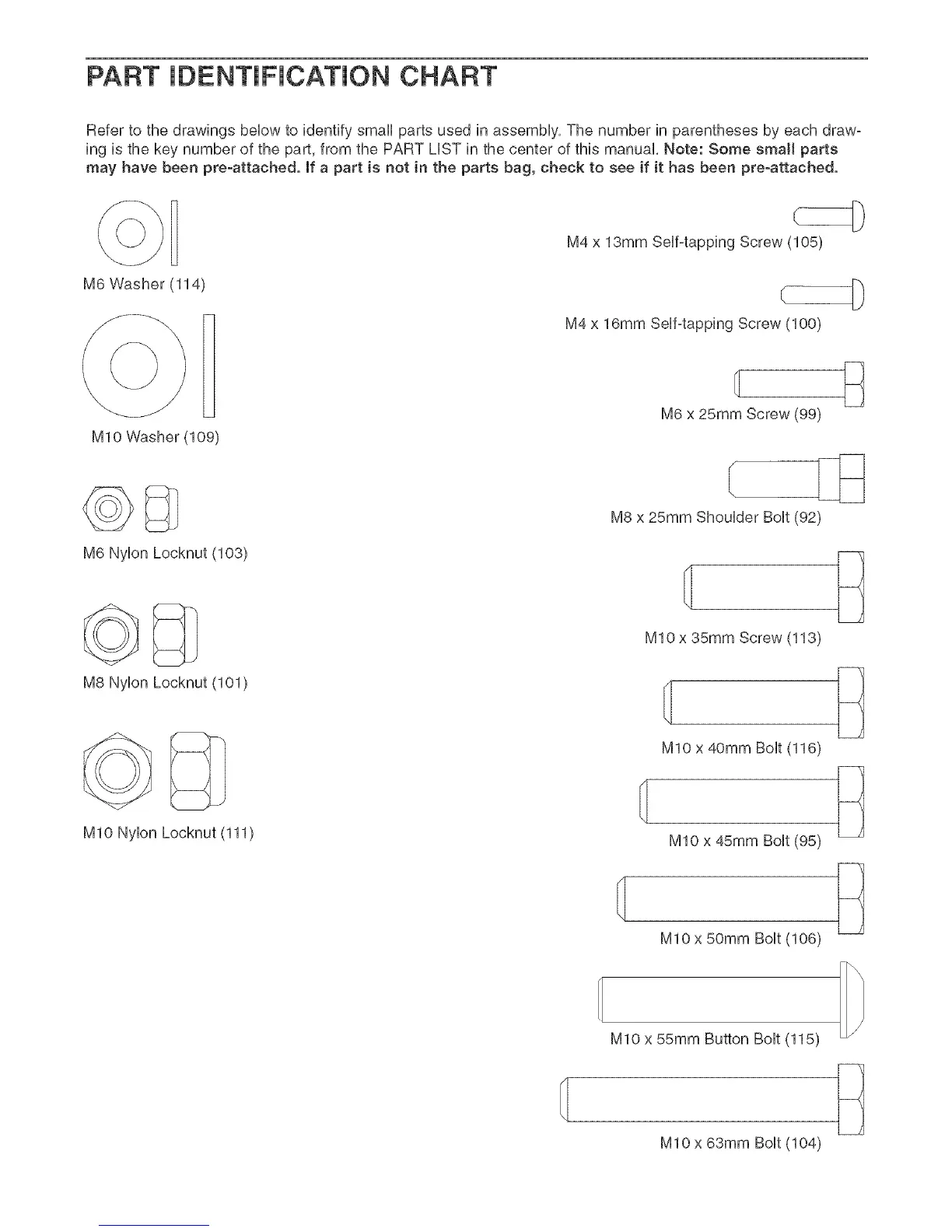

Refer to the drawings beUowto identify small parts used in assemMy, The number in parentheses by each draw-
ing is the key number of the part, from the PART LUSTin the center of this manual Note: Some small parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
B
M6 Washer (114)
M10 Washer (109)
M6 NyUonLocknut (103)
M8 NyUonLocknut (101)
MIO Nylon Locknut (111)
M4 x 13mm Self-tapping Screw (105)
M4 x 16mm Self-tapping Screw (100)
M6 x 25mm Screw (99)
M8 x 25mm Shoulder Bolt (92)
MIO x 35mm Screw (113)
MIO x 40ram BoUt(116)
MIO x 45mm Bolt (95)
MIO x 50mm BoUt(106)
MIO x 55mm Button Bolt (115)
MIO x 63mm Bolt (104)
