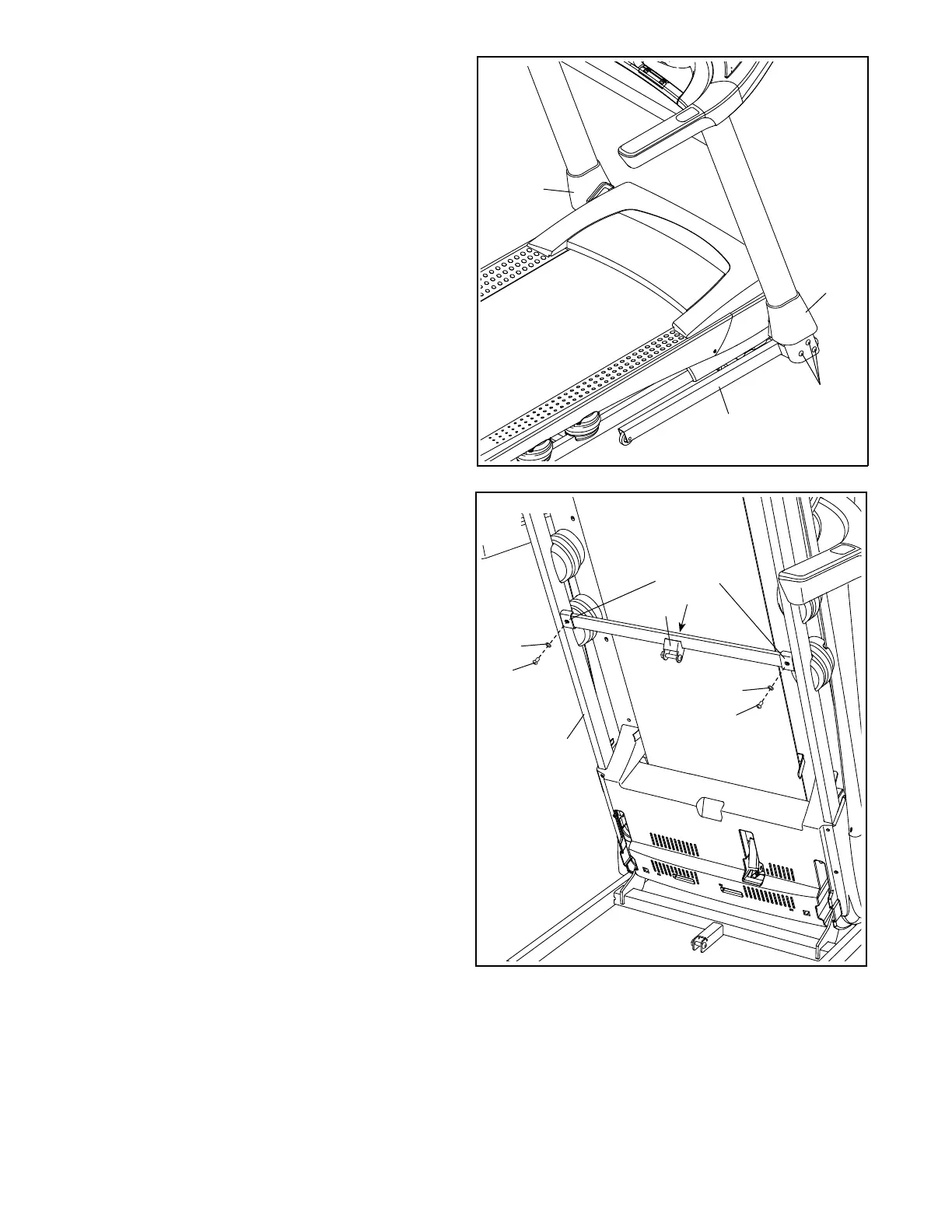

17. Firmly tighten the six 3/8" x 4" Screws (7) (only
one side is shown).
Then, press the Left Base Cover (82) and the
Right Base Cover (83) onto the Base (94).
17
83
82
94
7
18. Note: If the treadmill is assembled on a
smooth surface, it may roll forward during
this step.
Raise the Frame (56) to the upright position.
Have a second person hold the Frame until
step 20 is completed.
Remove the two 5/16" x 3/4" Screws (4) from the
Latch Crossbar (38).
Orient the Latch Crossbar (38) as shown. Make
sure that the “This side toward belt” sticker
(H) is facing the treadmill. Attach the Latch
Crossbar to the brackets on the Frame (56) with
the two 5/16" x 3/4" Screws (4) that you just
removed and two 5/16" Star Washers (11).
56
38
H
11
11
4
4
Brackets
18
To Next Page
