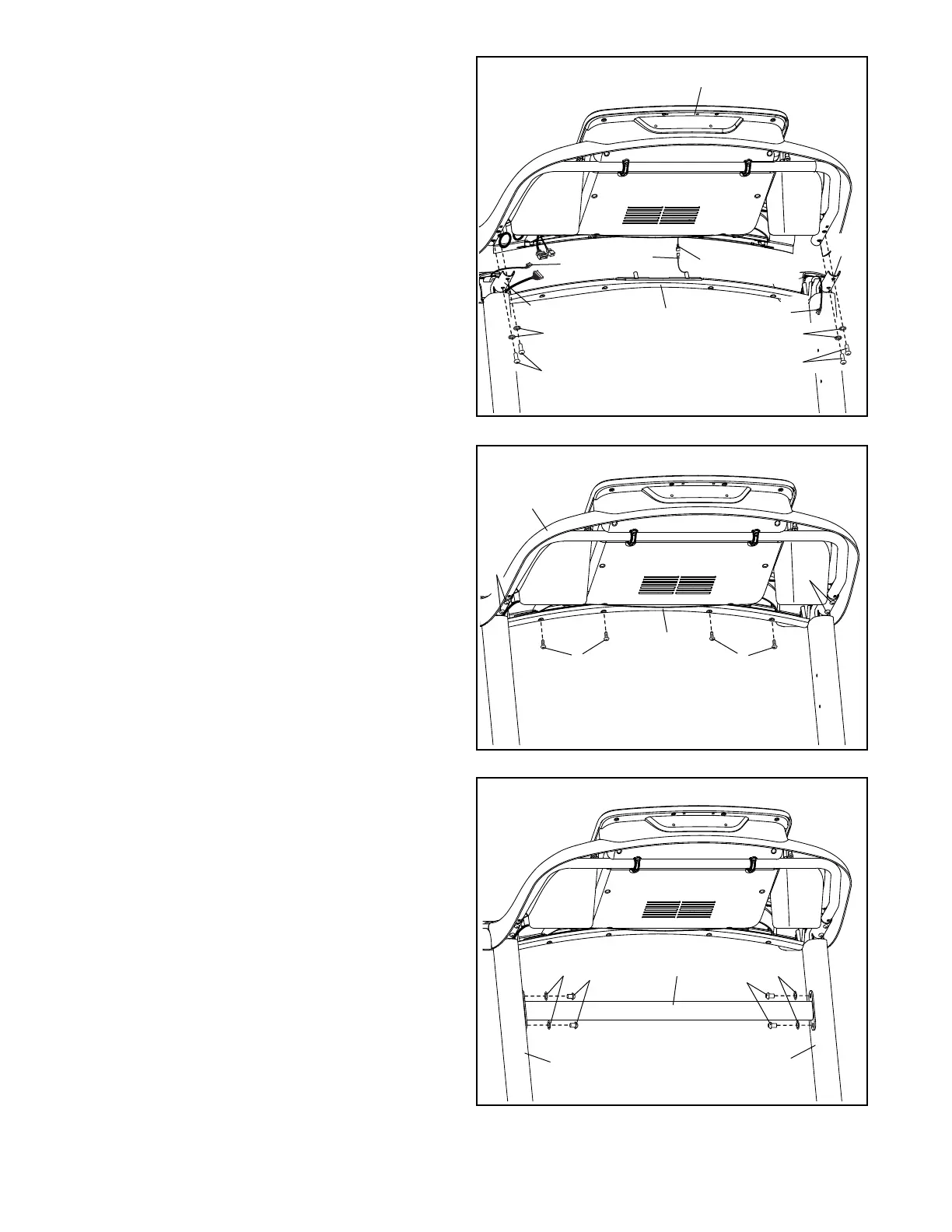

12. Hold the console assembly (G) near the Pulse
Crossbar (93). Connect the ground wire from the
console assembly to the Console Ground Wire
(58) on the Pulse Crossbar.
Next, set the console assembly (G) on the brack-
ets on the Handrails (86); do not pinch any
wires. Make sure that the handrail wires (F)
are oriented as shown.
Attach the console assembly (G) with the four
5/16" x 3/4" Screws (4) that you removed in step
9 and four 5/16" Star Washers (11); do not fully
tighten the Screws yet.
12
93
G
11
86
58
4
13. Attach the console assembly (G) to the Pulse
Crossbar (93) with four #8 x 1/2" Screws (1);
start all four Screws, and then tighten them.
Then, firmly tighten the four 5/16" x 3/4"
Screws (4).
13
93
G
4
1 1
86
4
11
4
14. Carefully slide the Upright Crossbar (31)
between the Left and Right Uprights (89, 90).
Attach the Upright Crossbar with the four 5/16"
x 3/4" Screws (4) that you removed in step 6
and four 5/16" Star Washers (11); start all four
Screws, and then tighten them.
14
11
4
11
90
89
31
4
F
F
Ground Wire
To Next Page
