11

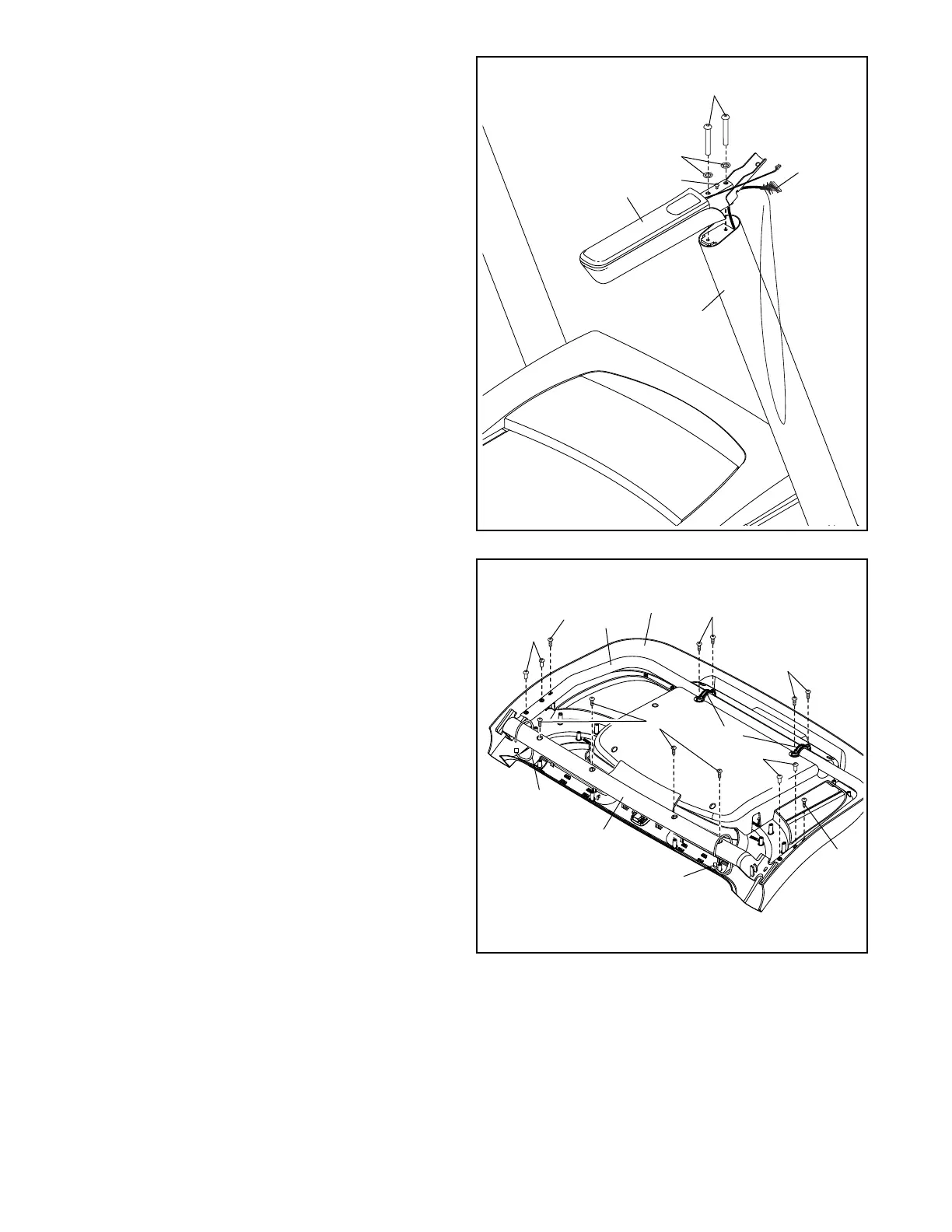

8. Insert the Upright Wire (81) into the bottom of
the right handrail assembly (D) and out of the
front as shown.
Attach the right handrail assembly (D) to the
Right Upright (90) with two 5/16" x 2 1/2" Screws
(28) and two 5/16" Star Washers (11); do not
fully tighten the Screws yet. Make sure not to
pinch the Upright Wire (81).
Then, remove and discard the indicated screw
(C).
28
11
D
90
81
8
64
18
41
93
E
9
9. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base. If
there are ties securing the Pulse Crossbar (93)
to the Console Base, remove the ties.
Remove and discard the four indicated screws
(E). Then, remove the Pulse Crossbar (93).
Remove and save the four 5/16" x 3/4"
Screws (4) and the six #8 x 3/4" Screws (2).
Then, lift out the two Console Clamps (41) and
the Console Frame (18).
4
4
2
2
2
2
Tie
Tie
C
To Next Page
