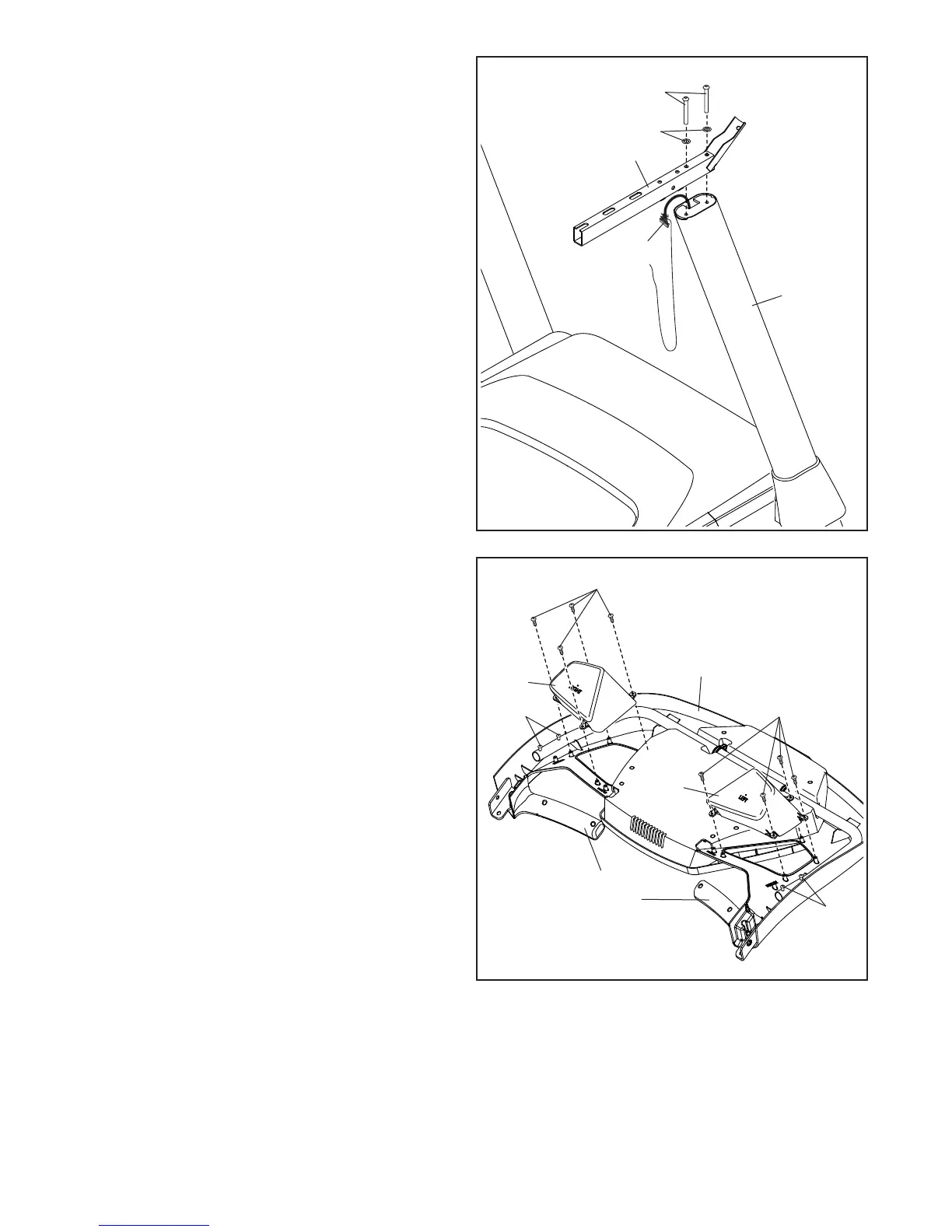

6. Identify the Right Handrail (84).
Attach the Right Handrail (84) to the Right
Upright (90) with two 5/16" x 2 1/4" Screws (28)
and two 5/16" Star Washers (11); start both
Screws, and then tighten them. Make sure
not to pinch the Upright Wire (81).
Attach the Left Handrail (not shown) to the
Left Upright (not shown) in the same way.
Note: There are no wires on the left side.
11
81
84
28
6
90
64
105
2
7
7. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base.
Do not lift the Console Base by the pulse
grips.
Remove and save the four 1/4" x 1/2"
Screws (2).
Identify the Left Tray (105). Attach the Left Tray
with four #8 x 1/2" Screws (1).
Attach the Right Tray (106) in the same way.
2
1
106
1
Pulse
Grips
To Next Page
