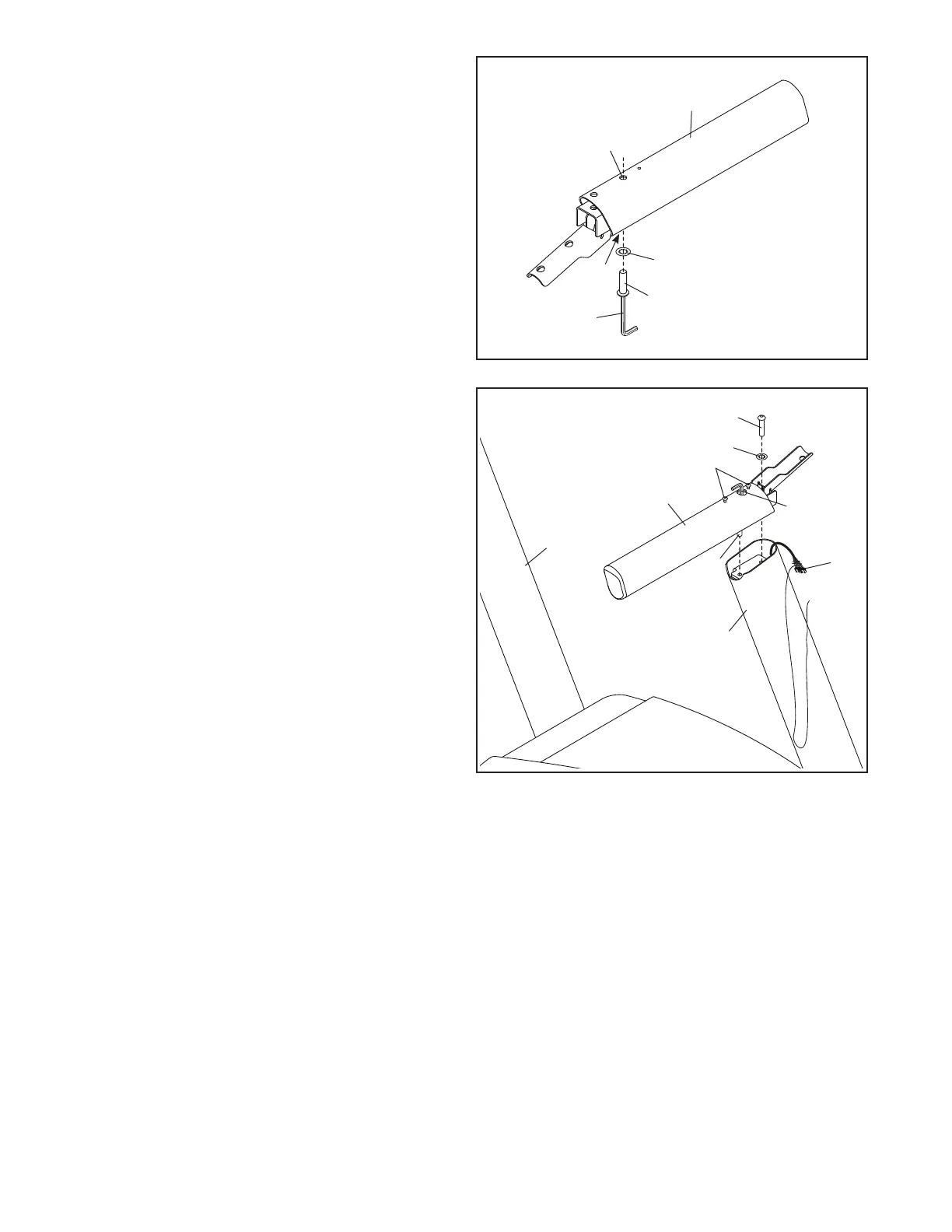

7. Turn one of the Handrails (72) upside down.
Insert a 5/16" x 1 1/2" Screw (5) with a 5/16" Star
Washer (7) into the large hole (F) and out of the
indicated small hole (G).
Next, hold the 5/16" x 1 1/2" Screw (5) with the
hex key (H) and turn the Handrail (72) back
upright. Continue to hold the Screw in place
as you complete the next assembly step.
7
72
7
5
F
H
G
8. Set the Handrail (72) on the Right Upright (79).
Using the hex key (H), partially tighten the
5/16" x 1 1/2" Screw (5); do not fully tighten
the Screw yet.
Next, start another 5/16" x 1 1/2" Screw (5) with
a 5/16" Star Washer (7) into the Handrail (72)
and the Right Upright (79). Then, tighten both
Screws. Do not pinch the Upright Wire (80).
Then, remove and discard the two indicated
screws (I).
Repeat step 7 and this step to attach the
other Handrail (not shown) to the Left Upright
(78). Note: There are no wires on the left side.
7
80
72
5
5
8
79
78
I
H
