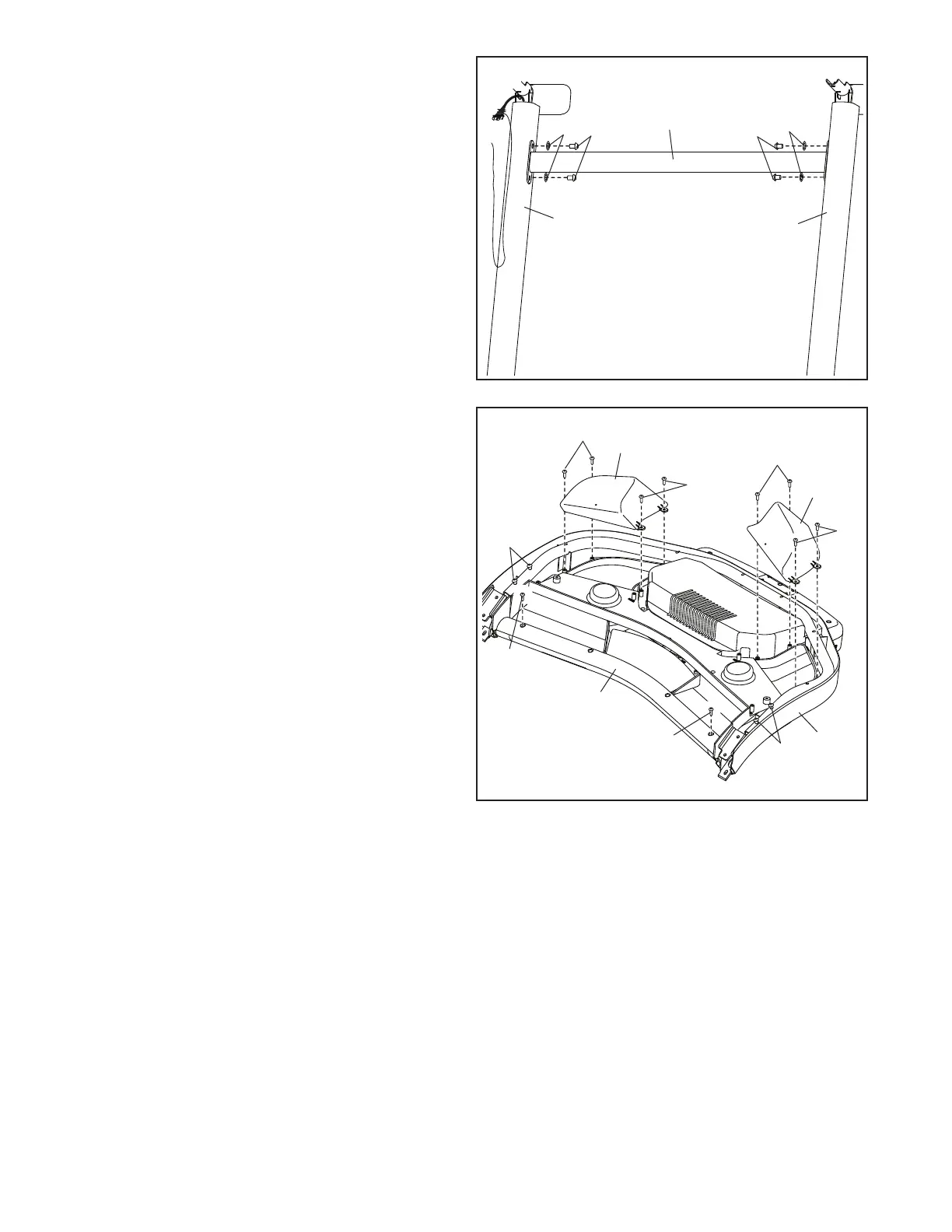

9. Carefully slide the Upright Crossbar (77)
between the Left and Right Uprights (78, 79).
Attach the Upright Crossbar with the four 5/16" x
3/4" Screws (13) that you removed in step 6
and four 5/16" Star Washers (7); start all four
Screws, and then tighten them.
9
7
13
13
7
78
79
77
85
86
10
10
75
74
J
J
10
10. Set the Console Base (74) face down on a soft
surface to avoid scratching the Console Base.
Remove and discard the two indicated
screws (J). Then, remove the Handrail Crossbar
(75).
Next, identify the Left and Right Trays (85, 86).
Attach the Trays to the Console Base (74) with
eight #8 x 1/2" Screws (10); do not overtighten
the Screws.
Then, remove and save the four indicated
5/16" x 3/4" Screws (13).
10
10
13
13
To Next Page
