13
75
72
11

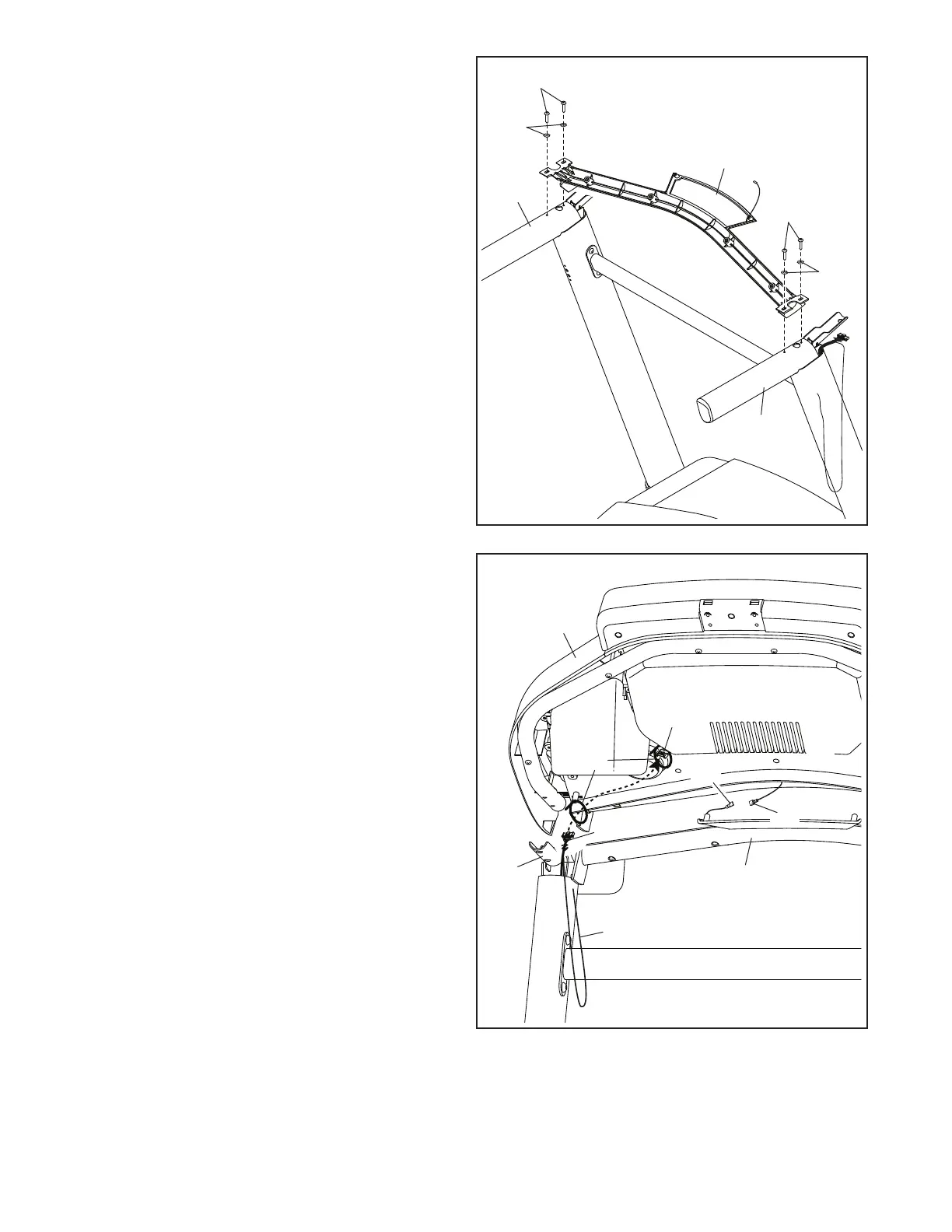

11. IMPORTANT: To avoid damaging the Handrail
Crossbar (75), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Handrail Crossbar (75) as shown.
Attach the Handrail Crossbar to the Handrails
(72) with four #10 x 3/4" Screws (9) and four #10
Star Washers (8); start all four Screws, and
then tighten them.
9
9
8
8
72
12. With the help of a second person, hold the con-
sole assembly (K) near the Handrails (72).
Connect the ground wire (L) from the console
assembly (K) to the Console Ground Wire (76)
on the Handrail Crossbar (75).
Next, insert the Upright Wire (80) through the
two indicated looped ties (M).
See the inset drawing. Connect the Upright
Wire (80) to the console wire (N). The connec-
tors should slide together easily and snap
into place with an audible click. If they do
not, turn one connector and try again. Then,
remove the wire tie (A) from the Upright Wire.
12
K
M
N
A
80
72
75
76
L
To Next Page
