4

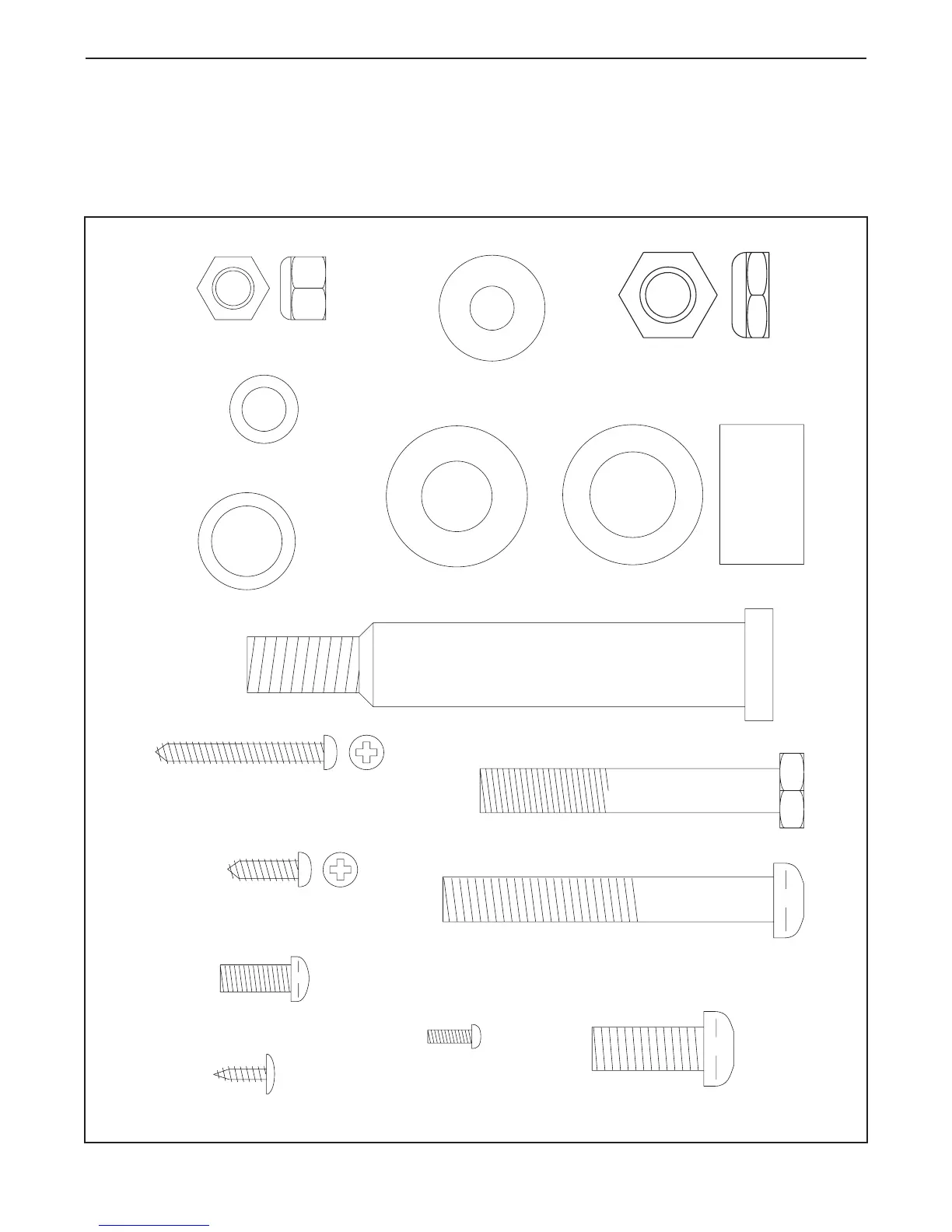

PART IDENTIFICATION CHART
Use the chart below to identify the small parts used in
assembly. The number in parenthesis below each part
is the key number of the part, from the PART LIST on
page 14. The number after the dash indicates the
quantity needed for assembly. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it has
been pre-attached.
M10 Nylon Locknut (54)—6
1/2" Nylon Locknut (9)—2
Pedal Bolt (8)—2
M10 x 68mm Bolt (67)–4
Pedal Arm Spacer (42)—2
M10 x 25mm Button Head Bolt (85)–2
M10 Washer (71)—6
Handlebar Screw (51)–4
M4 x 38mm Screw (4)—2
Console Mount Screw (69)–1
M16 Flat Washer (84)—2
Plastic Sleeve (53)—2
Metal Handlebar Spacer (83)–2
M10 x 75mm Bolt (66)–2
M4 x 16mm Tapping Screw (30)—8
M6 x 16mm Seat Screw (28)–8
