ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips screw-
driver .

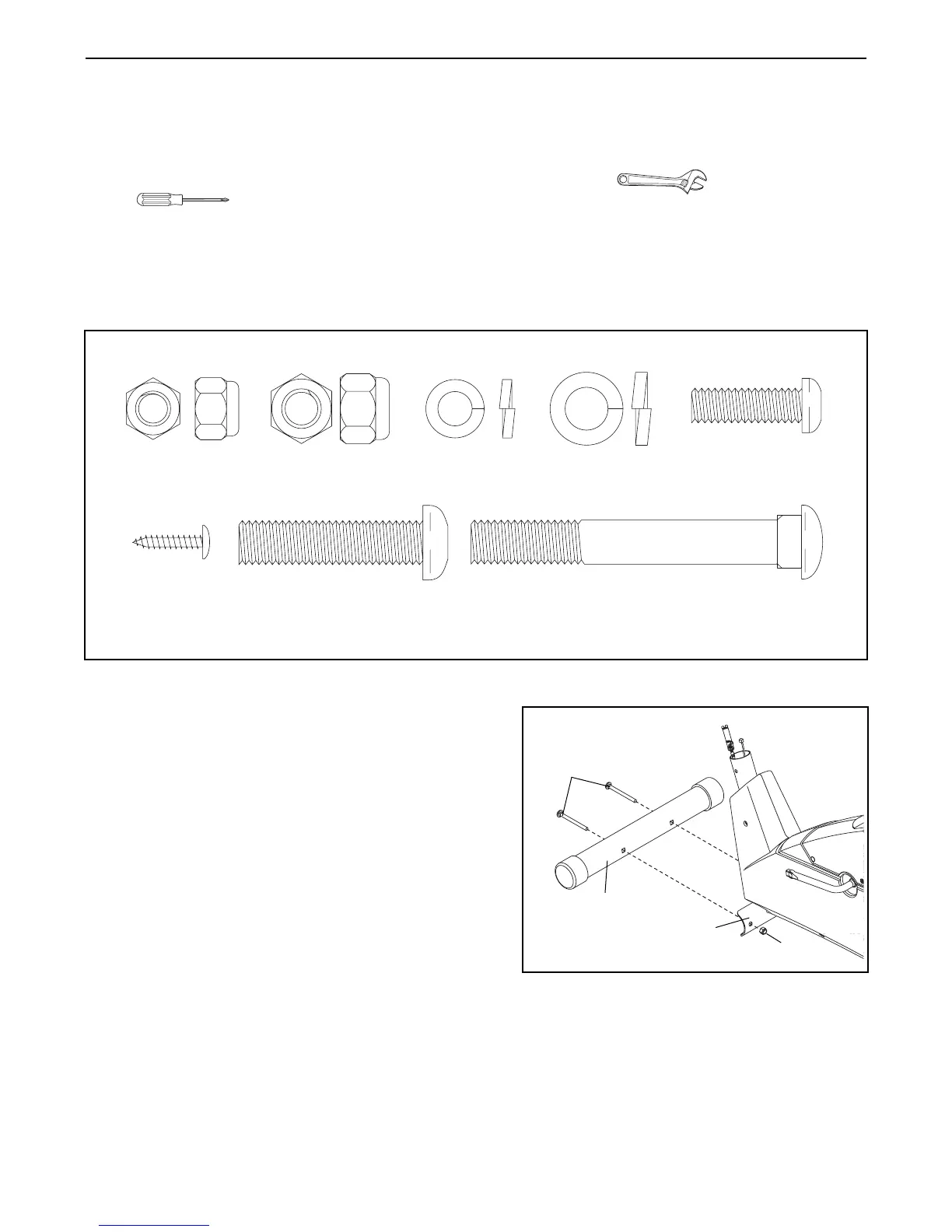

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a
part is not in the parts bag, check to see if it has been pre-attached.
M4 x 16mm
Screw (32)–5
M8 Nylon
Locknut (10)–4
M10 Black Nylon
Locknut (34)–6
M8 Black Split
Washer (42)–7
M10 Split
Washer (46)–2
M8 x 25mm Button
Screw (47)–3
M10 x 42mm Button
Bolt (6)–2
M10 x 75mm Carriage Bolt (33)–4
1. Identify the Front Stabilizer (2). While another person
lifts the front of the Frame (1) slightly, attach the Front
Stabilizer to the Frame with two M10 x 75mm Carriage
Bolts (33) and two M10 Black Nylon Locknuts (34).
2
34
33
1
1
