4
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included allen wrenches, assembly requires a phillips screwdriver , an
adjustable wrench , and a rubber mallet .

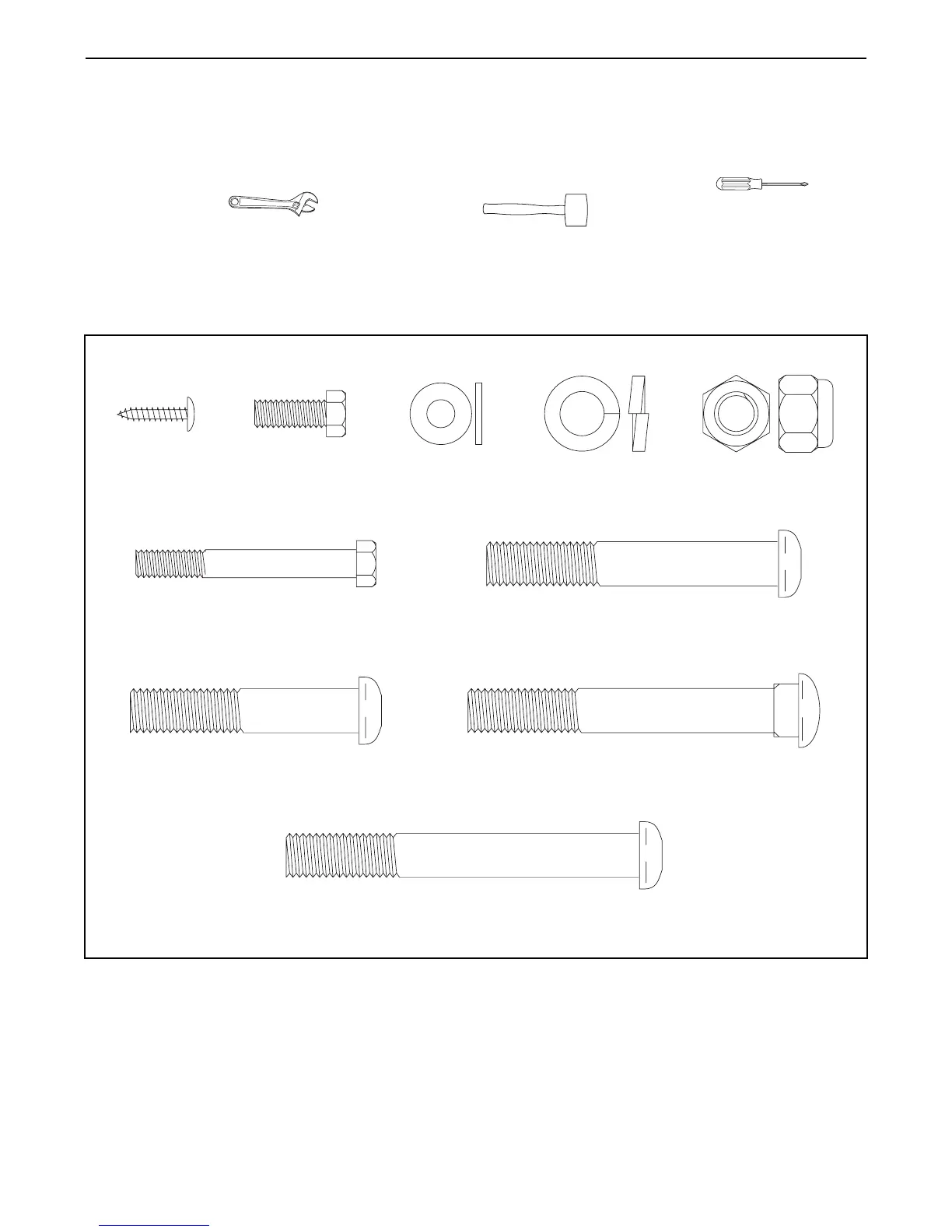

As you assemble the exercise cycle, use the drawings below to identify the small parts used in assembly. The
number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page
14. The second number refers to the quantity used in assembly. Note: Some small parts may have been pre-
assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M4 x 16mm
Screw (40)–5
M10 Nylon
Locknut (44)–6
M6 Flat
Washer (38)–1
M10 Split
Washer (43)–8
M10 x 75mm Carriage Bolt (48)–2
M10 x 66mm Button Bolt (47)–4
M10 x 52mm Button Bolt (42)–2
M10 x 80mm Button Bolt (49)–2
M6 x 53mm
Screw (30)–1
M6 x 16mm
Screw (37)–5
