6

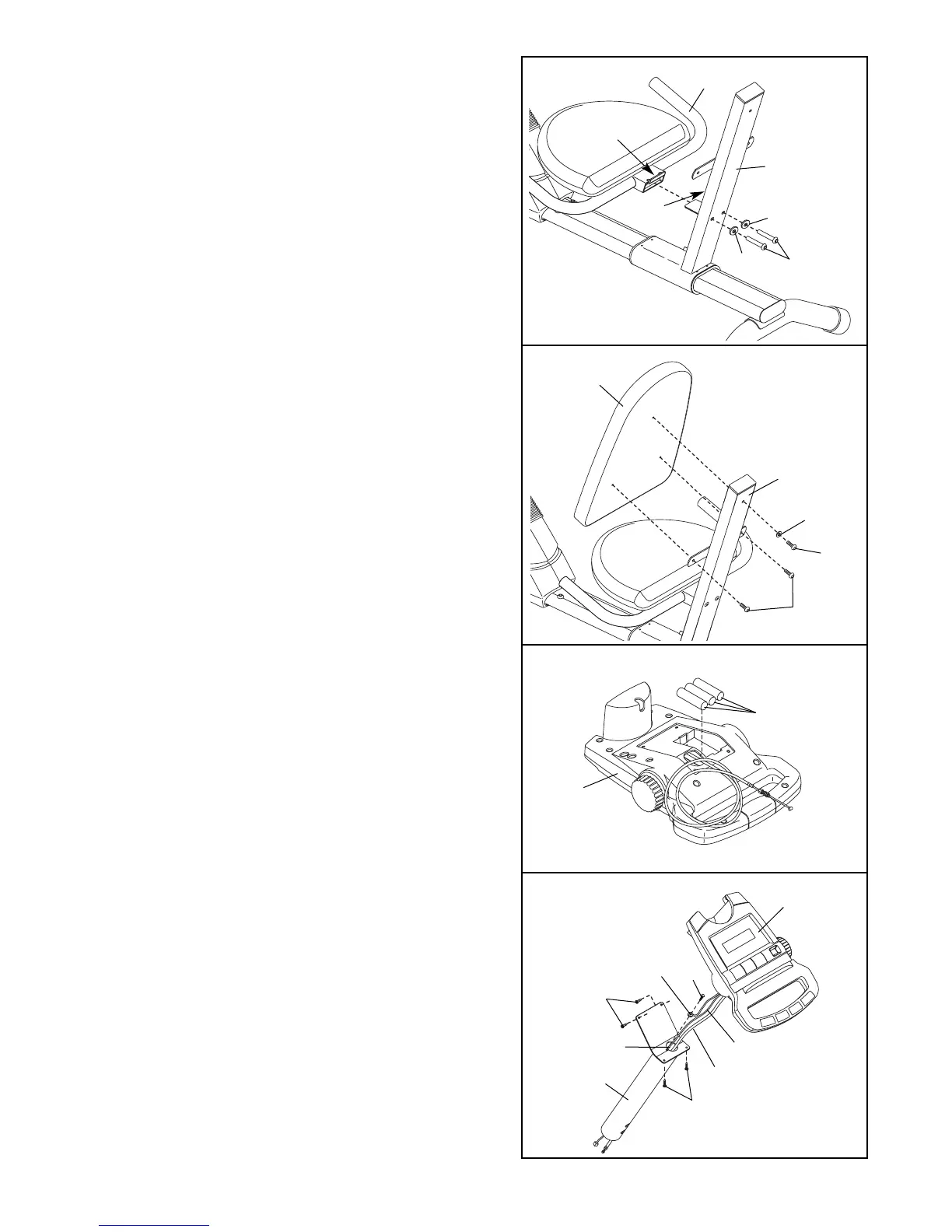

6. Attach the Backrest (9) to the Seat Carriage (4) with
two M6 x 16mm Screws (37), an M6 x 53mm Screw
(30), and an M6 Flat Washer (38) as shown.
8. Hold the Console (12) near the Upright (11). Insert
the console cable and the console wire into the indi-
cated hole and down through the Upright. Attach the
ground wire to the Upright with an M4 x 16mm
Screw (40).
Insert the excess wire and cable into the Upright
(11). Attach the Console (12) to the Upright with four
M4 x 16mm Screws (40). Make sure that the wires
and the cable are not pinched.
8
12
11
40
40
Ground Wire
Hole
Console Wire
Console Cable
40
5
6
6
4
Tab
Slot
43
43
47
9
4
38
30
37
5. Hold the Seat Frame (6) at an angle, and insert the tab
on the Seat Frame into the indicated slot in the Seat
Carriage (4). Attach the Seat Frame to the Seat
Carriage with two M10 x 66mm Button Bolts (47) and
two M10 Split Washers (43).
7. The Console (12) requires three “AA” batteries (not
included); alkaline batteries are recommended. Insert
three batteries into the Console as shown. Make sure
that the batteries are oriented as shown by the dia-
gram inside the Console.
Batteries
12
7
To Next Page
