Pro-Form XP 400 R User Manual

7
4

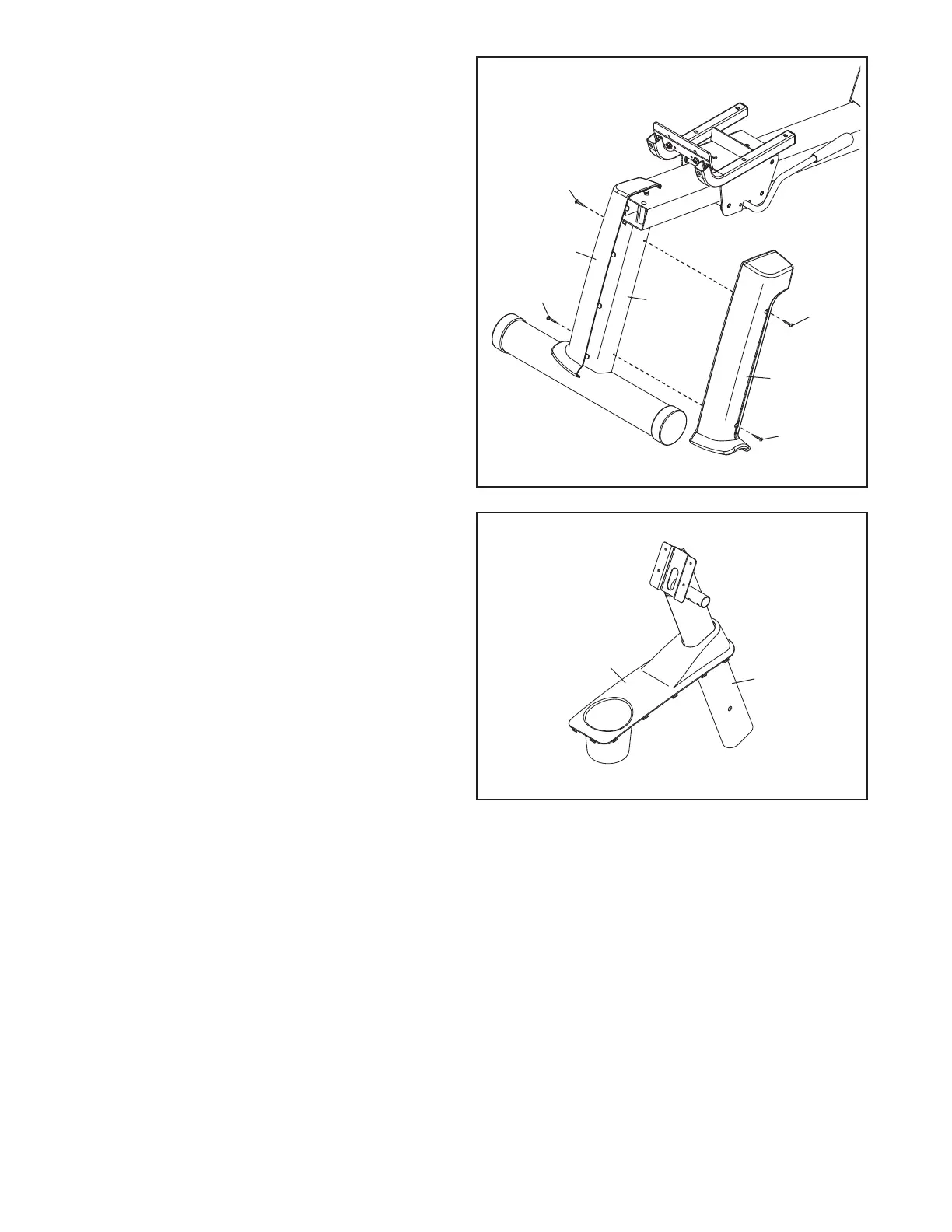

4. Identify the Top Shield (14) and the Upright (4).
With the help of another person, slide the Top
Shield (14) upward onto the Upright (4). Make
sure that the Top Shield and the Upright are
oriented as shown.
Have the other person continue holding the
Top Shield (14) in place while you complete
step 5.
3
3. Identify the Right and Left Stabilizer Covers (12,
13), which are marked with “R” and “L” stickers.
Attach each Stabilizer Cover (12, 13) to the
Rear Stabilizer (2) with two M4 x 16mm Screws
(62).
13
12
62
62
62
62
4
14
2

Pro-Form XP 400 R Specifications

General

Brand	Pro-Form
Model	XP 400 R
Category	Fitness Equipment
Language	English
