8
5

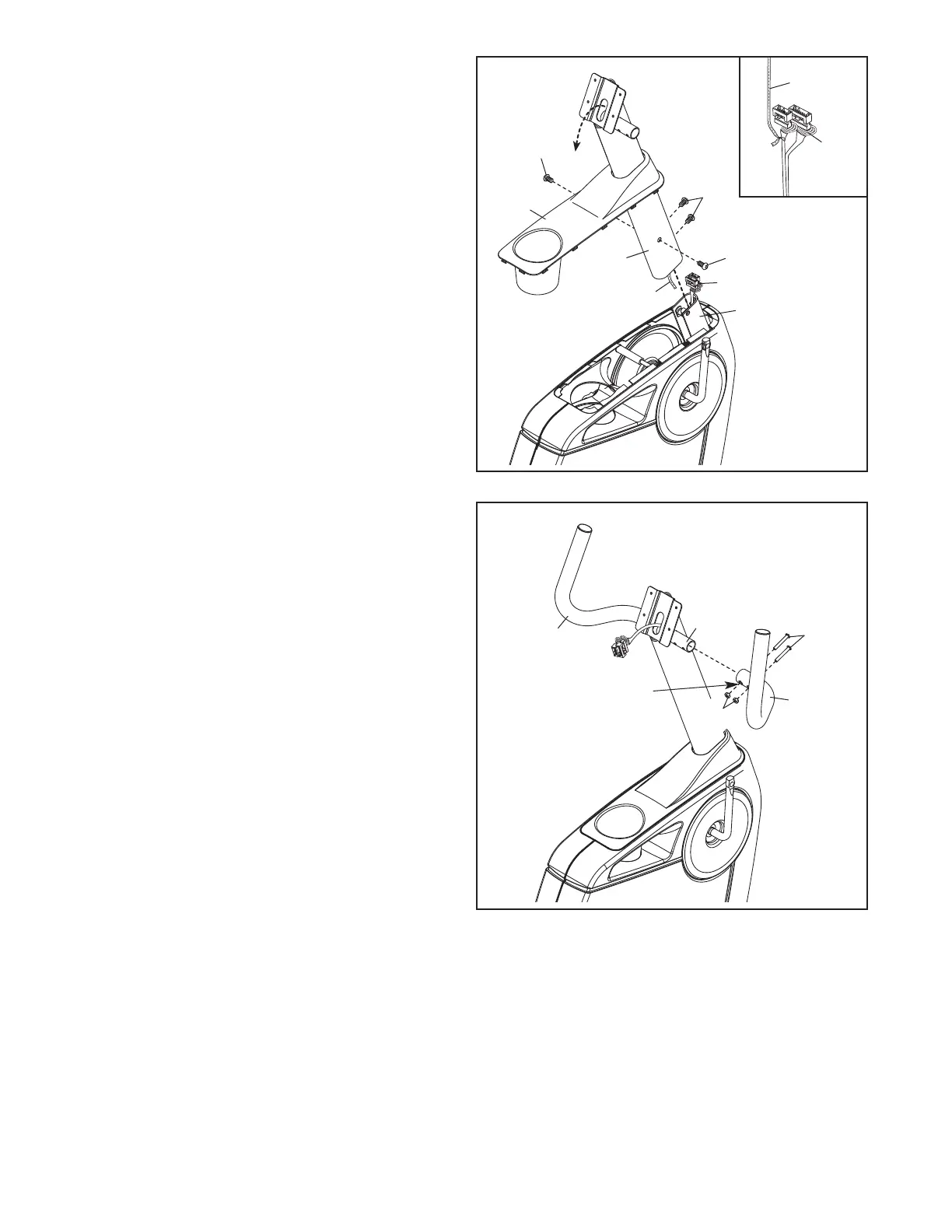

5. Tip: Avoid pinching the Wire Harness (40)
d
uring this step.
Have another person hold the Upright (4) and
the Top Shield (14) near the Frame (1). Locate
the wire tie in the Upright and the Wire Harness
(40) in the Frame.
See the inset drawing. Tie the wire tie to one
of the connectors on the Wire Harness (40).
Then, pull the other end of the wire tie upward
out of the top of the Upright (4). Discard the
wire tie.
Slide the Upright (4) onto the Frame (1). Attach
the Upright with four M10 x 20mm Patch Screws
(54). Then, press the Top Shield (14) downward
into the Frame.
40
40
W
ire Tie
Wire Tie
4
54
54
54
14
1
Avoid
pinching the
Wire Harness
(40)
6. Identify the Right and Left Handlebars (28, 29),
which are marked with “R” and “L” stickers.
Attach each Handlebar (28, 29) to the Upright
(4) with two M6 x 38mm Bolts (55) and two M6
Locknuts (56). Make sure that the hexagonal
holes are in the indicated location.
6
28
55
Hexagonal
Holes
29
56
4
To Next Page
