7
3
5
4

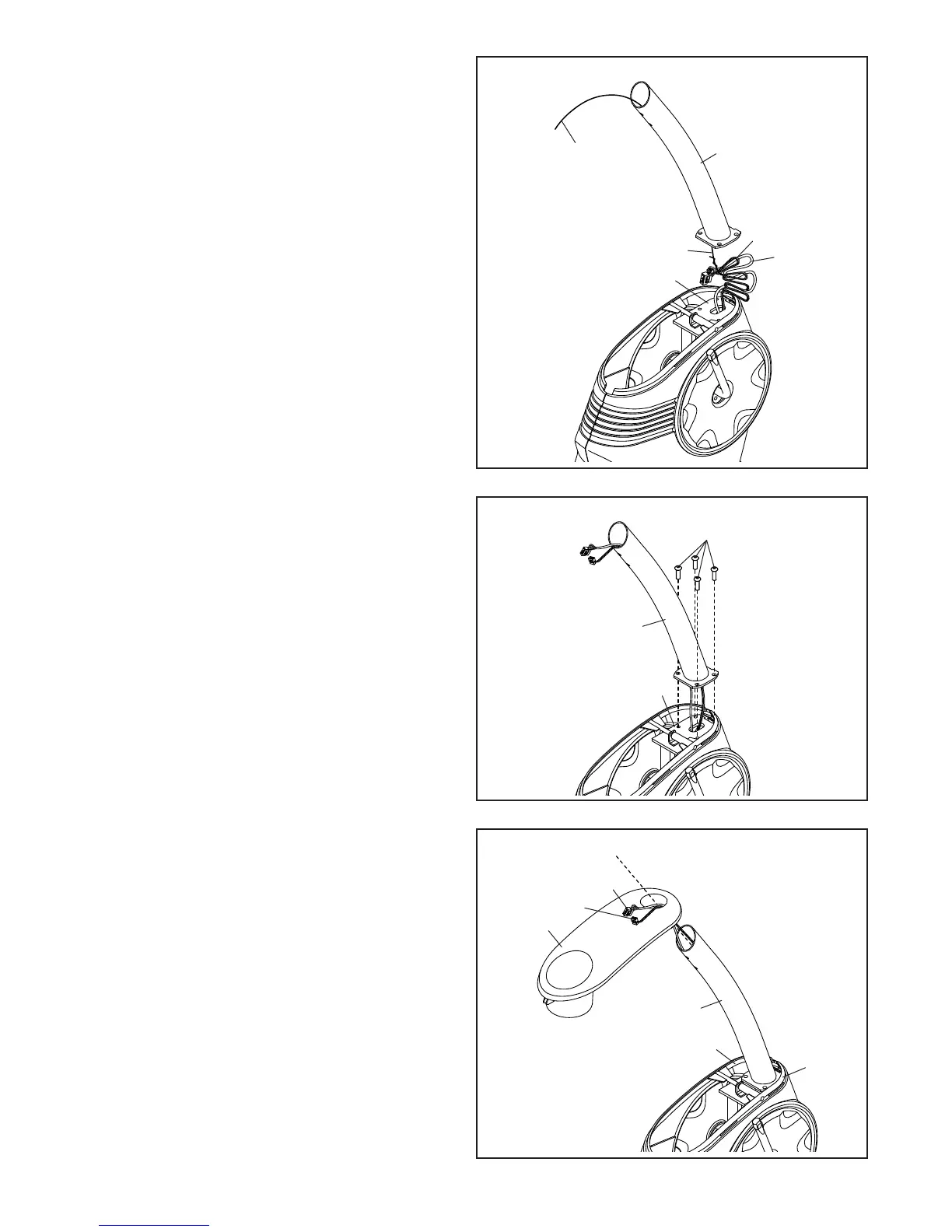

3. Orient the Upright (2) as shown. Have a second
person hold the Upright near the Frame (1).
Locate the wire tie inside the Upright (2). Tie the
lower end of the wire tie to the ends of the Main
Wire (53) and the Frame Pulse Wire (42).
Then, pull the other end of the wire tie upward
until the Main Wire (53) and the Frame Pulse
Wire (42) are routed completely through the
Upright (2).
4. Tip: Avoid pinching the wires. Set the Upright
(2) on the Frame (1).
Attach the Upright (2) to the Frame (1) with four
M8 x 20mm Screws (55).
5. Orient the Shield Cover (12) as shown. Then,
insert the Main Wire (53) and the Frame Pulse
Wire (42) upward through the Shield Cover.
Slide the Shield Cover (12) onto the Upright (2).
Then, press the Shield Cover into the Right and
Left Frame Shields (38, 39).
Wire Tie
Wire Tie
2
1
1
2
42
53
55
12
53
42
39
38
Avoid pinching
the wires
2
To Next Page
