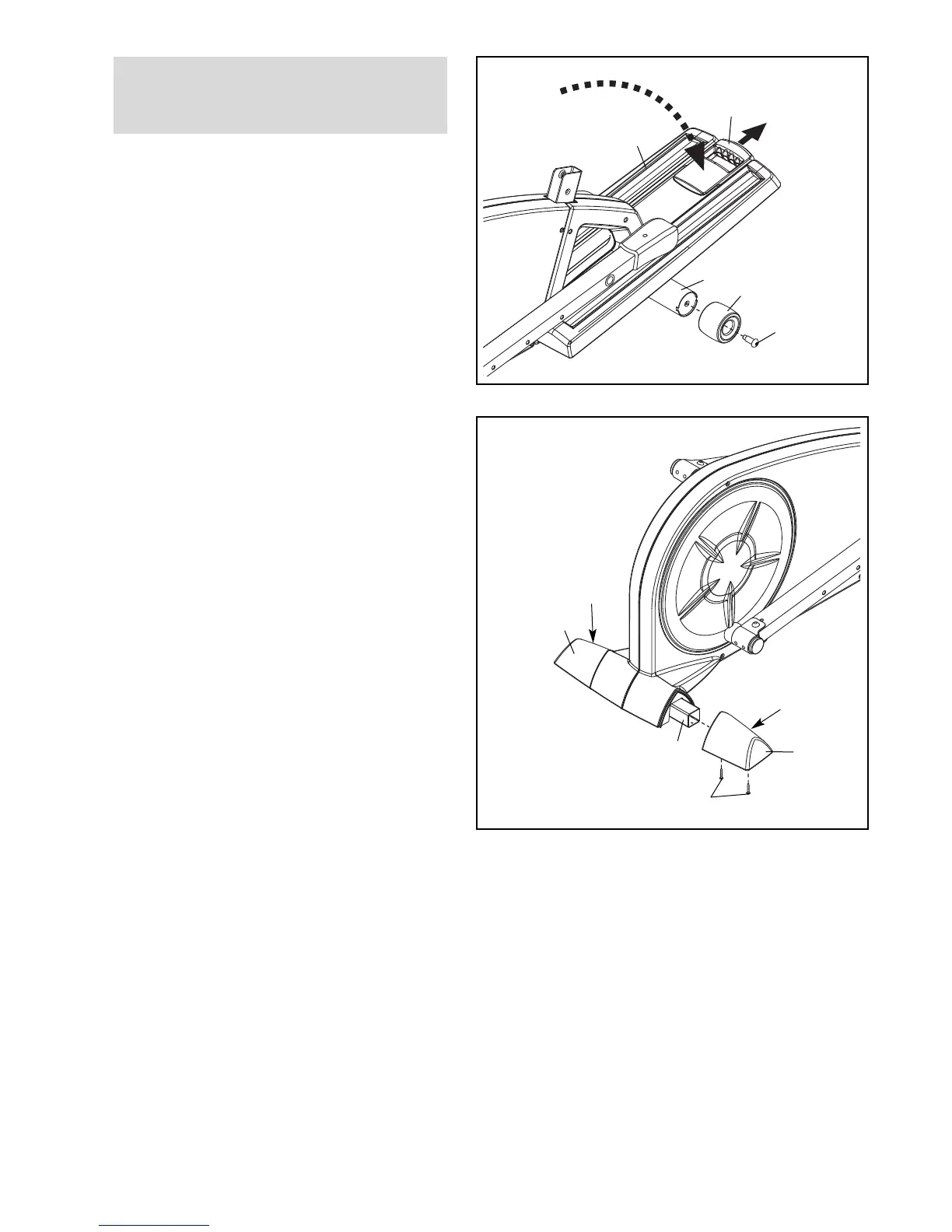

2. Identify the Right Frame Cover (49), which is
marked with a “Right” sticker. Then, orient the
Right Frame Cover with the rounded side in the
indicated location. While another person lifts the
rear of the Frame (1), attach the Right Frame
Cover with two M4 x 16mm Screws (84).
Repeat this step for the Left Frame
Cover (48).
1
.
Pull the ramp handle outward and lower the
Ramp (104) until it rests on the Frame (1).
Attach a Wheel (50) to the front of the Frame
(1) with an M10 x 41mm Shoulder Patch Screw
(63).
Attach the other Wheel (not shown) in the
same way.
1
To make assembly easier, read the
i
nformation on page 5 before you begin
assembling the elliptical exerciser.
1
63
50
Ramp
Handle
104
2
48
Rounded
Side
1
Rounded
Side
84
49
