5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own Phillips screwdriver , adjustable
wrench , and rubber mallet .

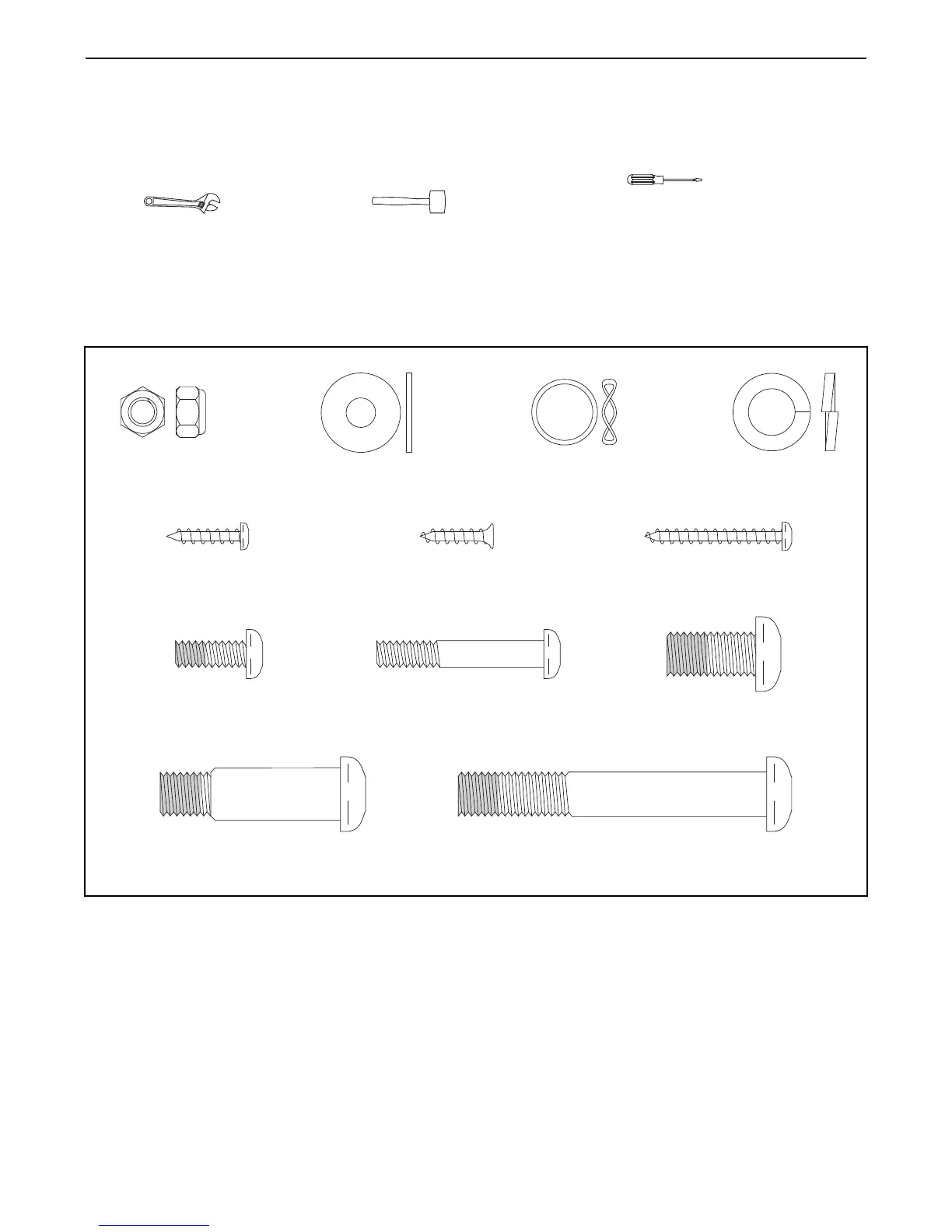

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the parts bag, check to see if it has been preassembled. If a part is
missing, call 1-888-533-1333.
M4 x 16mm
Screw (84)–14
M4 x 32mm Screw
(95)–2
M4 x 16mm Flat Head
Screw (94)–4
M10 Split
Washer (78)–10
M6 Nylon
Locknut (77)–4
M6 x 16mm Patch
Screw (80)–6
M10 x 20mm Patch
Screw (79)–4
M10 x 70mm Patch Screw (75)–6M10 x 41mm Shoulder
Patch Screw (63)–2
Wave Washer
(88)–6
M6 Large
Washer (90)–4
M6 x 38mm Button
Bolt (76)–4
