9
8
7

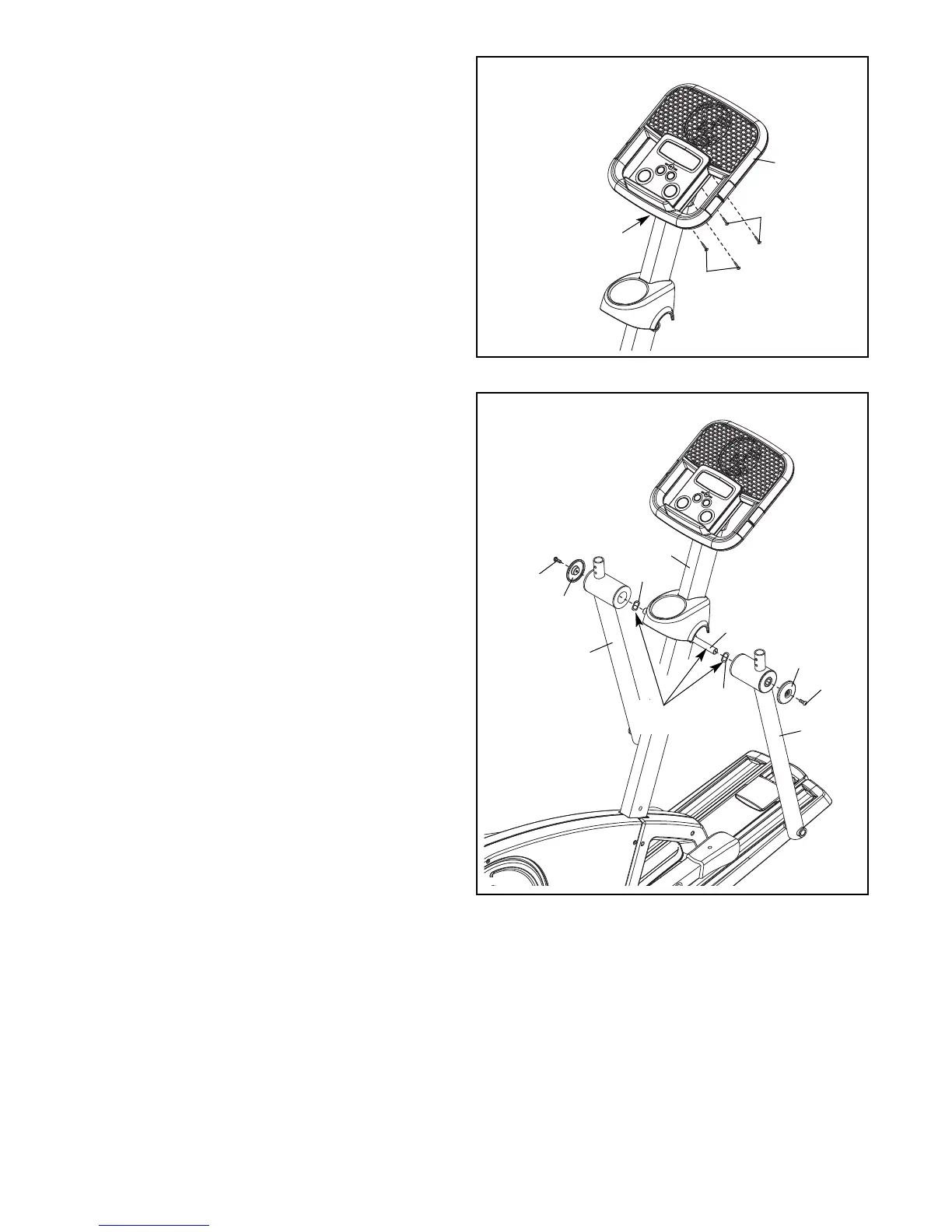

7. Slide the Console Cover (96) (see the drawing
in step 6) upward to the Console (4). Attach the
C
onsole Cover with four M4 x 16mm Screws
(84).
96
84
84
4
8. Apply a generous amount of the included
grease to the Pivot Axle (16). Then, apply a
small amount of grease to two Wave Washers
(88).
Insert the Pivot Axle (16) into the Upright (2).
Slide a Wave Washer (88) onto each end of the
Pivot Axle.
Identify the Left Upper Body Leg (6), which is
marked with a “Left” sticker. Slide the Left
Upper Body Leg onto the Pivot Axle (16). Attach
the Left Upper Body Leg with an M6 x 16mm
Patch Screw (80) and a Large Axle Cover (20).
Attach the Right Upper Body Leg (31) in the
same way.
80
20
6
88
16
88
31
20
80
2
Grease
