Below is the control panel for the Sentry by Orion Semi-Automatic Stretch Wrapping
Machine.
WARNING
Be aware of the movement of the carriage near the control panel. It is pos-
sible to be struck by the moving carriage when the machine is running.

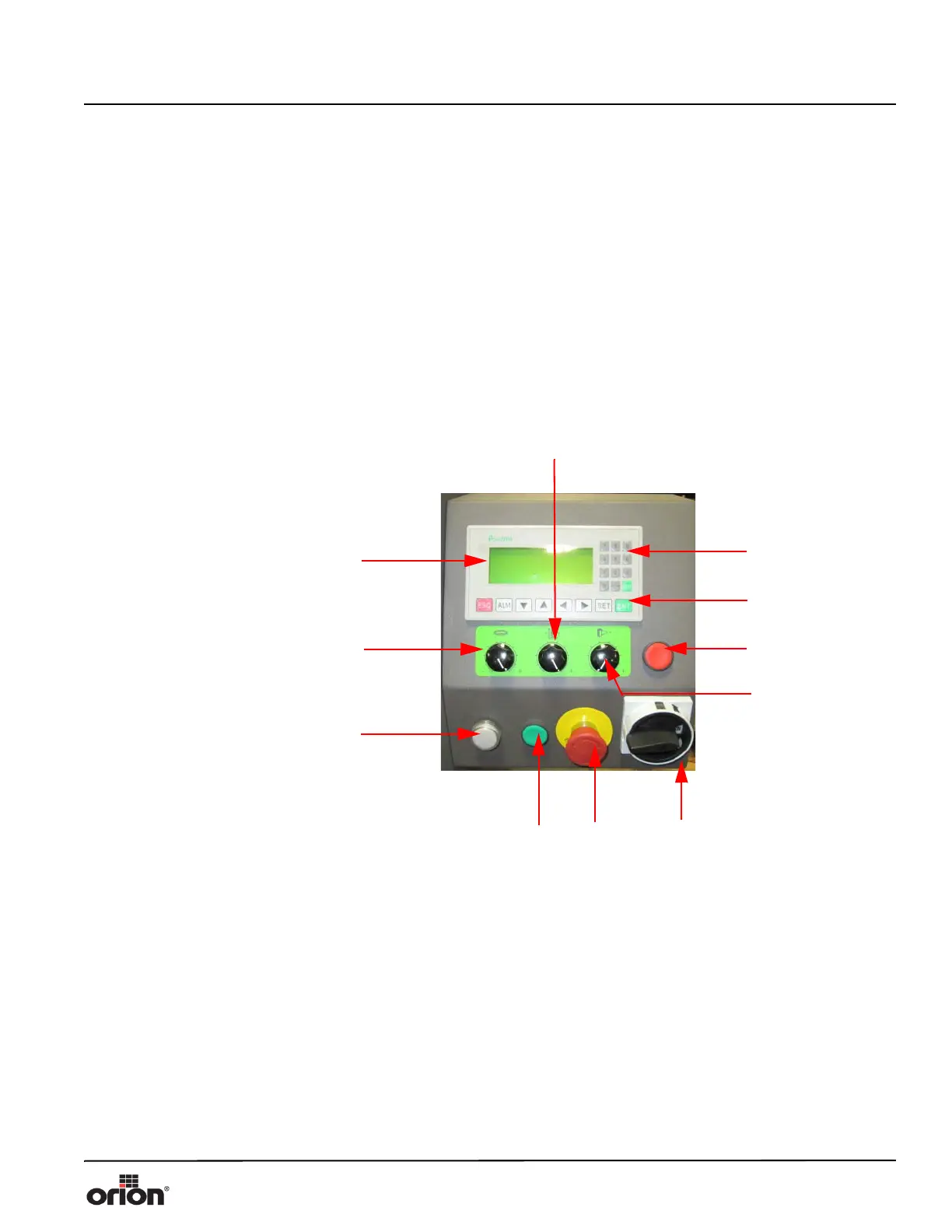

Figure 3 - 1
Control Panel
Carriage
Lift Speed
Adj
Turntable
Speed Adj
Power
Indicator
Program
Execute
Button
E-Stop
Power
On/ Off
Switch
Film Feed
Speed Adj
Command
Keys
Numeric
Keypad
LCD Screen
Cycle Stop
