Sentry by Orion Orion
Semi-Automatic Stretch Wrapping Machine Revision 2.8
System Operation 27 August 2014
Page 3-12
The TopSheet Program
Topsheet mode will wrap the load up, then pause. Once the operator is done placing the
topsheet on, the operator must restart by press the green Program Execute button or 0.
1. On the Program Screen, press 4 to choose the Topsheet program to run.
2. Press 0 or the green Program Execute button to start the Topsheet cycle. The table,
up, and down indicators will show when the table is running and when the carriage is
moving up. While running this program, you may also choose the following:
A. Press +/- to pause the wrap cycle. The carriage will remain at the location it was at
when the machine was paused. Press 0 or the green Program Execute button to
resume the current cycle.
B. Press CLR to stop the wrap cycle. The carriage will move down to the start point.
C. You may leave the Topsheet screen displayed if you are going to wrap multiple
loads. If not, press ESC when the cycle is complete to choose a new program.

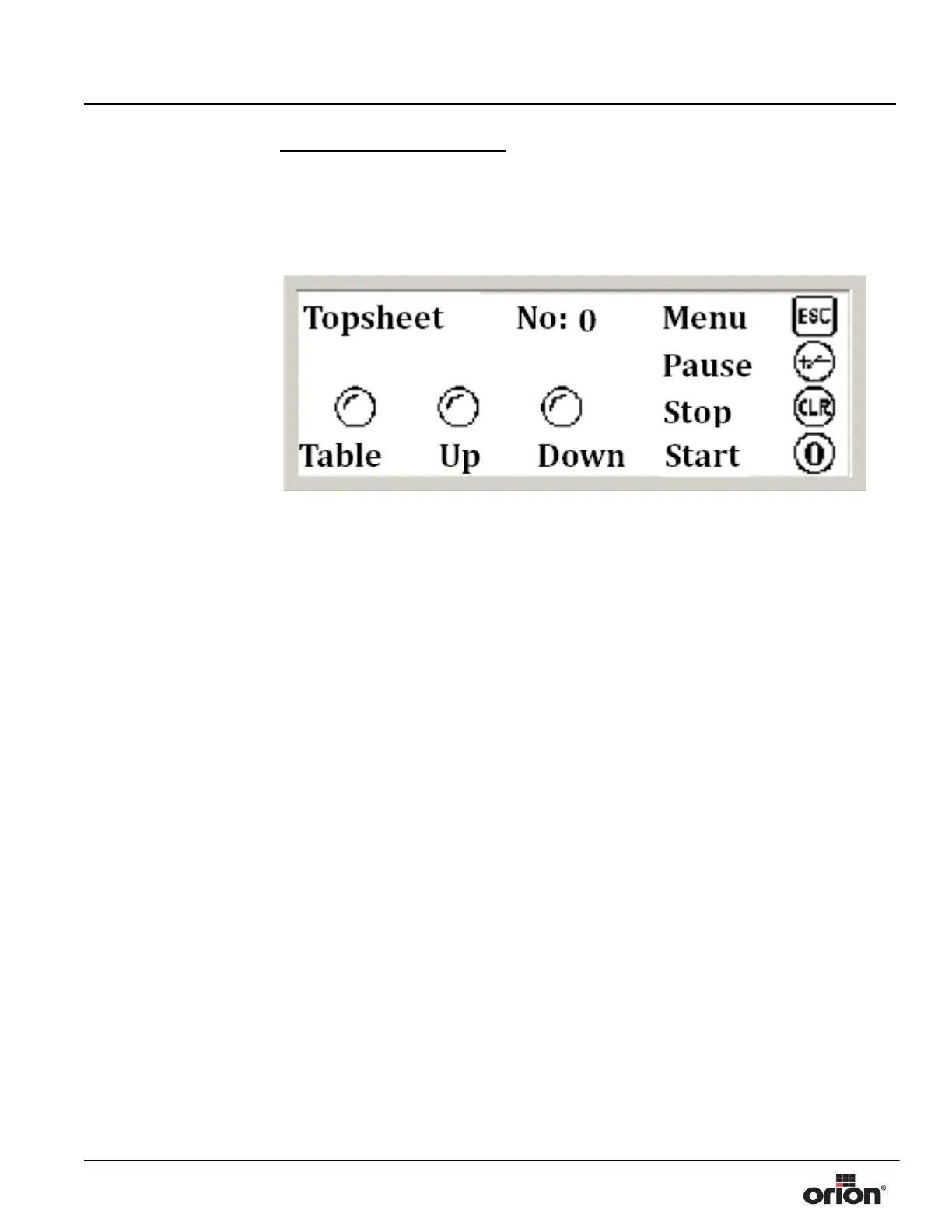

Figure 3 - 17
Top Sheet Mode
Screen
