- 20 -
During hammer mounting, the carrier should only be operated from the operator’s cab.

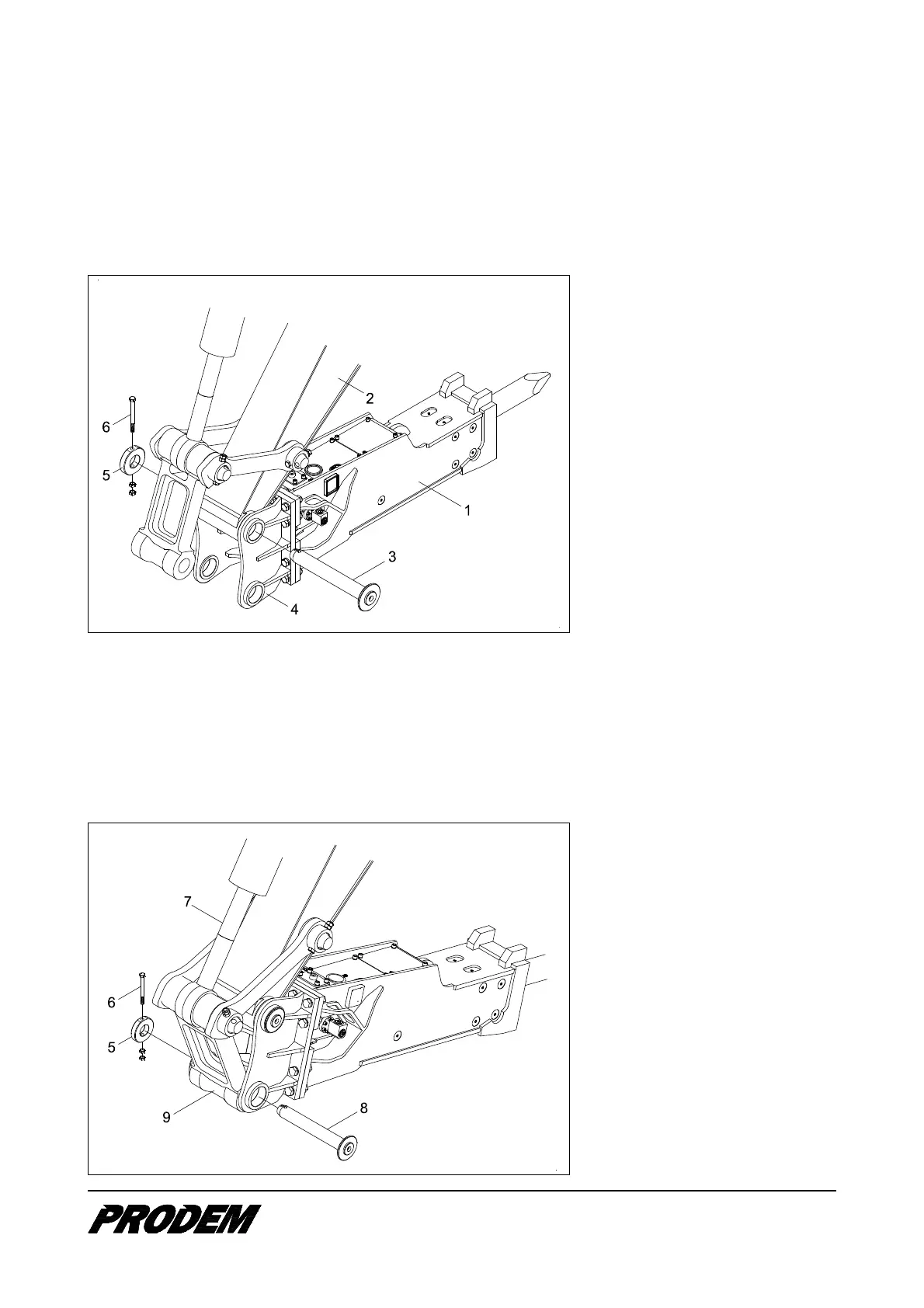

1. Following the direction of an assistant, carefully move the excavator arm (2) into the adapter (4), until the
bore in the arm is flush with those in the adapter.
2. Insert the arm pin (3).
3. Fit the stop ring (5) to the arm pin (3) and lock by using the bolt and nuts (6).
1. Hydraulic hammer
2. Excavator arm
3. Arm pin
4. Mounting adapter
5. Stop ring
6. Bolt and nuts
4. Lift up the hammer (1) to a proper height.
5. Extend the bucket cylinder (7) until the bore in the link (9) is flush with those in the adapter (4).
6. Insert the link pin (8).
7. Fit the stop ring (5) to the bucket pin (8) and lock by using the bolt and nut (6).
8. Check there are any mechanical difficulties, slacks or incompatibility in manipulating.
5. Stop ring
6. Bolt and nuts
7. Bucket cylinder
8. Link pin
9. Link
