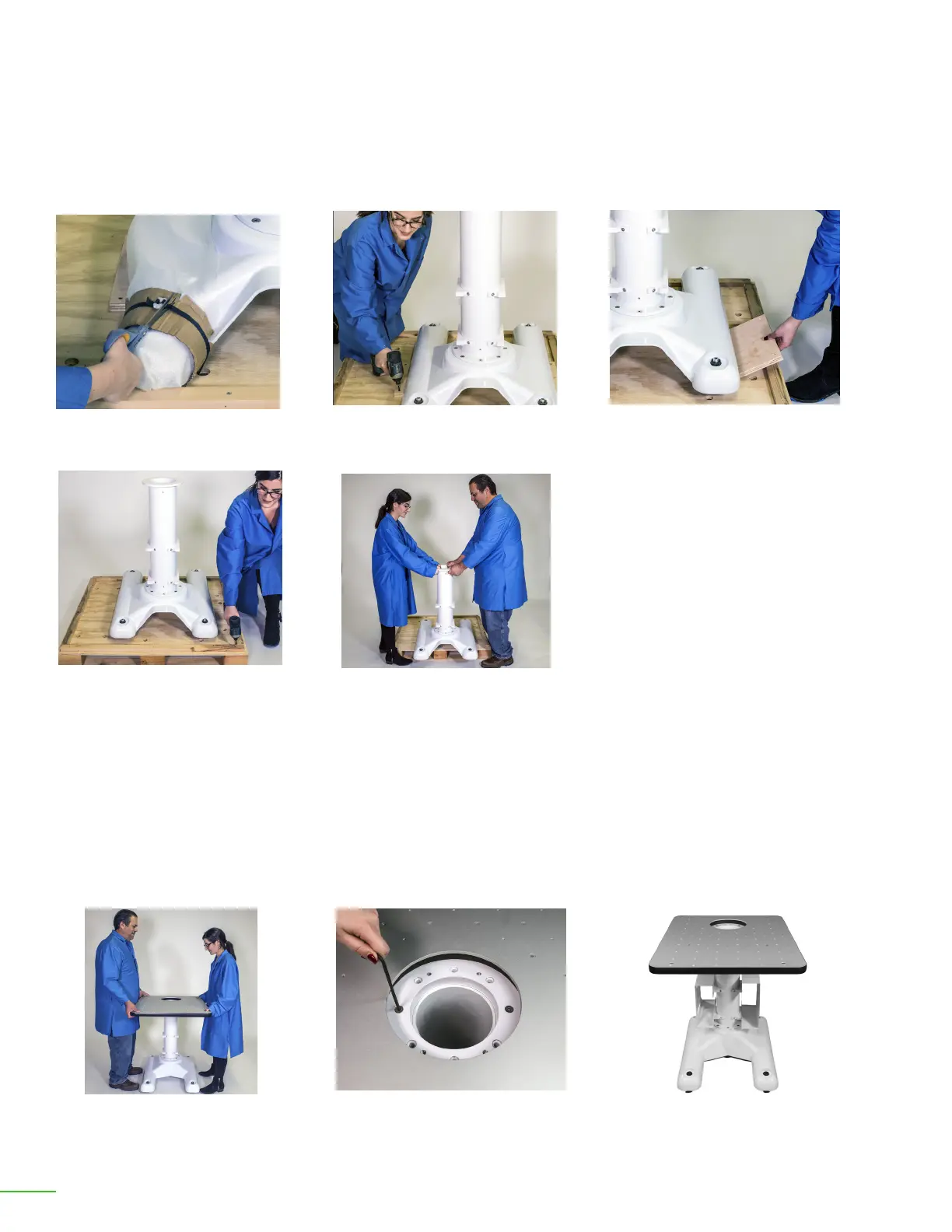

Step 3: Remove the stand from the crate. Clip the ties holding the stand down to the crate base.
Remove the wood spacers from under the sides of the stand and remove the wood strip from the
edge of the crate. Then, roll the stand o the crate.
OB7 Collaborative Robot User Manual Version 0.6
Getting Started With OB7 / 16
ASSEMBLING THE OB7 ASSEMBLY TABLE
If you have purchased the OB7 assembly table, follow these steps to assemble and install it on the
OB7 Stand.
The OB7 assembly table attaches to the top of the stand column with 4 M8 screws. Use two people to
install the assembly table on the column.
Roll stand o of crate.
Remove wood strip.
Remove screws from spacers (both
sides).
Clip tie down straps.
Use two people to install the OB7
assembly table.
Remove spacers.
Using 4 M8 screws, attach the OB7
assembly table to the top of the
stand column.
OB7 Assembly Table Installed on
Stand
