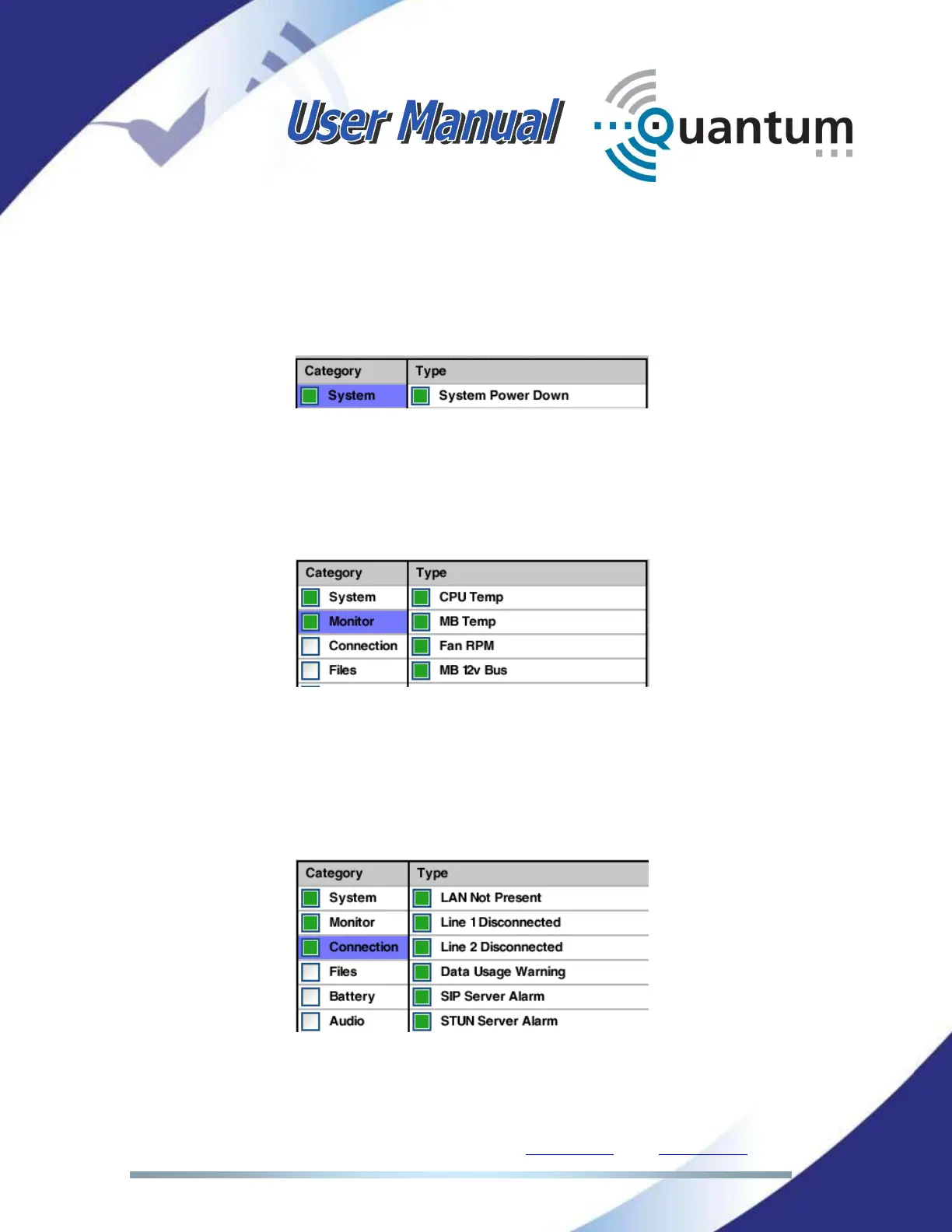

IV.5.1 Alarms definition and configuration
IV.5.1.1. System
This category of alarms is related to power problems:
 System Power Down: The codec has lost power supply. This alarm is
ALWAYS activated when the device is switched off, regardless of the
motivation. It is useful to know if the codec is switched off and for how long.
IV.5.1.2. Monitor
 CPU Temp: Active when CPU’s temperature is > 70ºC.
 MB Temp: Active when motherboards’ temperature is > 70ºC.
 Fan RPM: Active when fan’s revolutions per minute are < 1100.
 MB 12v BUS: Active when bus voltage is < 12vdc.
IV.5.1.3. Connection
 LAN Not Present:
 Line 1 Disconnected: Active whenever the line is accidentally disconnected.
If a “Fire on manually disconnected” option is selected, it will be also active
