PROEL FLASH8A V2 User Manual

6

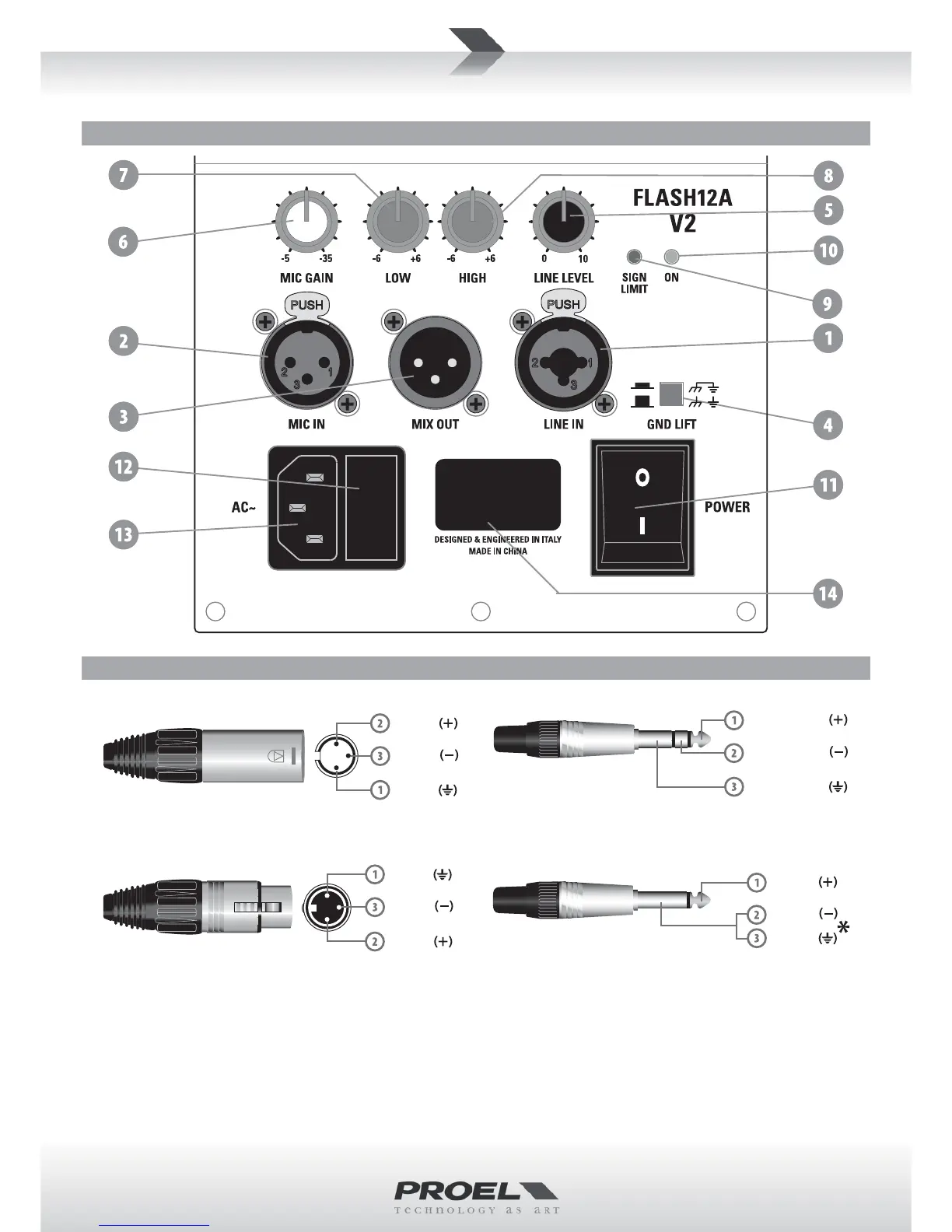

FLASH12A CONTROL PANEL (FIG.1) FLASH12A PANNELLO DI CONTROLLO (FIG.1)
FLASH12A CONNECTIONS (FIG.2) FLASH12A CONNESSIONI (FIG.2)
LINE IN (ingresso)
Jack (bilanciato)
LINE IN
Jack (balanced)
sleeve - ground
tip - hot
ring - cold
LINE / MIC IN (ingresso)
XLR bilanciato maschio
LINE / MIC IN
Balanced male XLR
ground
hot
cold
LINE IN (ingresso)
Jack (sbilanciato)
LINE IN
Jack (unbalanced)
ground
tip - hot
cold
*nota: connettere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground
to make cable from balanced to unbalanced
MIX OUT (uscita)
XLR bilanciato femmina
MIX OUT (output)
Balanced female XLR
ground
hot
cold

PROEL FLASH8A V2 Specifications

General

Brand	PROEL
Model	FLASH8A V2
Category	Speakers
Language	English
