3. Attach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
95
8
10
3
96
89
Plastic Tie
87

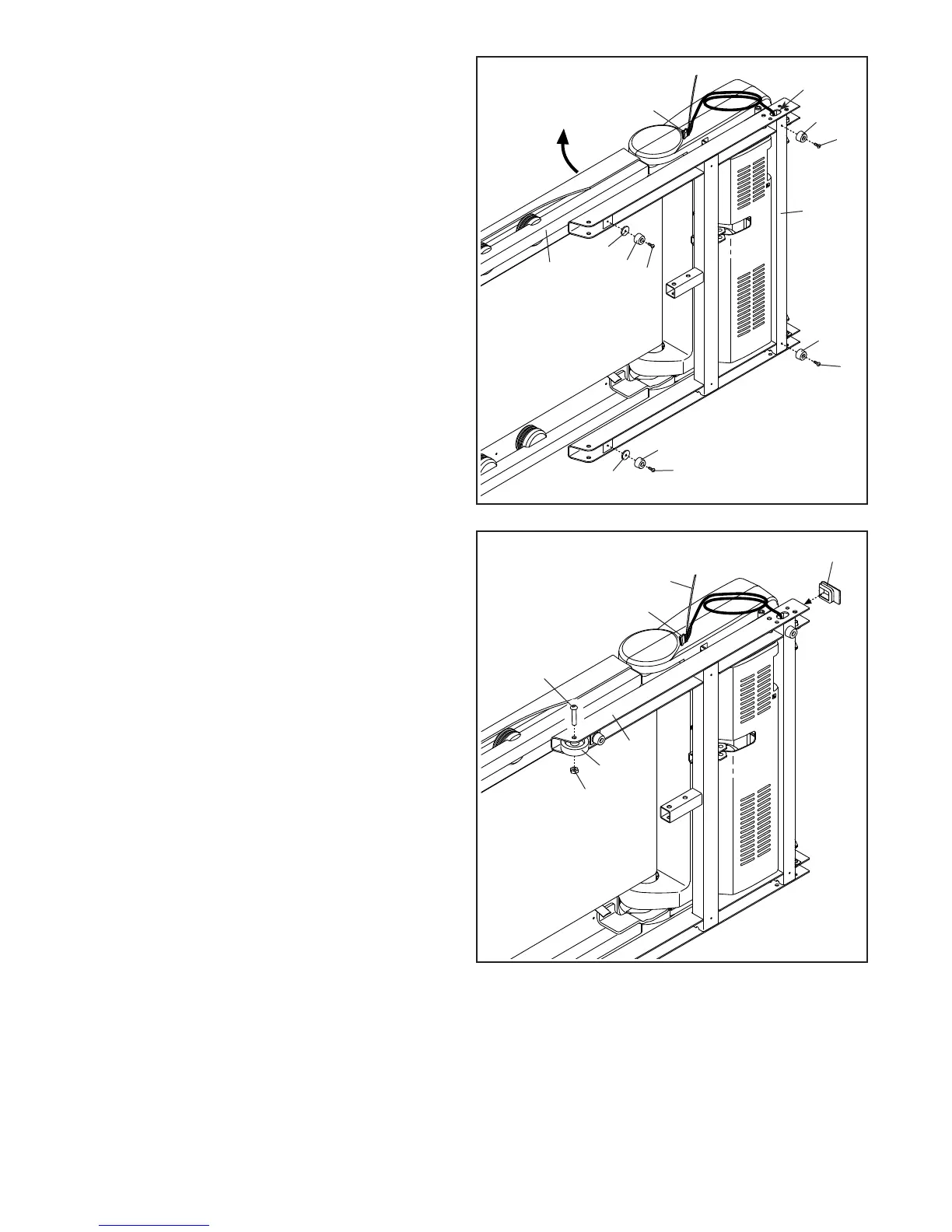

2. With the help of a second person, carefully tip the
treadmill onto its left side. Partially fold the Frame
(55) so that the treadmill is more stable; do not
fully fold the Frame yet.
Cut the shipping tie securing the Upright Wire
(87) to the Base (95). Next, locate a plastic tie in
the indicated hole in the Base, and use the tie to
pull the Upright Wire out of the hole.
Attach two Base Feet (90) to the Base (95) in the
locations shown with two #8 x 1" Tek Screws (5)
and two Base Foot Spacers (94).
Then, attach the other two Base Feet (90) with
two #8 x 1" Tek Screws (5).
2
95
5
55
90
90
5
5
5
90
94
90
87
Hole
94
