5. Hold the Right Upright (85) against the Base
(95). Be careful not to pinch the Upright
Wire (87). Insert two 3/8" x 4" Screws (7) with
two 3/8" Star Washers (11) and a 3/8" x 1 1/2"
Screw (14) with a 3/8" Star Washer (11) into the
Right Upright.
Partially tighten the 3/8" x 4" Screws (7) until
the heads of the Screws touch the Right Upright
(85); do not fully tighten the Screws yet.
Partially tighten the 3/8" x 1 1/2" Screw (14).
95
85
87
11
11
14
7
5

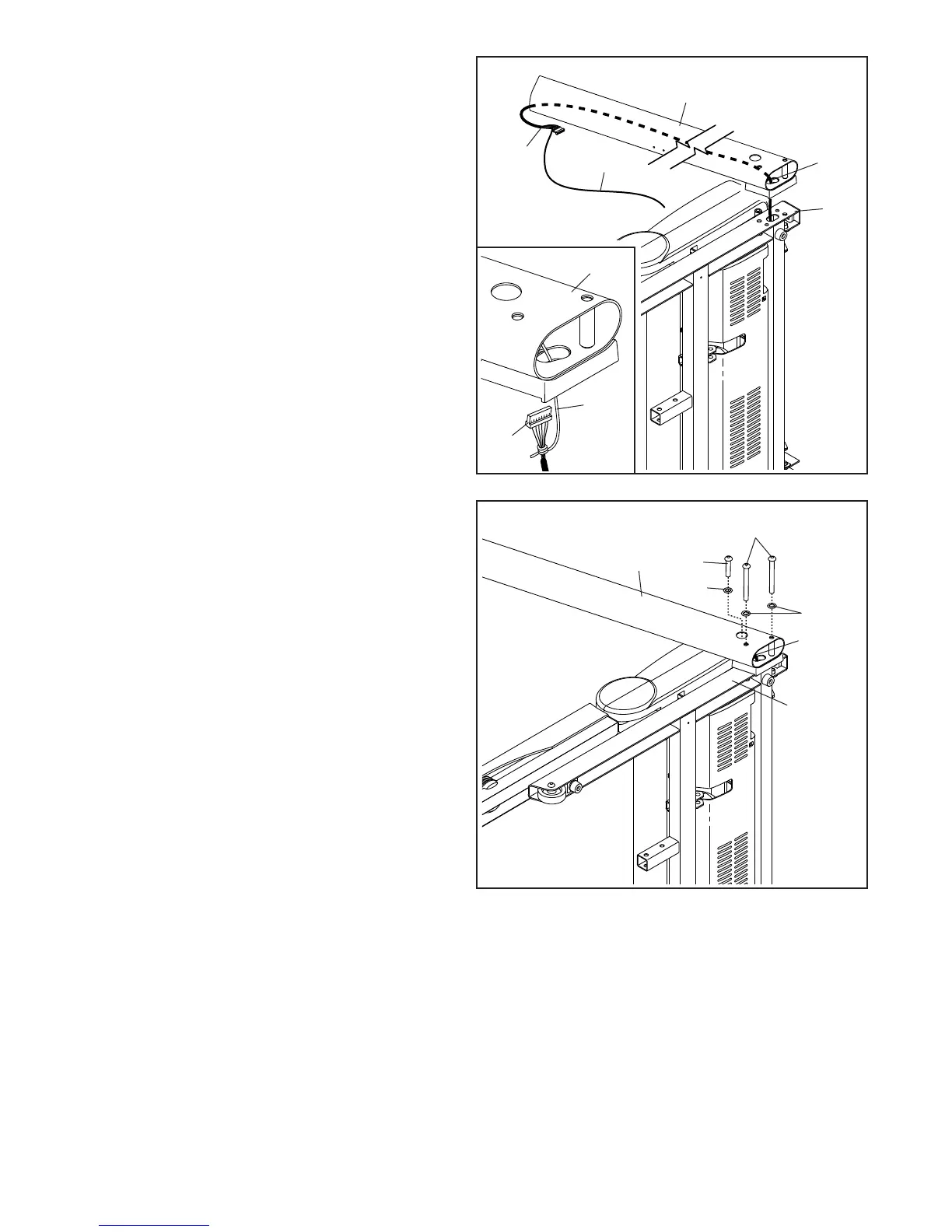

4. Identify the Right Upright (85), which is marked
“Right.” Hold the Right Upright near the Base
(95) as shown.
See the inset drawing. Tie the wire tie in the
Right Upright (85) securely around the end of
the Upright Wire (87). Then, pull the other end
of the wire tie until the Upright Wire is routed
through the Right Upright.
Wire Tie
87
85
95
87
4
Wire
Tie
85
87
