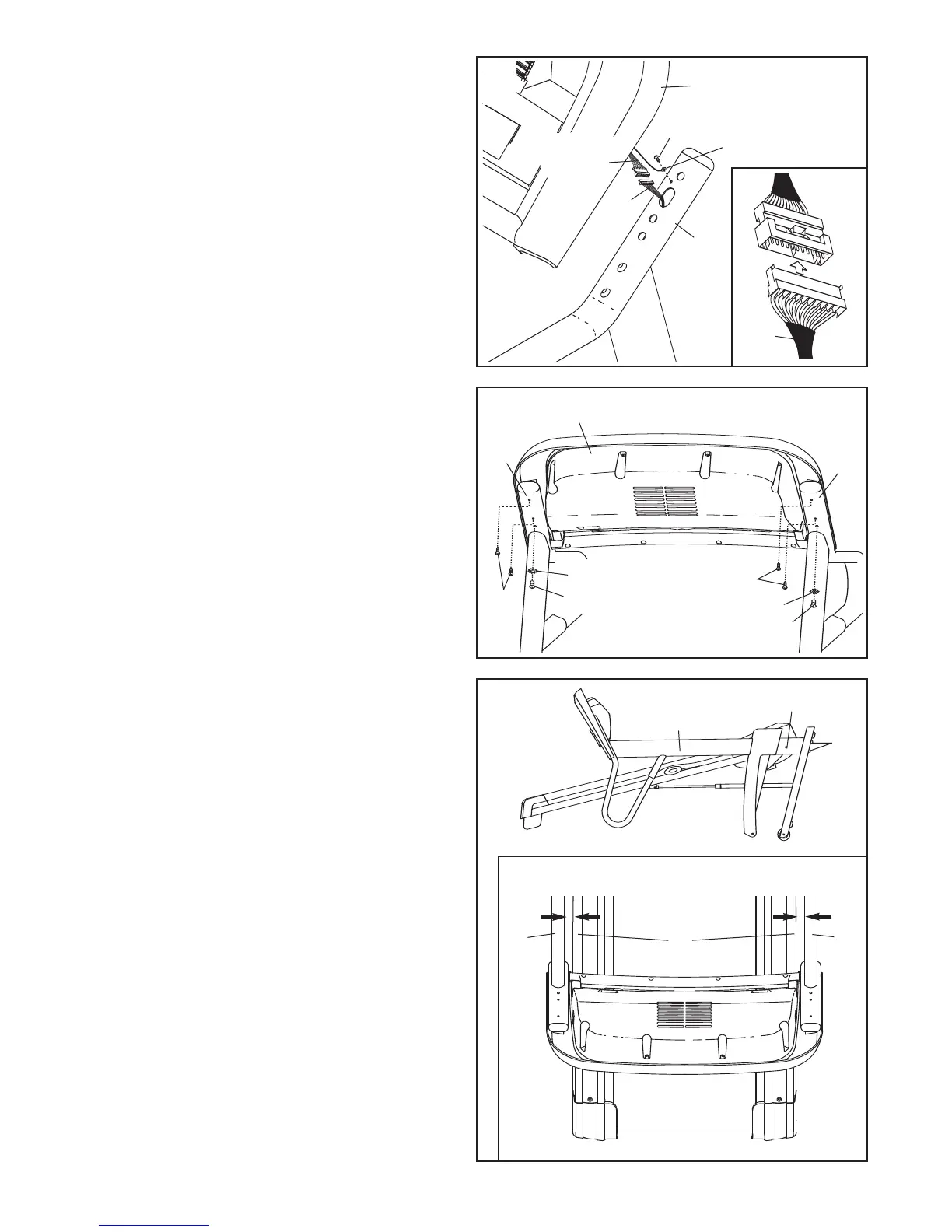

12. Lower the Uprights (31, 36) as shown.
See the inset drawing. Push the Uprights (31,
36) sideways so that the treadmill Frame (74) is
centered between the Uprights.
Firmly tighten the Upright Bolts (40) and the
Frame Bolts (32) on each side of the treadmill.
Do not overtighten the Frame Bolts.
31
31, 36
32
74
36
View From Above
Side View
12
40
28
11
10. Attach the ground wire on the Console Base (26)
to the Right Handrail (11) with a Silver Ground
S
crew (27).
C
onnect the wire harness on the Console Base
(26) to the Upright Wire (28) as shown in the
inset drawing. Important: If the connectors are
oriented correctly, they will slide together
easily and snap into place. If the connectors
are not oriented correctly, the console may
be damaged when the power is turned on.
Insert the connectors and excess wire into the
Console Base (26).
27
2
6
Ground
Wire
28
Wire
Harness
10
22
11. Attach the Console Base (26) to the Handrails
(11, 18) with four 3/4" Screws (2); do not
tighten the Screws yet. Next, tighten two
Console Bolts (22) with 1/4" Star Washers (21)
into the Handrails and the Console Base.
Then,
tighten the four Screws.
2
21
2
11
18
11
26
Front View
22
21
To Next Page
