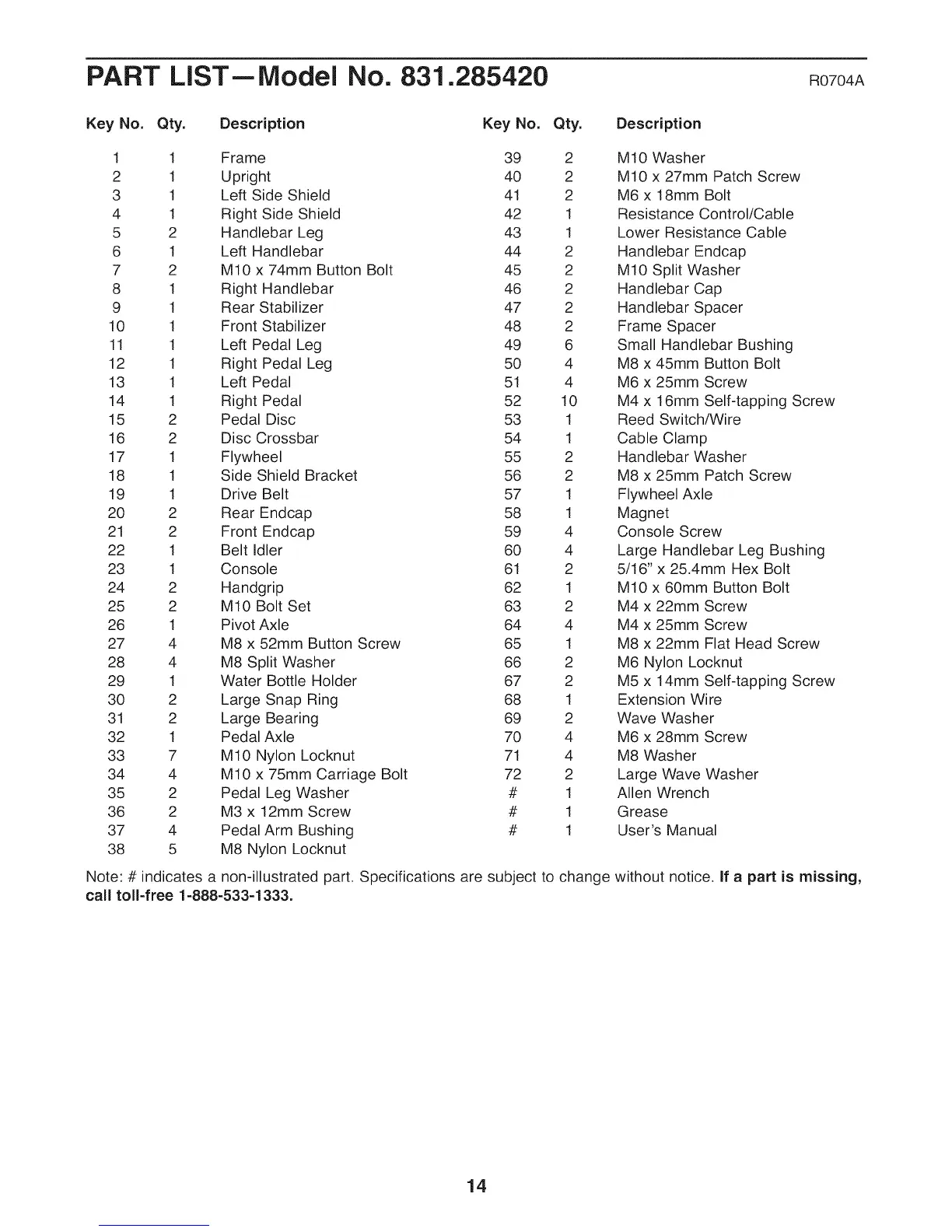

PART LISTmlVlodel No. 831.285420 R0704A
Key No. Qty. Description Key No. Qty.
1 1 Frame 39 2
2 1 Upright 40 2
3 1 Left Side Shield 41 2
4 1 Right Side Shield 42 1
5 2 Handlebar Leg 43 1
6 1 Left Handlebar 44 2
7 2 M10 x 74mm Button Bolt 45 2
8 1 Right Handlebar 46 2
9 1 Rear Stabilizer 47 2
10 1 Front Stabilizer 48 2
11 1 Left Pedal Leg 49 6
12 1 Right Pedal Leg 50 4
13 1 Left Pedal 51 4
14 1 Right Pedal 52 10
15 2 Pedal Disc 53 1
16 2 Disc Crossbar 54 1
17 1 Flywheel 55 2
18 1 Side Shield Bracket 56 2
19 1 Drive Belt 57 1
20 2 Rear Endcap 58 1
21 2 Front Endcap 59 4
22 1 Belt Idler 60 4
23 1 Console 61 2
24 2 Handgrip 62 1
25 2 M10 Bolt Set 63 2
26 1 Pivot Axle 64 4
27 4 M8 x 52mm Button Screw 65 1
28 4 M8 Split Washer 66 2
29 1 Water Bottle Holder 67 2
30 2 Large Snap Ring 68 1
31 2 Large Bearing 69 2
32 1 Pedal Axle 70 4
33 7 M10 Nylon Locknut 71 4
34 4 M10 x 75mm Carriage Bolt 72 2
35 2 Pedal Leg Washer # 1
36 2 M3 x 12mm Screw # 1
37 4 Pedal Arm Bushing # 1
38 5 M8 Nylon Locknut
Note: # indicates a non-illustrated part. Specifications are subject to change
call toll-free 1-888-533-1333.
Description
M10 Washer
M10 x 27mm Patch Screw
M6 x 18mm Bolt
Resistance Control/Cable
Lower Resistance Cable
Handlebar Endcap
M10 Split Washer
Handlebar Cap
Handlebar Spacer
Frame Spacer
Small Handlebar Bushing
M8 x 45mm Button Bolt
M6 x 25mm Screw
M4 x 16mm Self-tapping Screw
Reed Switch/Wire
Cable Clamp
Handlebar Washer
M8 x 25mm Patch Screw
Flywheel Axle
Magnet
Console Screw
Large Handlebar Leg Bushing
5/16" x 25.4mm Hex Bolt
M10 x 60mm Button Bolt
M4 x 22mm Screw
M4 x 25mm Screw
M8 x 22mm Flat Head Screw
M6 Nylon Locknut
M5 x 14mm Self-tapping Screw
Extension Wire
Wave Washer
M6 x 28mm Screw
M8 Washer
Large Wave Washer
Allen Wrench
Grease
User's Manual
without notice, if a part is missing,
14
