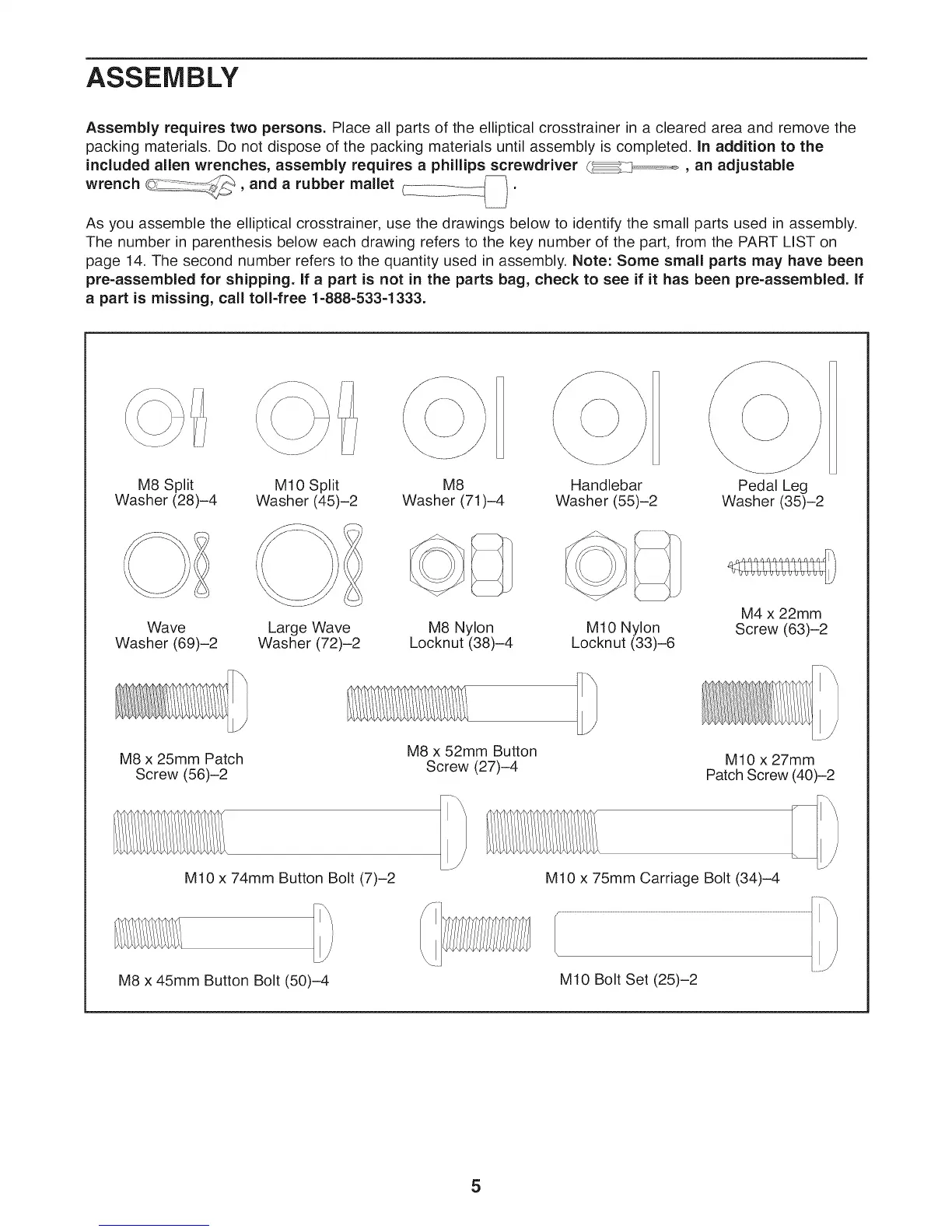

ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver (_C-3---_- _, an adjustable
wrench , and a rubber mallet I _ •
As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 14, The second number refers to the quantity used in assembly, Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled. If
a part is missing, call toll-free 1-888-533-1333.
\
M8 Split M10 Split M8 Handlebar Pedal Leg
Washer (28)-4 Washer (45)-2 Washer (71)-4 Washer (55)-2 Washer (35)-2
Wave Large Wave M8 Nylon M10 Nylon
Washer (69)-2 Washer (72)-2 Locknut (38)-4 Locknut (33)-6
M4 x 22mm
Screw (63)-2
M8 x 25mm Patch
Screw (56)-2
M8 x 52mm Button
Screw (27)-4
M10 x 27mm
Patch Screw (40)-2
L
M10 x 74mm Button Bolt (7)-2 M10 x 75mm Carriage Bolt (34)-4
M8 x 45mm Button Bolt (50)-4 M10 Bolt Set (25)-2
5
