10
9

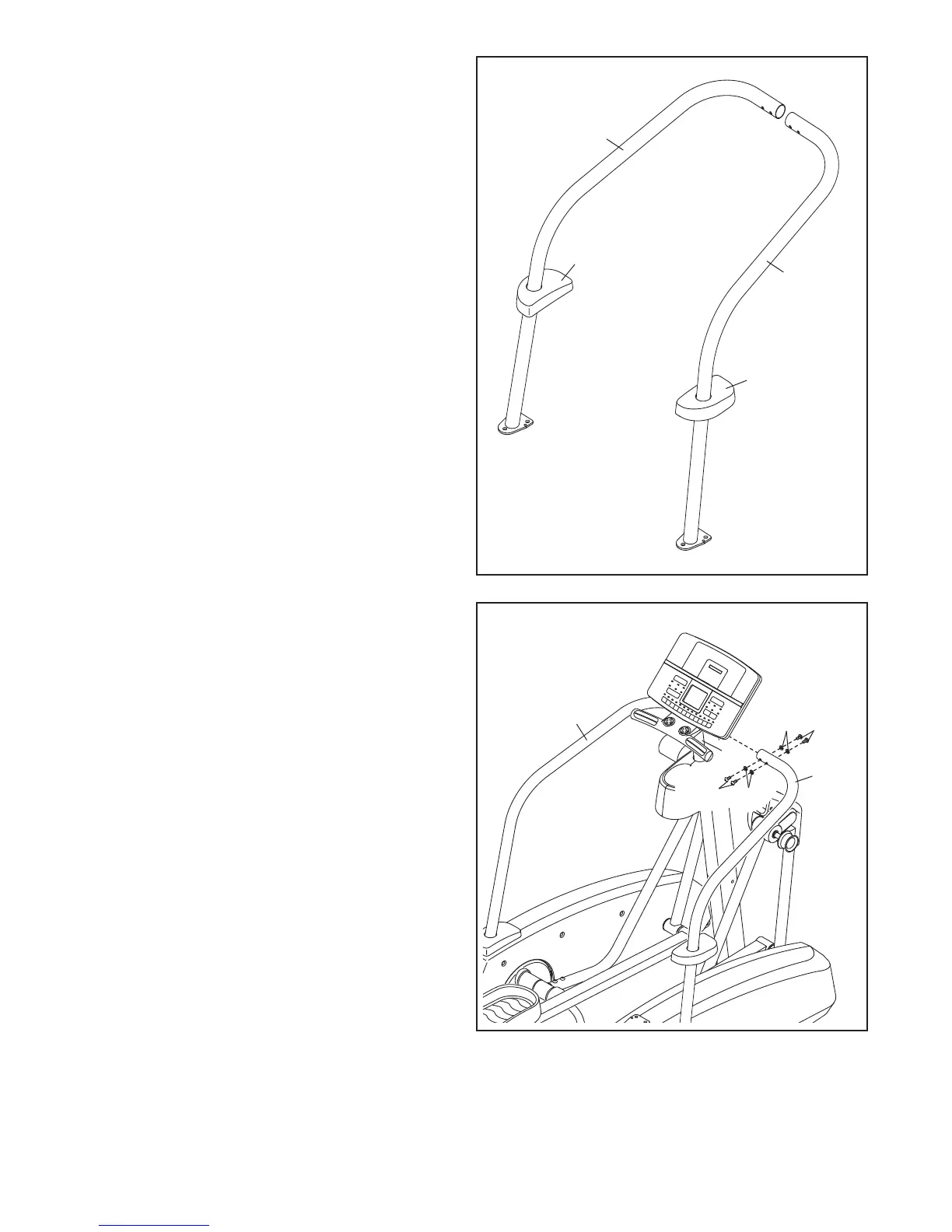

9. Identify the Left Handrail (4), which is marked
with an “L” on the underside. Then, identify the
Right Handrail (5), which is marked with an “R”
o
n the underside. Orient the Left and Right
Handrails as shown.
Slide the Left Rail Cover (6) onto the Left
Handrail (4). Then, slide the Right Rail Cover
(7) onto the Right Handrail (5).
4
5
7
6
10. Attach the Right Handrail (5) to the Upright (2)
with four M8 x 13mm Patch Screws (62) and
four M8 Split Washers (80). Tip: Do not tighten
the Patch Screws yet.
Attach the Left Handrail (4) in the same way.
10
62
2
5
4
80
80
62
To Next Page
