5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
A
ssembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed. In addition to the included hex
keys, assembly requires a Phillips screwdriver , an adjustable wrench ,
and a rubber mallet .

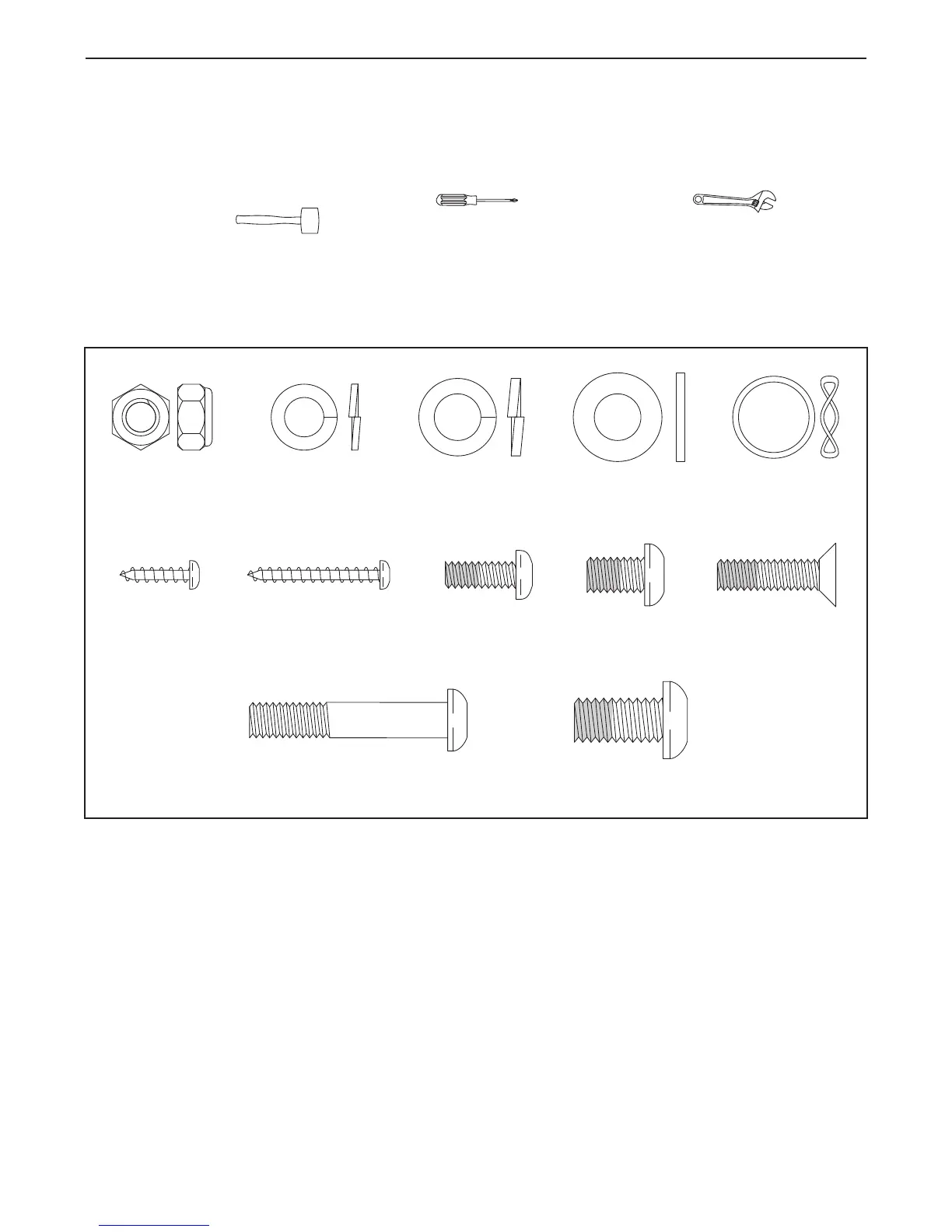

As you assemble the elliptical, use the drawings below to identify small parts. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check
to see if it has been preassembled.
M8 Locknut
(63)–4
23mm x 19mm
Wave Washer
(76)–4
M10 x 19mm Patch
Screw (61)–14
M8 x 45mm Button
Bolt (70)–4
M10 Split
Washer (79)–10
M8 Split
Washer (80)–8
M10 Washer
(64)–4
M6 x 13mm
Patch Screw
(78)–8
M8 x 13mm
Patch Screw
(62)–8
M4 x 30mm
Screw (74)–4
M4 x 16mm
Screw (67)–12
M8 x 25mm Flat
Patch Screw
(68)–6
