Inspect and tighten all parts of the elliptical regularly.
R
eplace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
t
o the console, keep liquids away from the con-
sole and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip pulse sensor, or if the displayed
heart rate appears to be too high or too low, see step
6 on page 18.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
see HOW TO LEVEL THE ELLIPTICAL on page 12.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. First, remove all of
the screws from the left outer and inner shields; there
a
re two sizes of screws in the left outer and inner
shields—note which size of screw you remove
from each hole. Then, gently remove the left outer
shield.

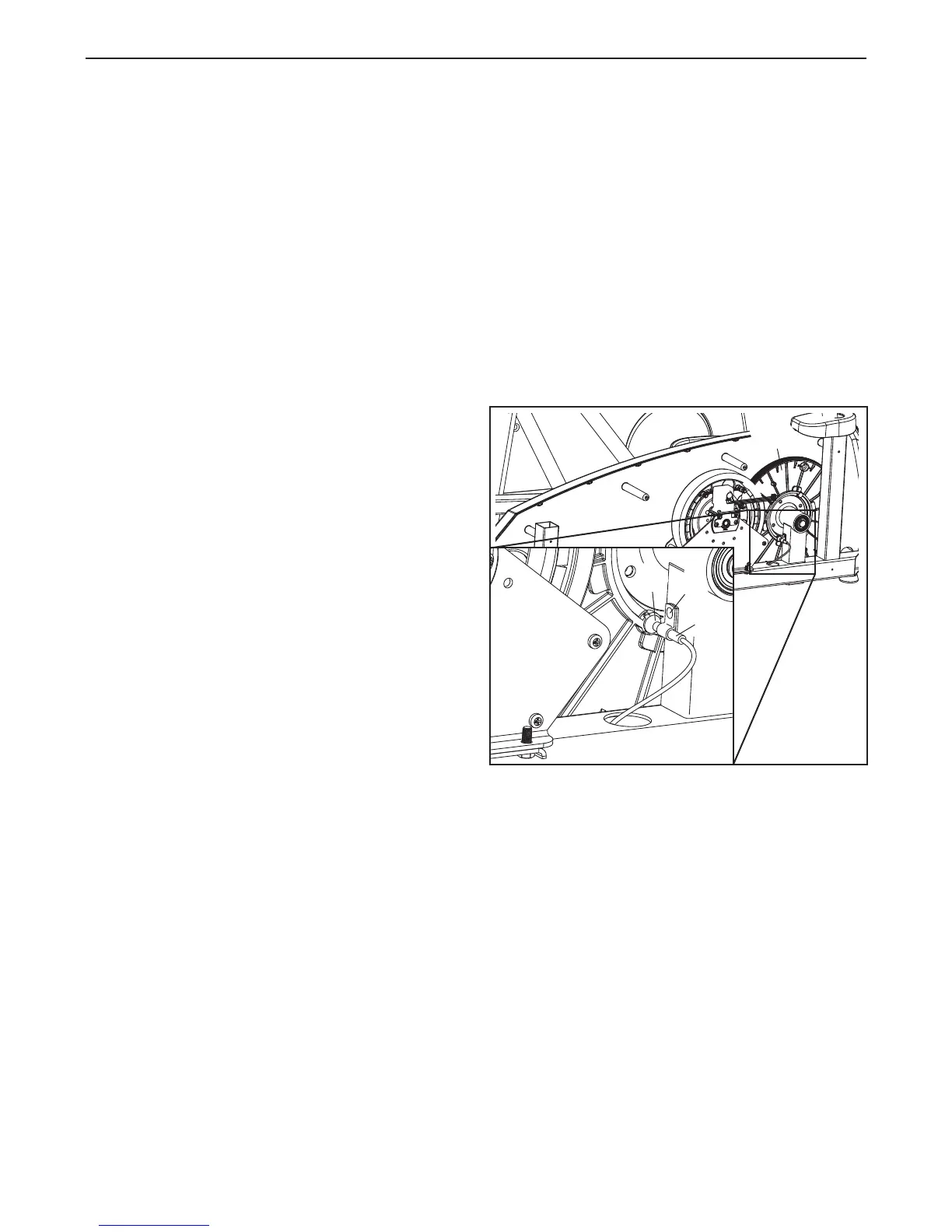

Next, locate the Reed Switch (86). Turn the Pulley
(53) until a Magnet (88) is aligned with the Reed
Switch. Loosen, but do not remove, the indicated M4 x
16mm Screw (67).
Slide the Reed Switch (86) slightly closer to or away
from the Magnet (88), and then retighten the M4 x
16mm Screw (67). Rock the Pulley (53) forward and
backward just enough that the Magnet passes the
Reed Switch repeatedly. Repeat until the console dis-
plays correct feedback.
When the reed switch is correctly adjusted, reattach
the left outer and inner shields. Note: If you have
questions regarding which screw should be in which
hole, see EXPLODED DRAWING A on page 25 and
the PART LIST on page 24.
22
MAINTENANCE AND TROUBLESHOOTING
53
88
67
86
