9

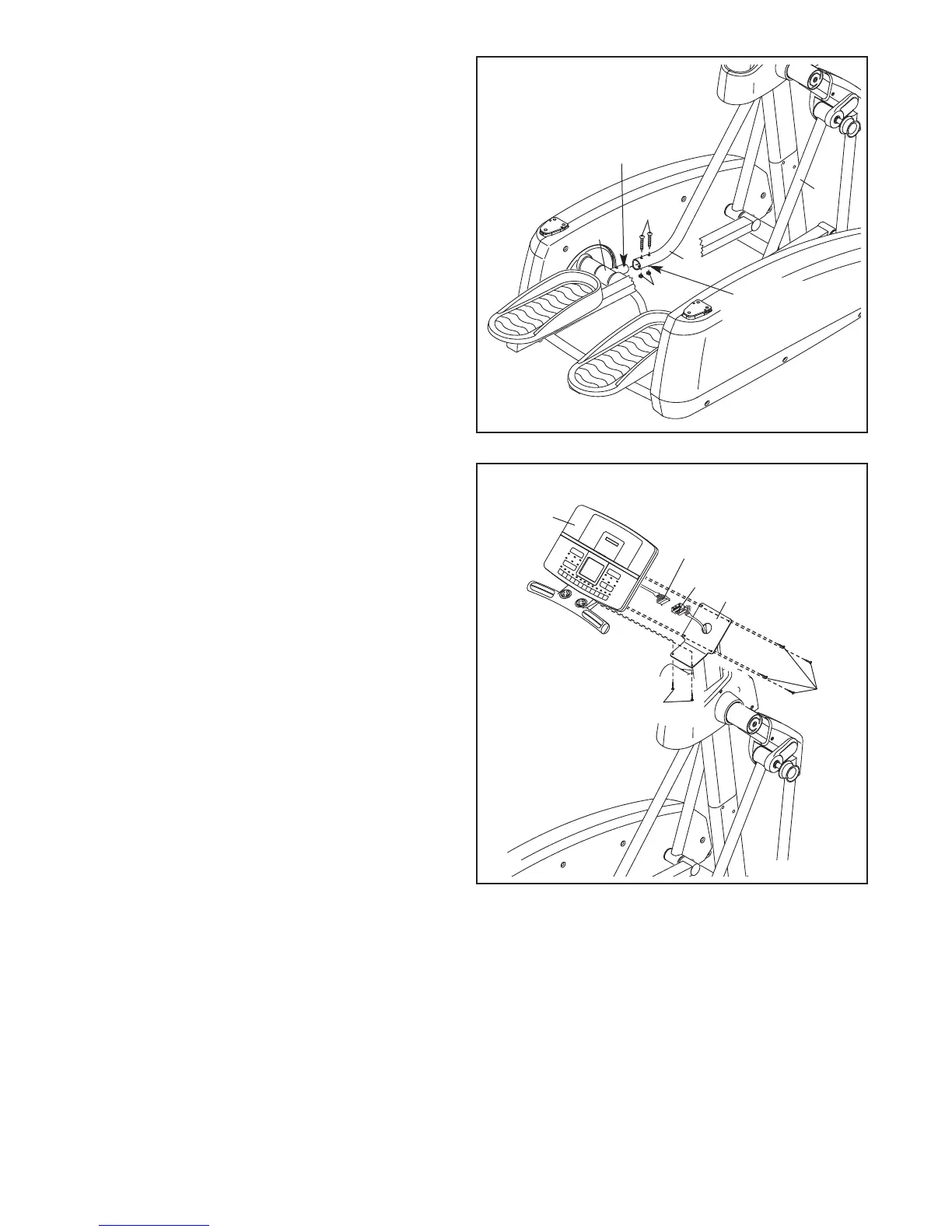

7. Apply a small amount of grease to the axle of
t
he left Pedal Arm Bracket (43). Attach the left
Pedal Leg (8) to the left Pedal Arm Bracket with
two M8 x 45mm Button Bolts (70) and two M8
Locknuts (63). Make sure that the Locknuts
are in the hexagonal holes.
A
ttach the right Pedal Leg (8) in the same
way.
7
43
7
0
63
Grease
8
8. While a second person holds the Console (3)
near the Upright (2), connect the console wire
to the Upper Wire Harness (81).
Tip: Avoid pinching the wires. Attach the
Console (3) to the Upright (2) with six M4 x
16mm Screws (67).
8
3
2
Avoid pinching
the wires
Console Wire
81
67
67
Hexagonal
Holes
8
To Next Page
