6

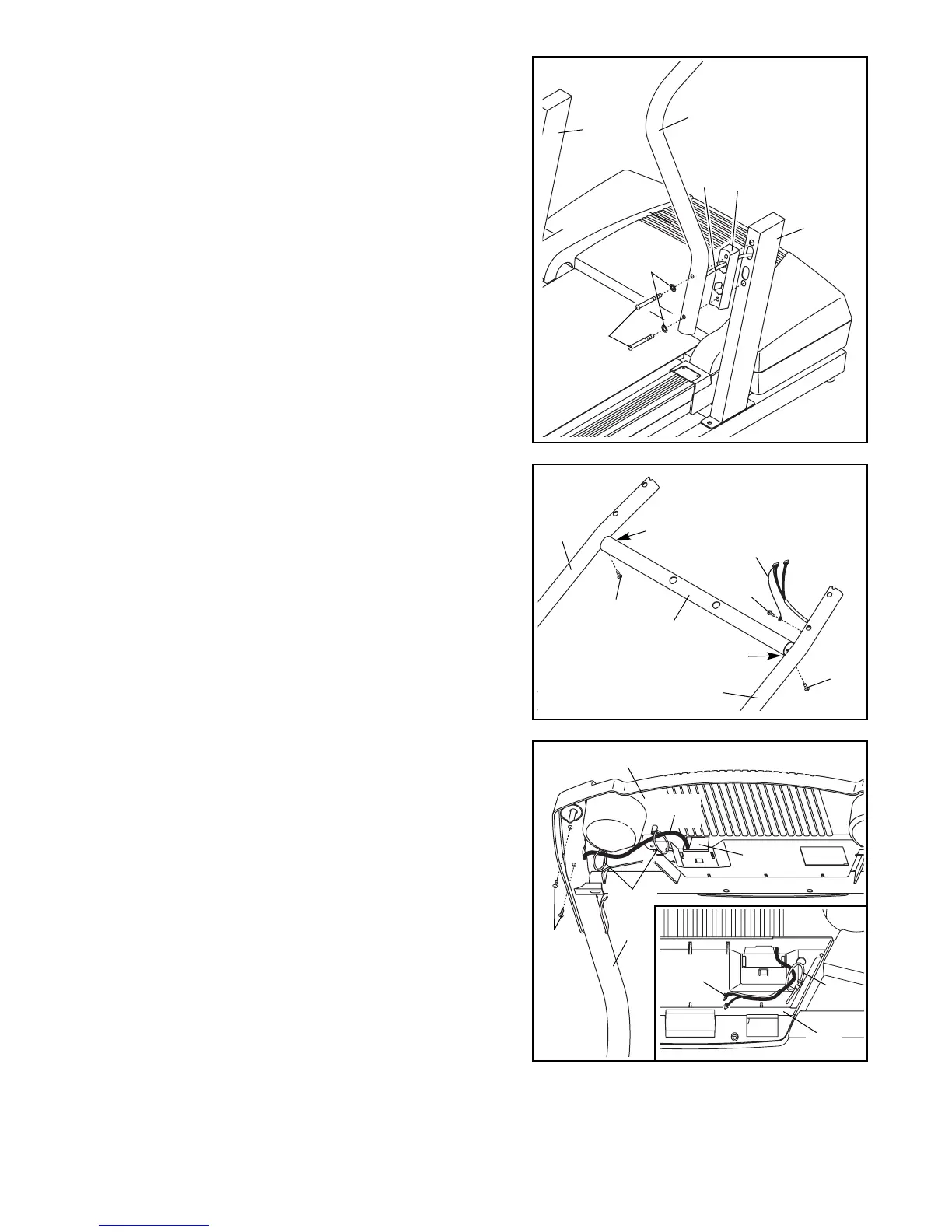

3. Orient a Handrail Spacer (106) so that the arrow be-
tween the two holes points upward. Thread the Wire
Harness (42) through the upper hole in the Handrail
Spacer as shown. Identify the Right Handrail (72), which
has a large hole in the side near the upper end. Insert
the Wire Harness into the Right Handrail and out of the
large hole. If necessary, use needlenose pliers to pull the
Wire Harness out of the hole.
Hold the Handrail Spacer (106) and the Right Handrail
(72) against the right Upright (73). Attach the Right
Handrail and the Handrail Spacer with two 3” Handrail
Bolts (61) and two 5/16” Star Washers (63) as shown.
Do not tighten the Handrail Bolts yet.
Attach the Left Handrail (not shown) to the Left Upright
(73) as described above. Note: There is not a wire har-
ness in the Left Upright.
4. Set the Crossbar (40) on the brackets on the Handrails
(71, 72). Attach the Crossbar with two Crossbar Screws
(39).
Do not tighten the Crossbar Screws yet.
Attach the end of the ground wire to the small hole in the
side of the Right Handrail (72) with a 1/2” Silver Screw
(49).
63
72
Ground
Wire
72
71
39
Bracket
Bracket
40
39
49
4
42
73
73
61
47
44
Ties
72
5
5. Place the Console Base (47) on the Right Handrail (72)
and the Left Handrail (not shown). Attach the Console
Base with four 3/4” Screws (2) (only two Screws are
shown).
Insert the Wire Harness (42) through the two indicated
plastic ties on the Console Base (47). Next, insert the
Wire Harness up through the opening beside the Console
Cover (44). Make sure that the Console Cover is securely
attached to the Console Base.
Refer to the inset drawing. Look at the top of the Console
Base (47). Insert the Wire Harness (42) through the
plastic tie on top of the Console Base.
42
42
Tie
47
2
106
3
To Next Page
