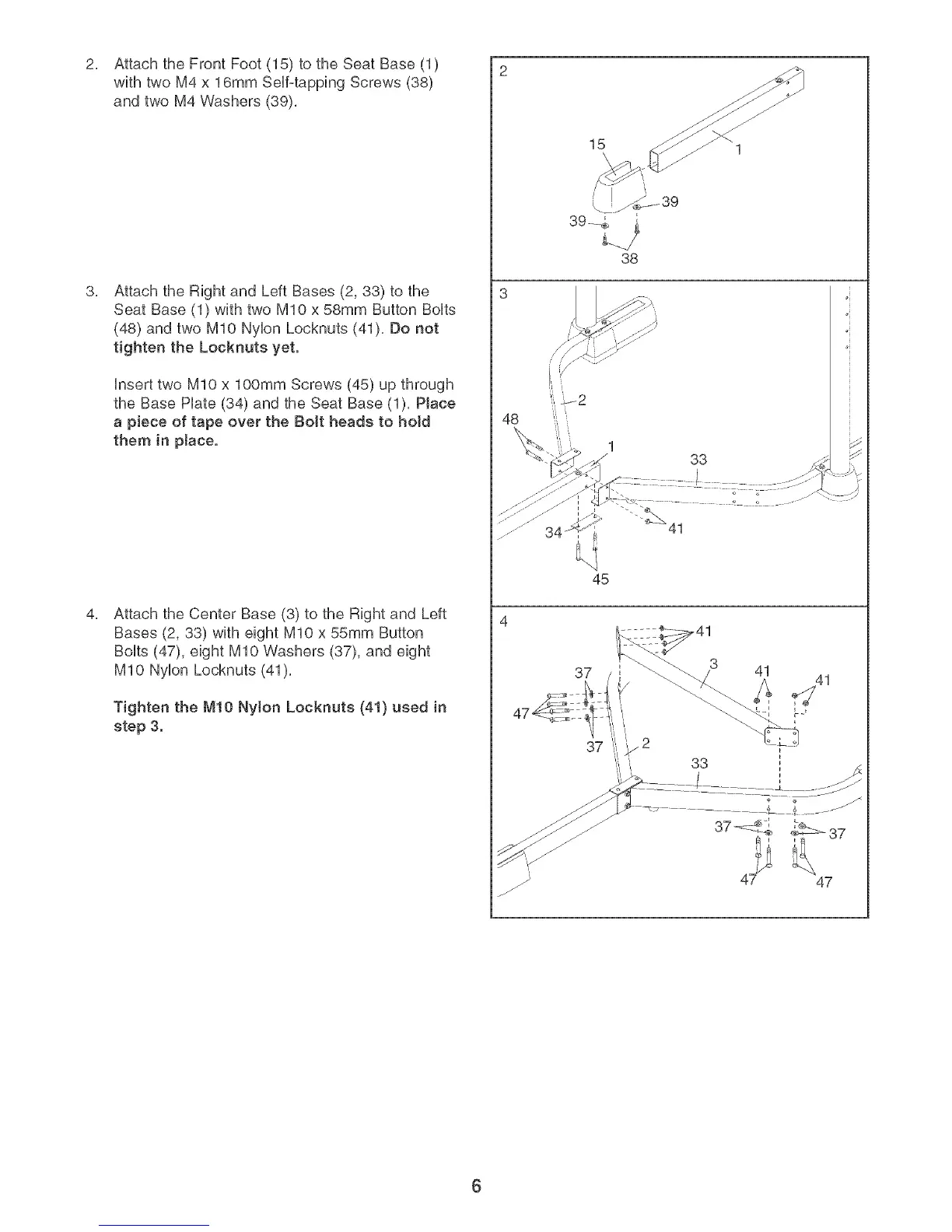

AttachtheFrontFoot(15)totheSeatBase(1)
withtwoM4x 16mmSerf-tappingScrews(38)
andtwoM4Washers(39),
AttachtheRightandLeftBases(2,33)to the
SeatBase(1)withtwoM10x58mmButtonBoUts
(48)andtwoM1ONylonLocknuts(41),Donot
tightenthe Locknutsyet.
UnserttwoM10x 1O0mmScrews(45)upthrough
theBaseHate(34)andtheSeatBase(1),Place
a pieceof tapeoverthe Boltheadsto hold
themin place.
AttachtheCenterBase(3)to theRightandLeft
Bases(2,33)witheightM10x 55mmButton
BoUts(47),eightM1OWashers(37),andeight
M1ONylonLocknuts(41),
TightentheM10NylonLocknuts (41) used in
step 3.
